58 AT-IFS802SP/POE(W)-80 User Manual
Agent Mode • : Select the SNMP version that you want to use it. And then click to
switch to the selected SNMP version mode.
Change

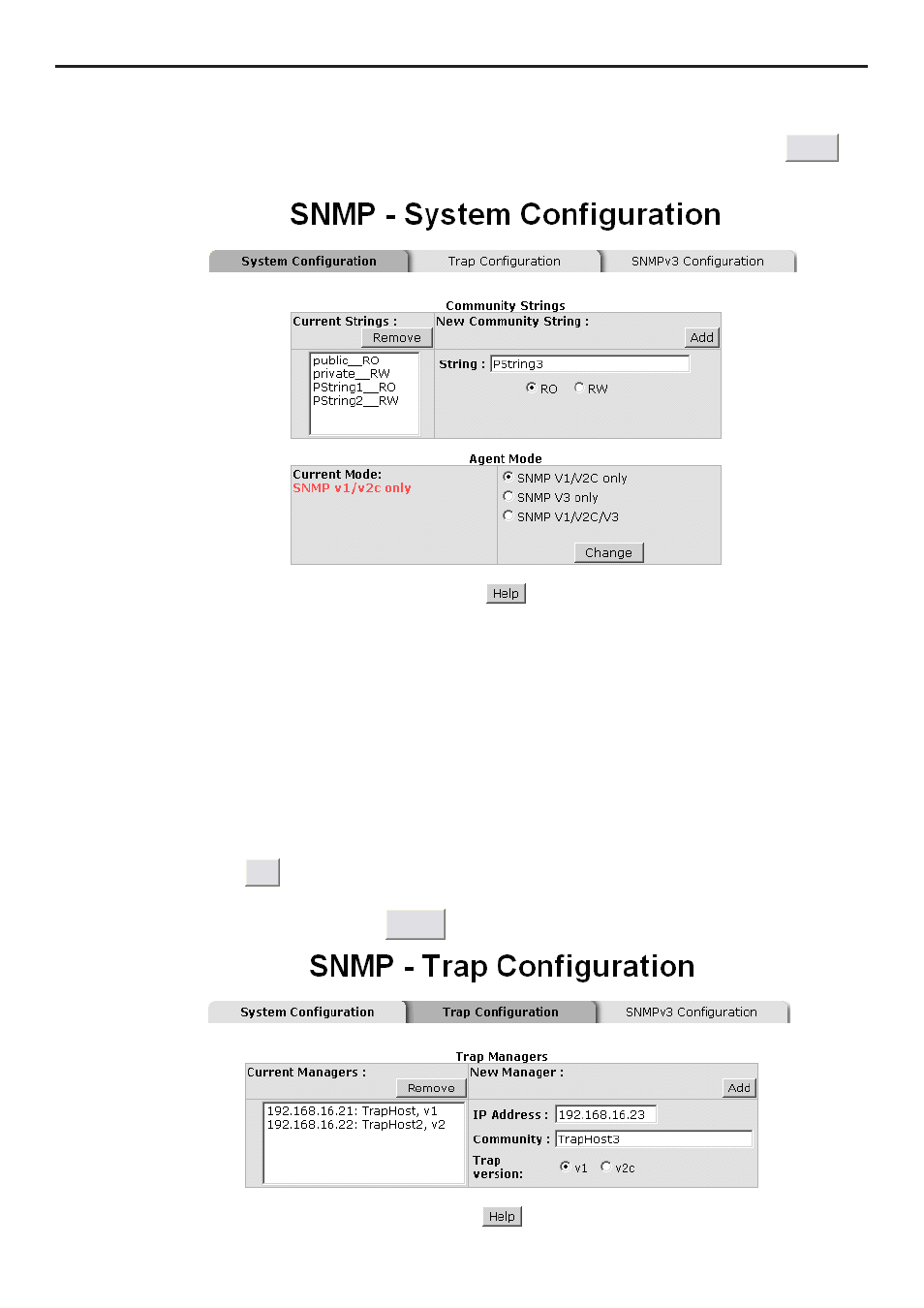

SNMP System Configuration interface
A trap manager is a management station that receives the trap messages generated by the
switch. If no trap manager is defined, no traps will be issued. To define a management station as
a trap manager, assign an IP address, enter the SNMP community strings, and select the SNMP
trap version.
IP Address • : Enter the IP address of the trap manager.
Community • : Enter the community string for the trap station.
Trap Version • : Select the SNMP trap version type—v1 or v2c.
Click . •
To remove the community string, select the community string listed in the current •
managers field and click .
6.20.2 Trap Configuration
Add
Remove
Trap Managers interface
