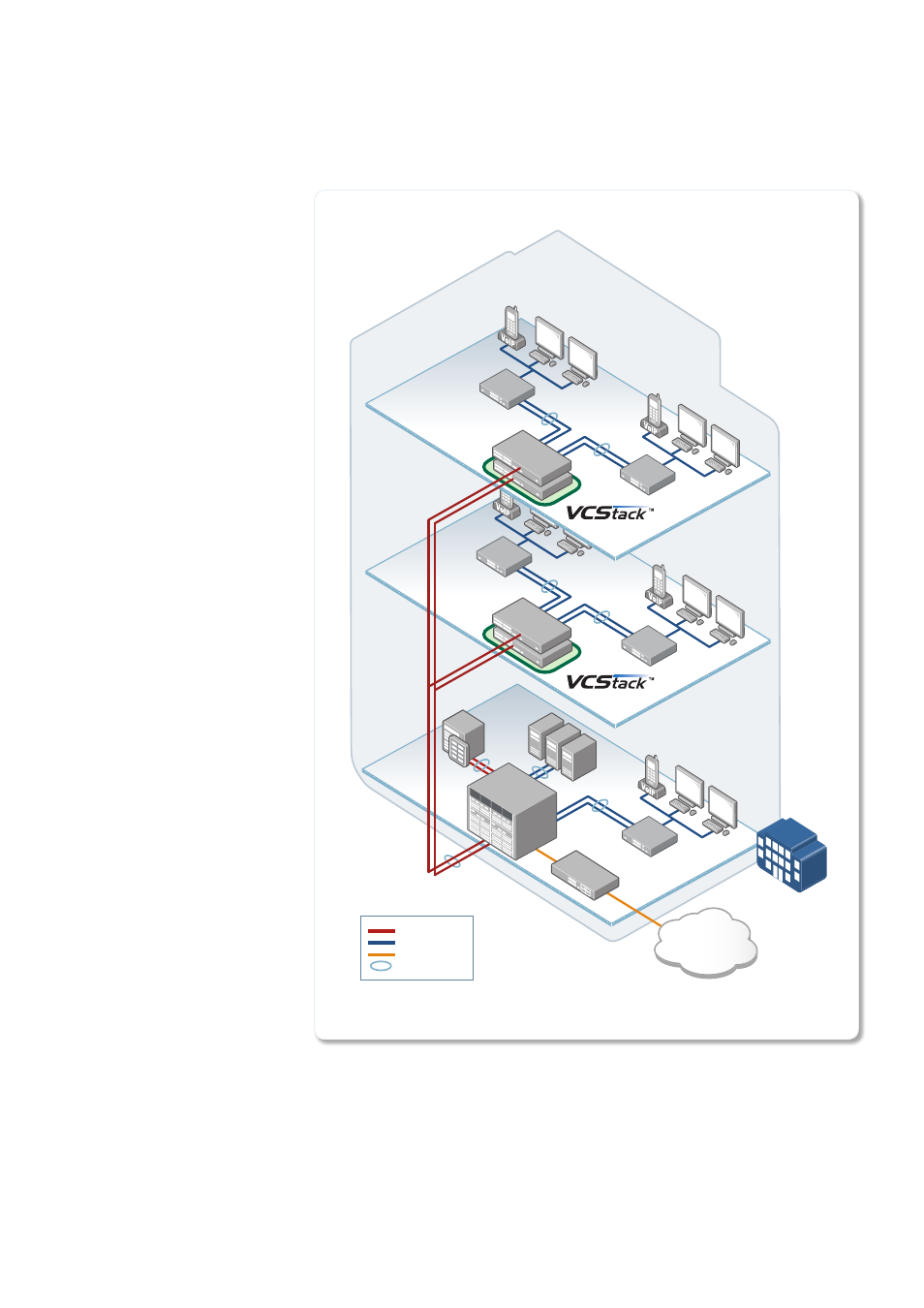

Solution 1 – SwitchBlade x8100 (CFC400) network core resiliency
The convergence of network
services in the enterprise has led to
increasing demand for high performing
networks with minimal downtime.
In this solution, a SwitchBlade x8112
with dual CFC400 control cards
provides a powerful network core
with extremely high reliability. PSU
redundancy ensures maximum uptime,
while hot-swappable PSUs, fan tray,
control and line cards allow for system
maintenance or reconfiguration with
no network interruption.
Real-time applications like VoIP and
streaming video are assured premium
service on the network, as near hitless
failover between the dual control cards
on the SwitchBlade x8112 means there
is no perceptible disruption in the case
of a problem.
Link aggregation across line cards
to servers, network storage, and
distribution switches leaves no single
point of failure in this high performing
network core.
Network Attached
Storage
Server
Farm
Internet
Route
r
x600-24
x510
SBx81
12
x600-24
x510
10 Gigabit link
1 Gigabit link
10/100 link
Link aggregation
x210
x210
x210
x210
x210
