EXD SERIES
Line Voltage Xenon Undercabinet Fixture
Models 120, 220, 320, & 420
Direct Wire
Page 2 of 2 8060524 R5
4. Hardwire Installation Completion

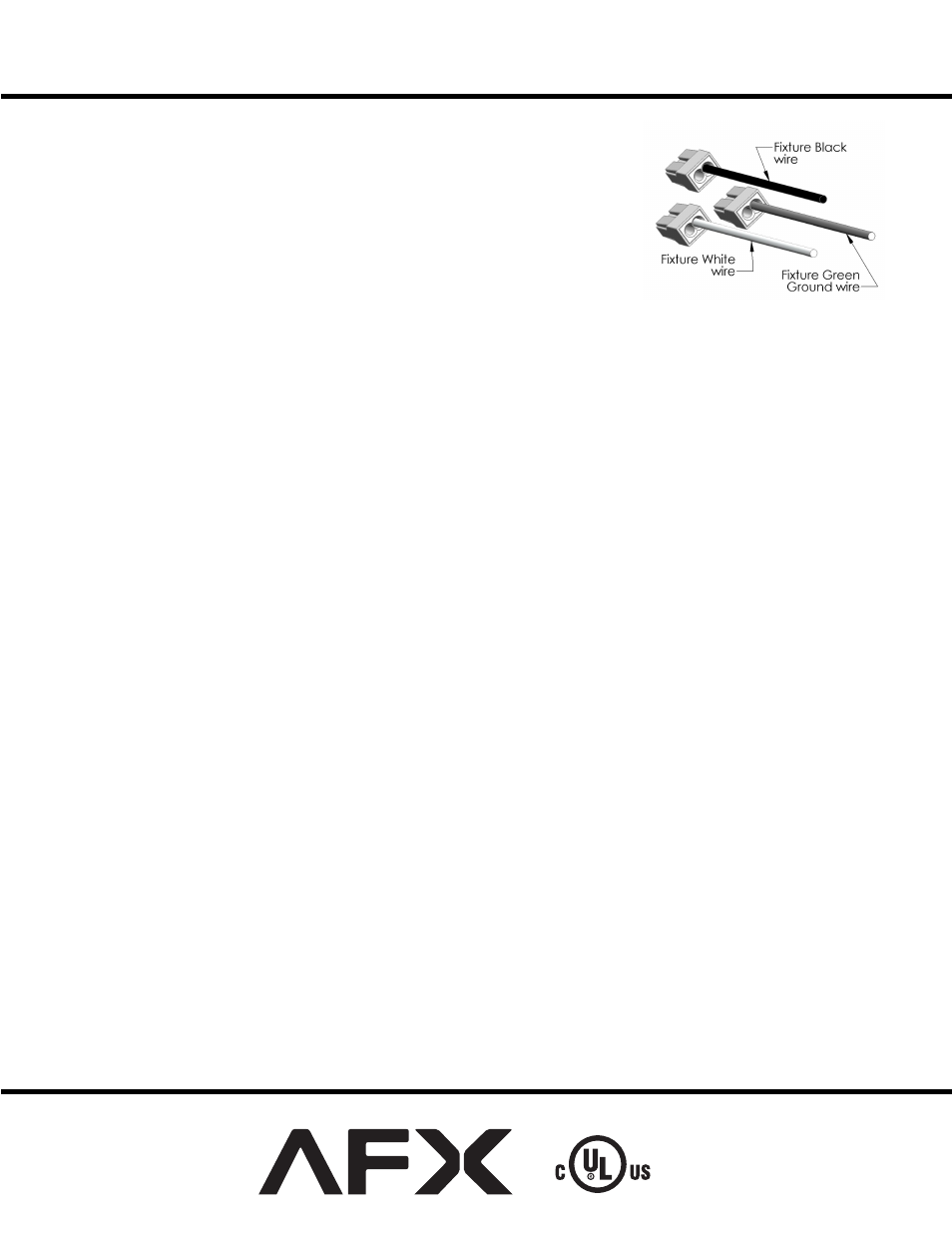

A. Connect the Green ground input supply wire to the fixture Green ground wire. Do this by
inserting it into the open hole in the push-in wire connector (included) that is attached to the
Green ground wire in the fixture.
B. Connect the White input supply wire to the fixture White wire. Do this by inserting it into
the open hole in the push-in wire connector (included) that is attached to the White wire in
the fixture.
C. Connect the Black input supply wire to the fixture Black wire. Do this by inserting it into
the open hole in the push-in wire connector (included) that is attached to the Black wire in
the fixture. Do not mix wires or change polarity.
D. Pull on each wire lead to make sure connections are secure. Make certain no bare wires are
exposed outside of the wire connectors.
E. To close cover- Carefully arrange wires so they do not get pinched and rotate cover against
channel. Secure cover under housing lances.
5. Lamping
A. DO NOT TOUCH BARE LAMPS WITH BARE HANDS. Oils from your Skin may damage the lamp when it heats up.
B. Remove lamp from box. Hold the lamp by the Pins or with the use of a protective plastic cover, (a glove or a plastic bag work well).
C. Install lamps by pushing straight into sockets. Adjust lamp(s) as needed to not touch lens.
D. Replace glass lens by sliding it back into housing until it fully seats within the housing
6. Lamp Removal
A. Allow lamp to cool before handling.
B. Remove the lamp by grasping and pulling straight out from the lamp socket.
C. See the label on the fixture for replacement lamp type information. Maximum 20 watts (BI-PIN base) 120volt Xenon lamp.
Limited Factory Warranty
AFX warrants this fixture is free from defects in materials and workmanship when installed and used under normal operating conditions
for a period of 2 years from date of purchase. This warranty covers all component parts and extends only to replacement of defective fixture
or components; it does not cover failure due to improper installation, misuse, mishandling or damage incurred in transit .
