LED Pendant Series
LED Pendant Light
Models: AT, BE, GE, KE, LA, & SX
8060445 Rev 2
LED Replacement Instructions
LED Replacement parts –
NOTES:
Disconnect electrical power before servicing any part of this fixture.
Allow LED fixture to cool-down for 1 hour before attempting to replace
lamps.

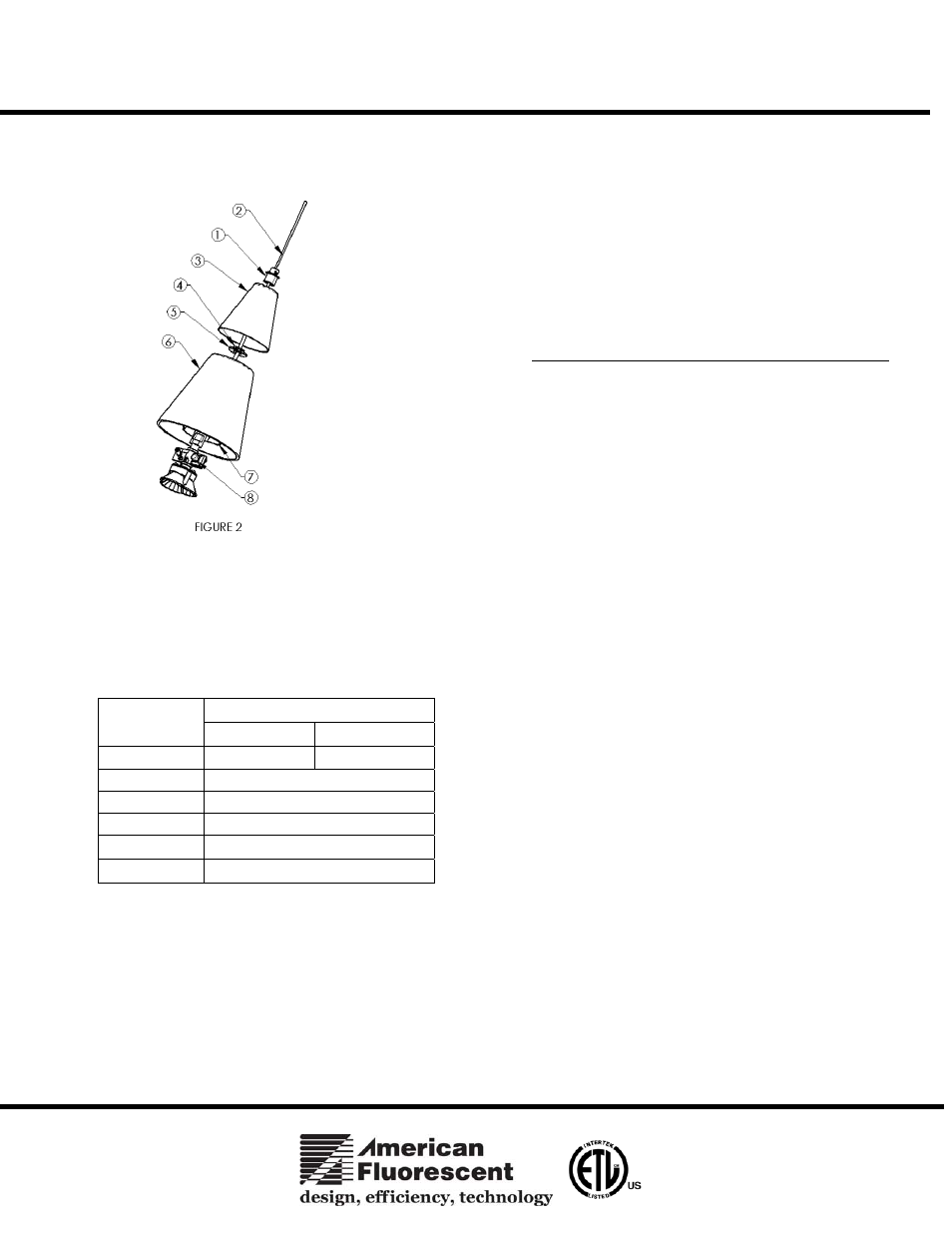

A. Loosen strain relief (1) set screw and slide strain relief and
metal escutcheon (3) up coax cable (2).
B. Loosen jam nut (4) and slide nut, washer (5), and glass (6)
up coax cable in order to access LEDs (8).
C. Repeat the previous step for the plastic baffle (7) if present.
There are 5 LED’s in the fixture; 2 up-lights and 3 down-lights.
D. Unscrew LED’s (8) by turning counter clockwise until
detached from fixture. Discard old LED’s
E. Screw new LED’s into each threaded socket by turning
them clockwise until fully seated.
F. Restore electrical power to LED Pendant fixture.
RP-5005090 (Qty 1) Warm White LED, 1Watt; 2700K
RP-5005091 (Qty 1) Cool White LED, 1Watt; 4000K
RP-5005092 (Qty 1) Blue LED, 1Watt
LED Replacement Part No.
Glass Color
Up-lights (2) Down-lights (3)
Blue RP-5005092 RP-5005091
Amber RP-5005090
Amber Stone RP-5005090
Green RP-5005091
Red RP-5005091
White RP-5005091
