Setup Manual for the DG834GV Integrated ADSL Modem and Wireless Router with Voice
1-2 Connecting the Router to the Internet
v1.1, April 2007
The ADSL Modem Wireless Router with Voice’s Front Panel

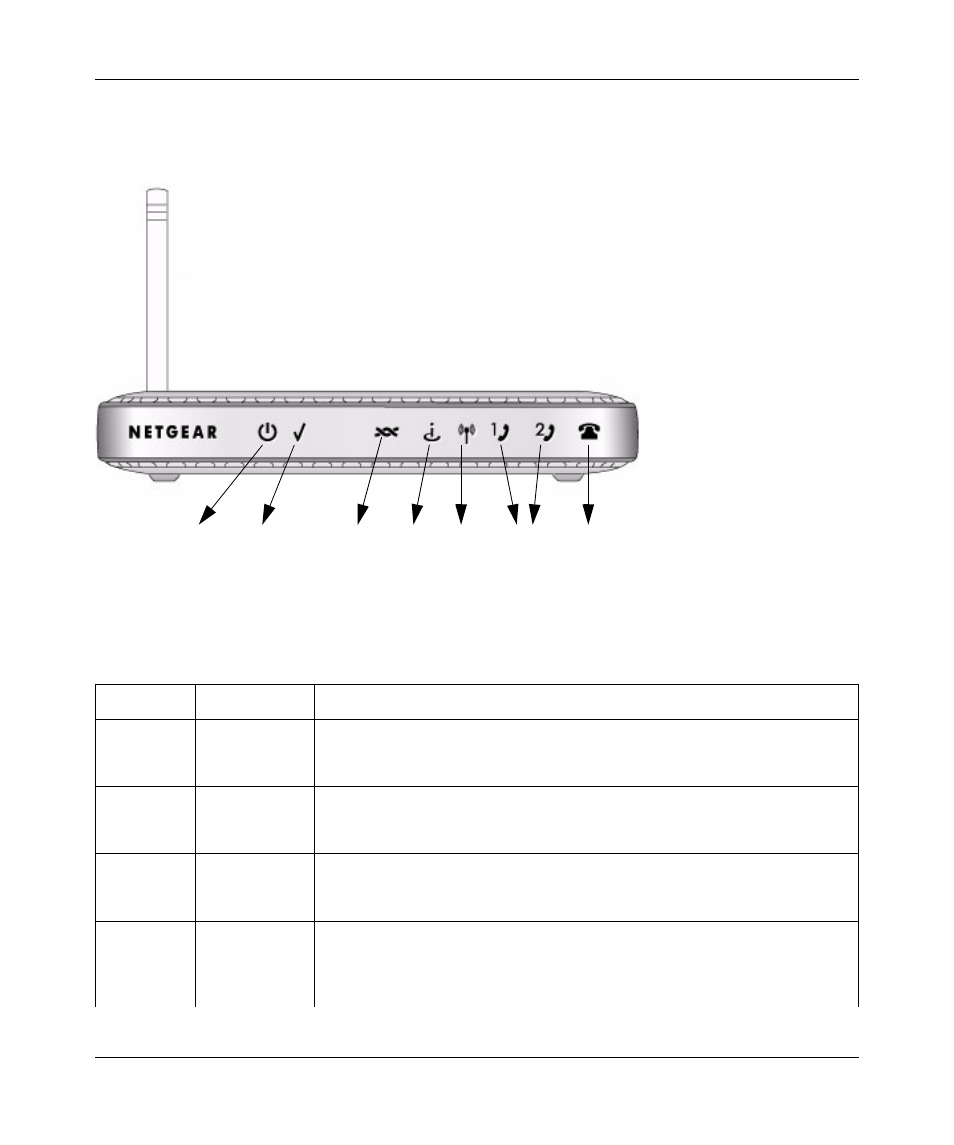

The ADSL modem wireless router with voice front panel shown below contains status LEDs.
You can use the LEDs to verify various conditions. Table 1-1 describes each LED.
Figure 1-1
Table 1-1. LED Descriptions
Label Activity Description
1. Power
On (Green)
On (Red)
Off Power is supplied to the router.
Power-on Self-test failure or device malfunction.
Power is not supplied to the router.
2. Test
On (Amber)
Blink (Amber)
Off System is not ready or failed to start up.
The system is initializing.
The system is ready and running.
3. ADSL
On (Green)
Blink (Green)
Off ADSL is synchronized.
DSL is attempting to synchronize.
No link is detected on this port or modem is not powered on.
4. Internet
On (Green)
Flicker (Green)
Red
Off Internet port is connected, has an IP address, DSL is up, no traffic detected.
Traffic is passing through the connected internet port in either direction.
Device attempted to connect, but failed.
Modem powered off or in bridged mode, or ADSL connection not present.
1 2 3 4 5 6 7
