22

23

For the UHD F9000 and S9 series models

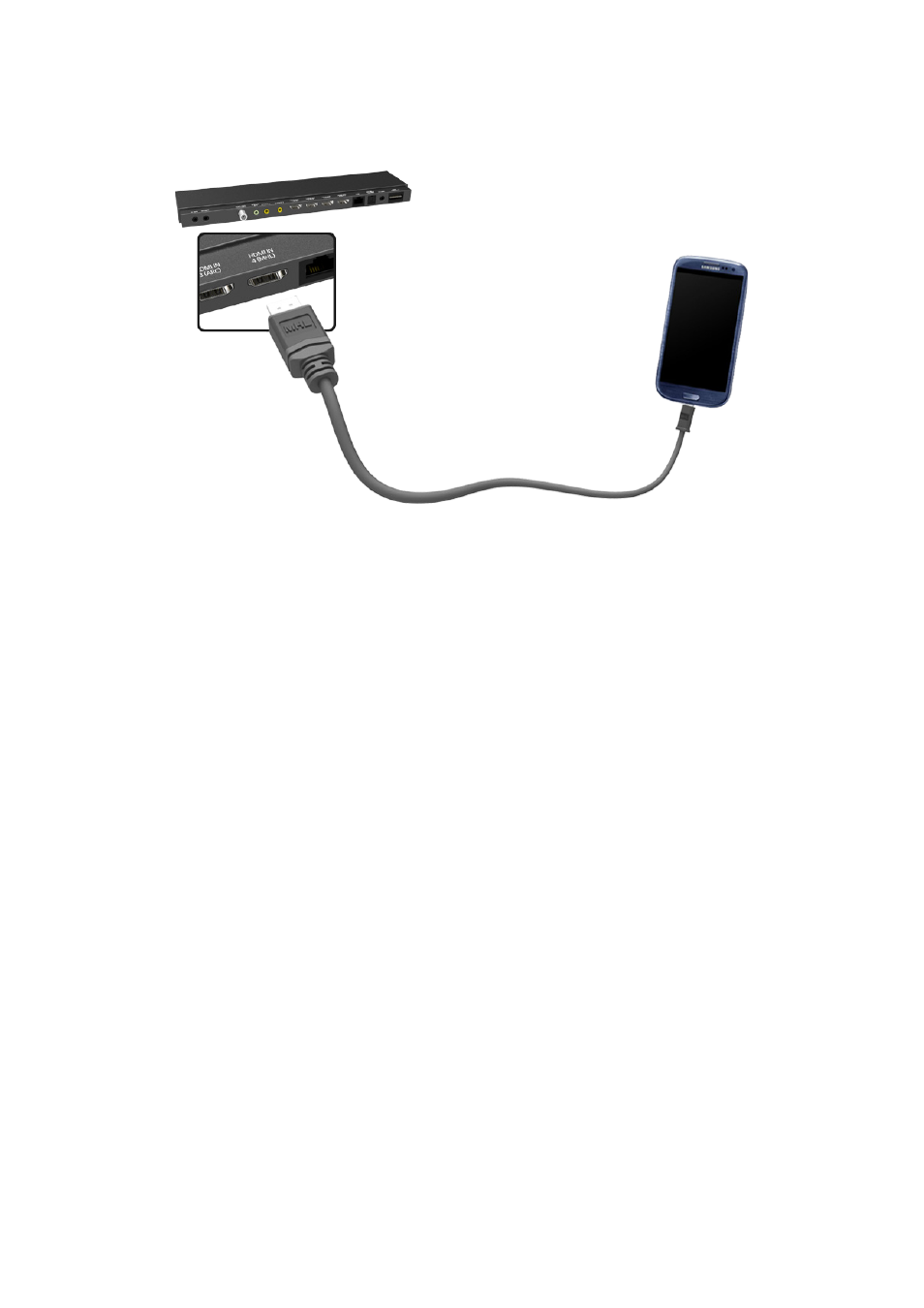

Refer to the diagram and connect the MHL cable to One Connect's HDMI (MHL) connector and the
mobile device's USB port.

The displayed image may differ depending on the model.
