Component Connection
For the LED 7450/7500 series models

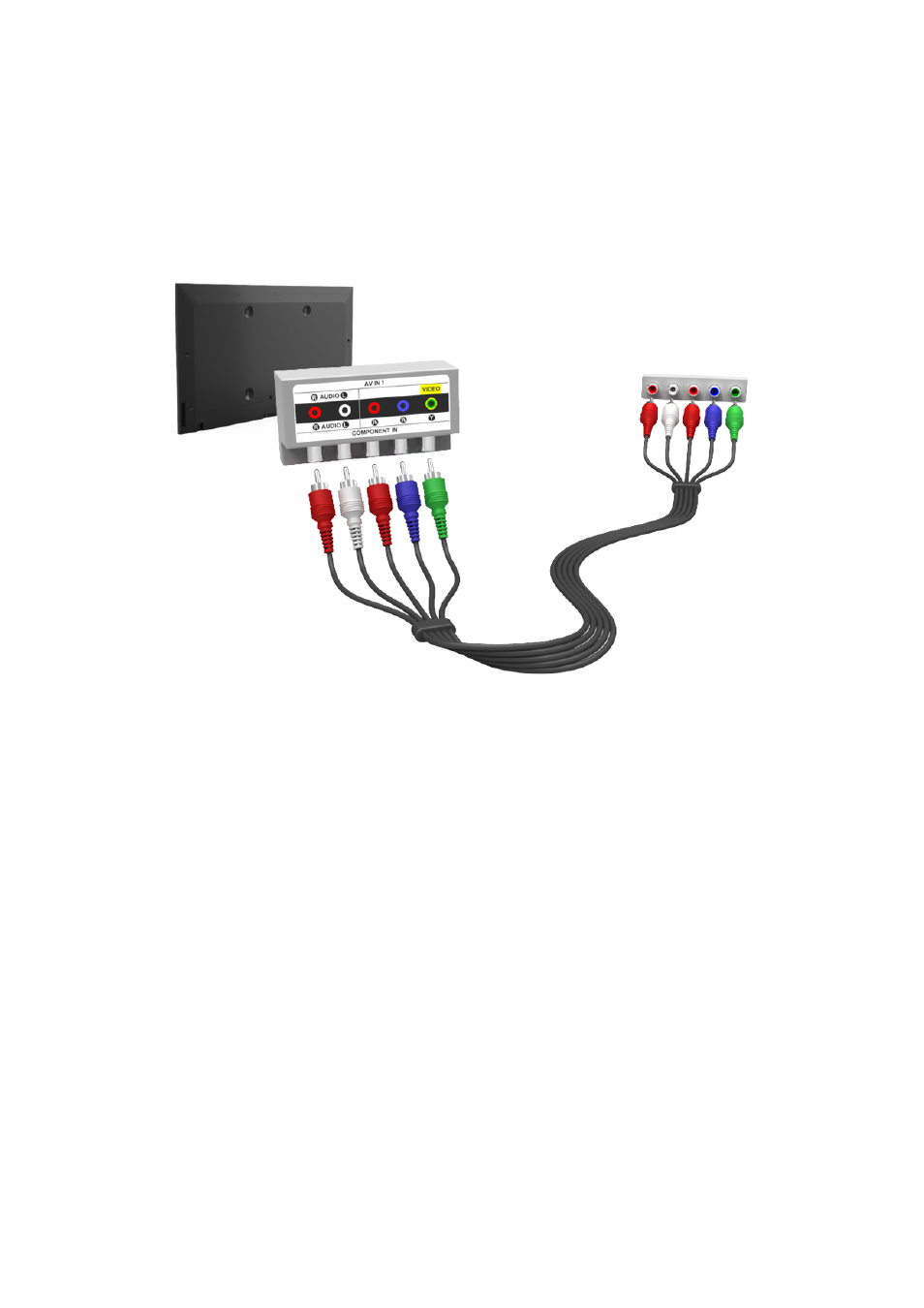

Refer to the diagram and connect the TV’s component video and audio input connectors to the
external device’s component video and audio output connectors using a component cable, so that the
connectors of the same color connect to each other, as shown in the figure.
The displayed image may differ depending on the model.
