For the UHD F9000 and S9 series models

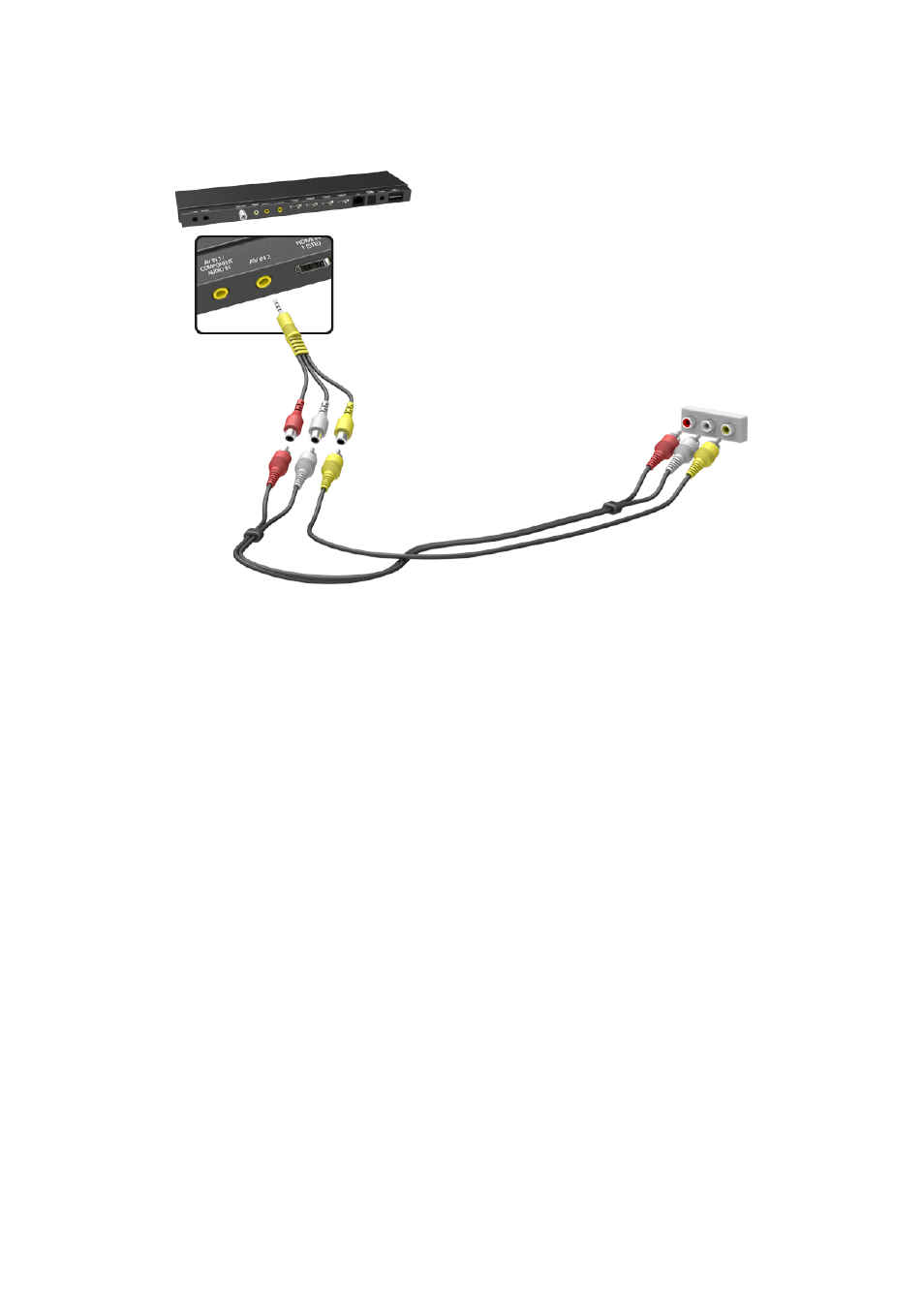

Refer to the diagram and connect the video and audio cables to the A/V adapter (included) and the
adapter to One Connect's external input 1 or 2 connector.

The displayed image may differ depending on the model.
