ATTO Technology, Inc.

ATTO FibreBridge Installation & Operation Manual

- 49 -

ATTO Technology, Inc.

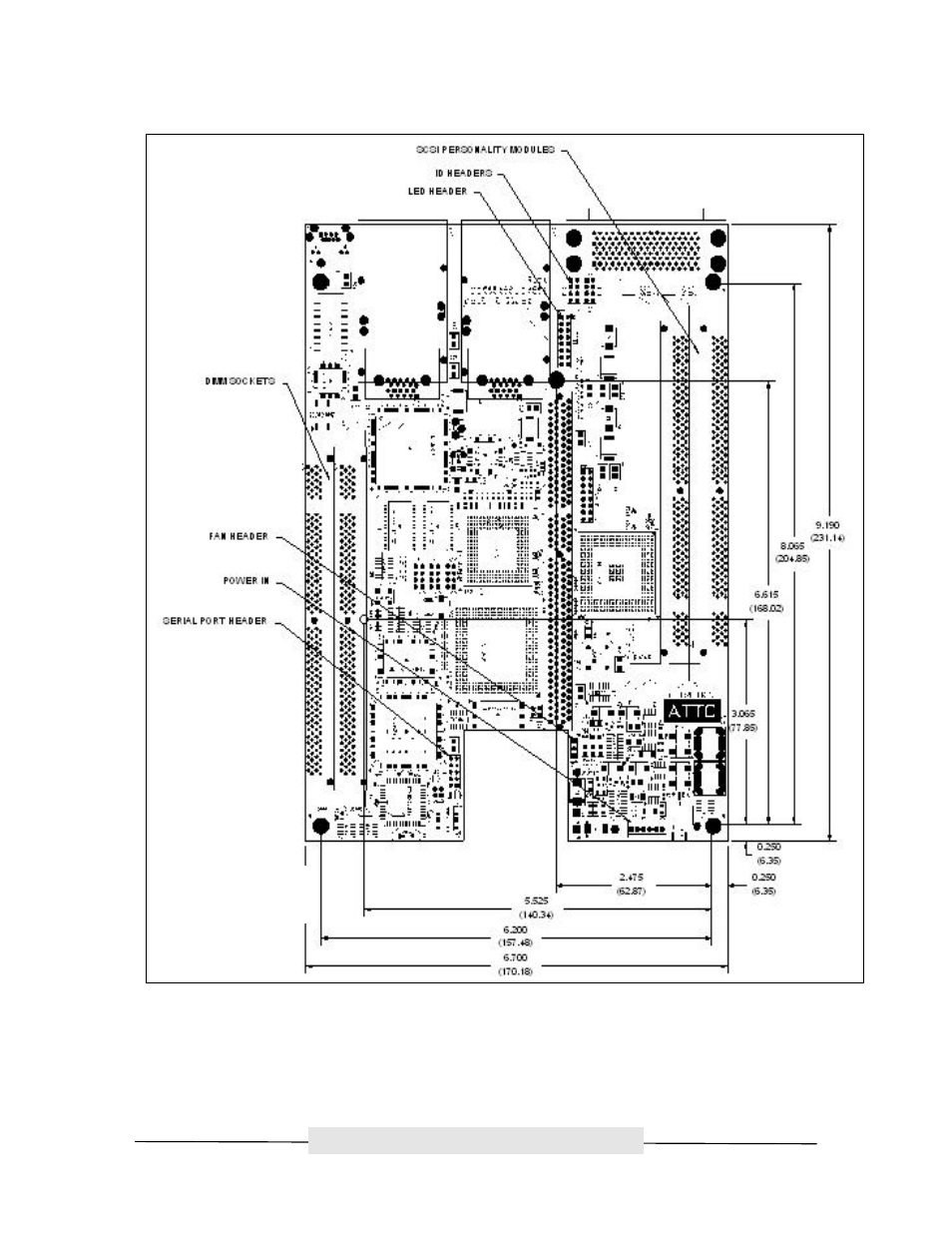

Figure C-2 ATTO FibreBridge 2200R/D and 3200R Product Modules’ Board Layout

Maximum Height
= 1.272” (3.228 cm)
