ATTO Technology, Inc.

ATTO FibreBridge Installation & Operation Manual

- 23 -

ATTO Technology, Inc.

The FibreBridge modules do not come standard with GBIC modules. They must be ordered separately.

GBIC Module and GBIC Guide System

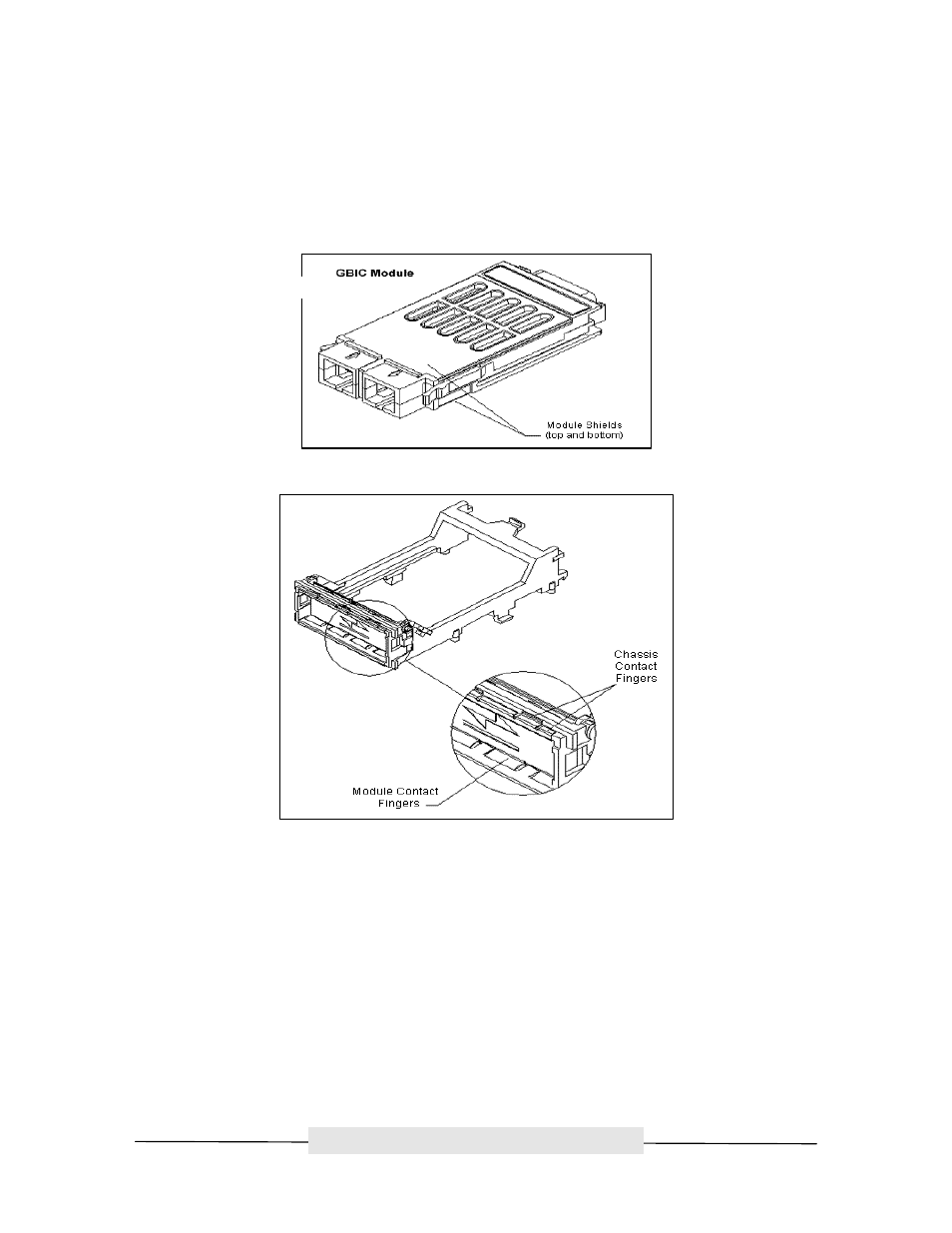

Figures 6.3 and 6.4 depict a typical GBIC and GBIC guide system. GBICs may be removed and replaced
with the power on.

Figure 6.3 GBIC Module

Figure 6.4 GBIC Guide System

GBIC Installation Instructions
1. Orient the GBIC as shown in Figure 6.5. The keyway is ON THE BOTTOM for the port insertion.

2. Slide the GBIC into the port opening (the spring-loaded door will open as the GBIC is pushed in). If

the GBIC slides in only an inch (2.5cm) before it stops, the keyway in the wrong position. Flip the
GBIC over and try again.

3. Push the GBIC in until the GBIC latches snap into place.

4. Cable the port.
