54 Chapter 3

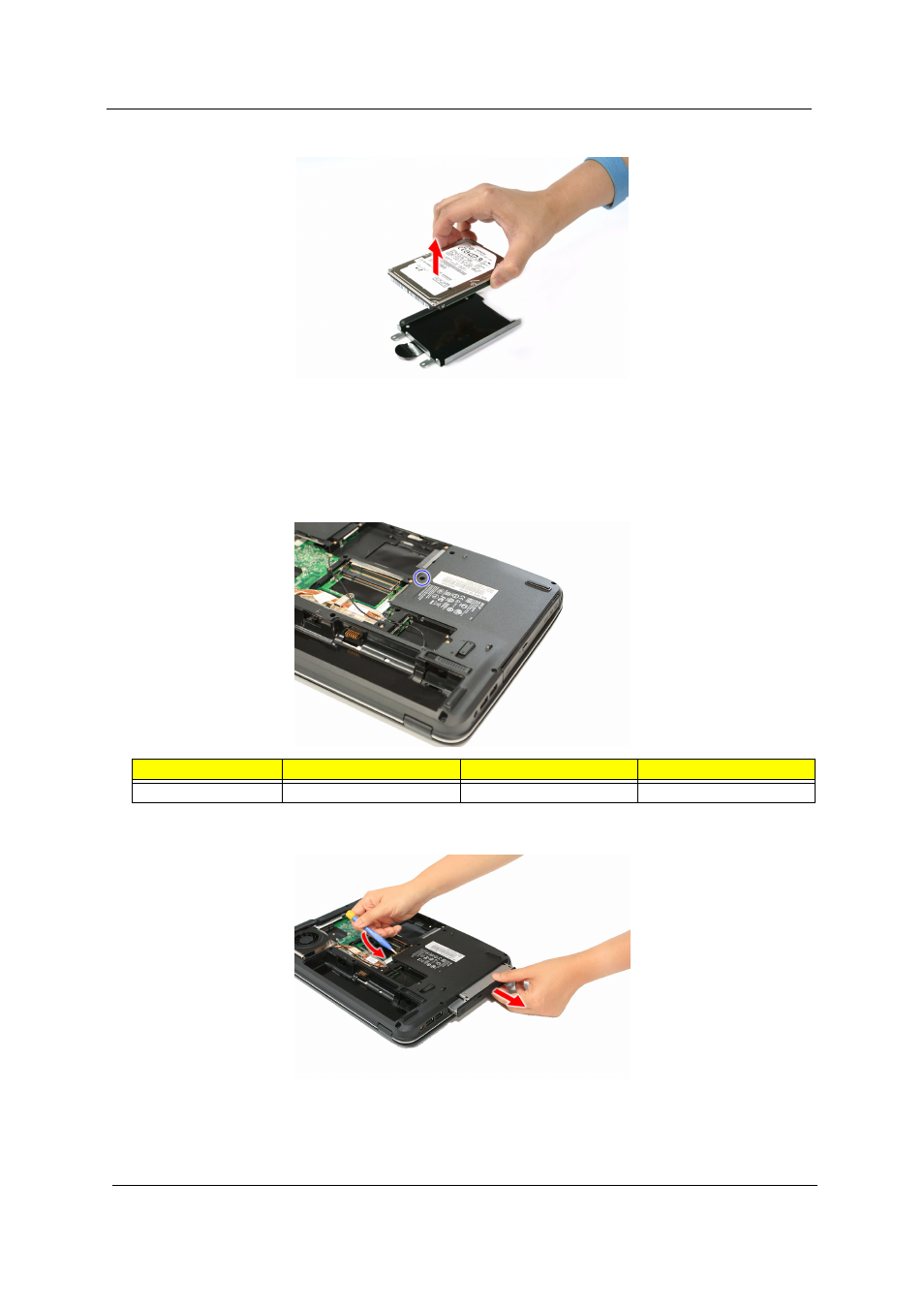

6. Remove the hard disk drive.
Removing the Optical Drive Module
1. See “Removing the Battery Pack” on page 49.
2. See “Removing the Lower Cover” on page 50.
3. Remove the screw (C) on the bottom side of the unit, as shown.
4. Using the flat-blade screwdriver, press the end of the module forward, then slide out the optical drive
module from the main unit.
Step Size (Quantity) Color Torque
1 M2 x L6 (1) Black 2.0 kgf-cm
