Removing the wlan board module – Acer 4715Z User Manual
Page 62
52
Chapter 3

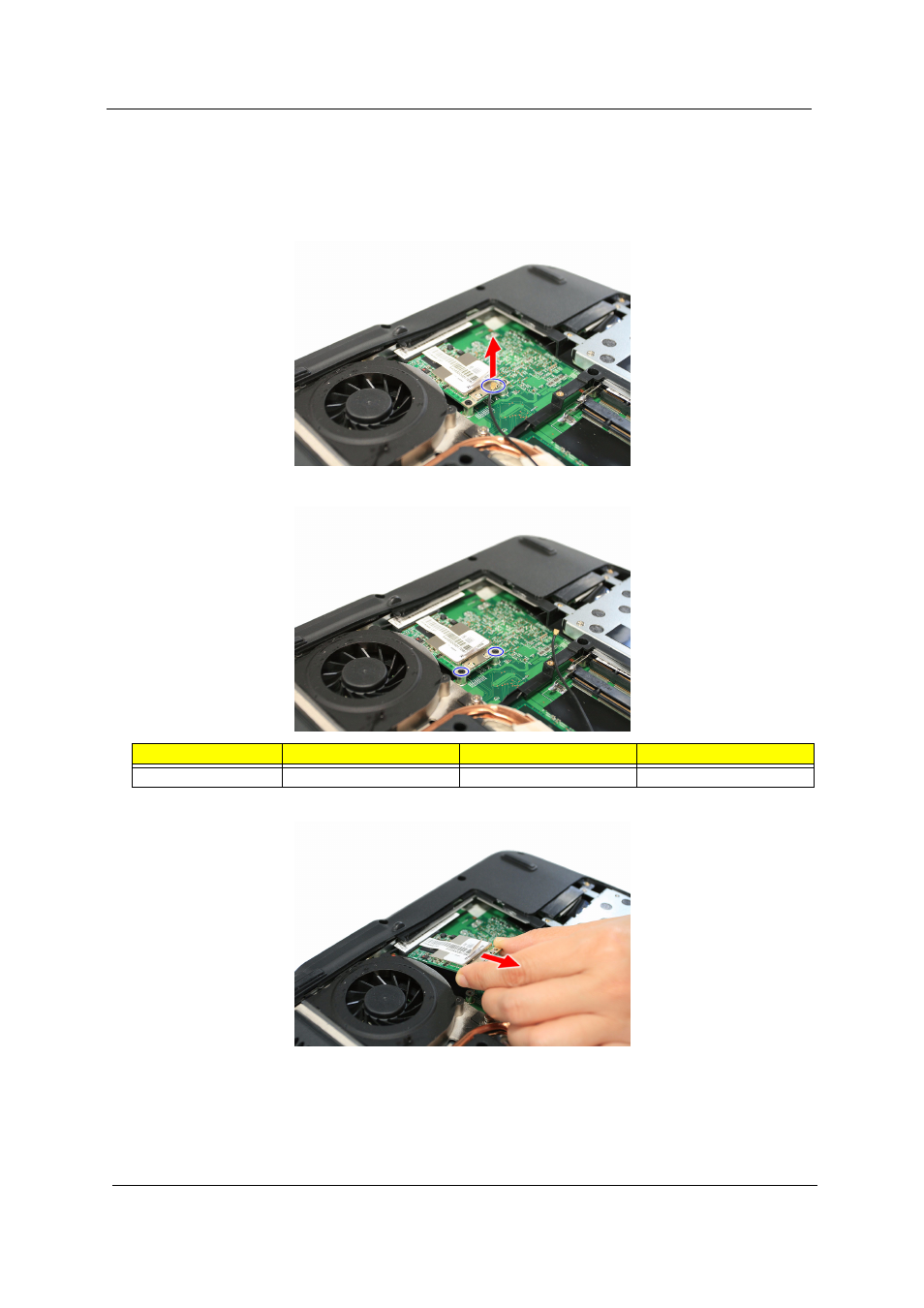

Removing the WLAN Board Module
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
Disconnect the antenna cable from the WLAN board, then move the antenna away from the board.
4.
Remove the two screws (A) on the WLAN board to release the WLAN board.
5.
Detach the WLAN board from the WLAN socket.
NOTE: When attaching the antennas back to the WLAN board, make sure the cable is routed properly.
Step
Size (Quantity)
Color
Torque
1~2
M2 x L4 (2)
Black
1.6 kgf-cm
