Chapter 5

107

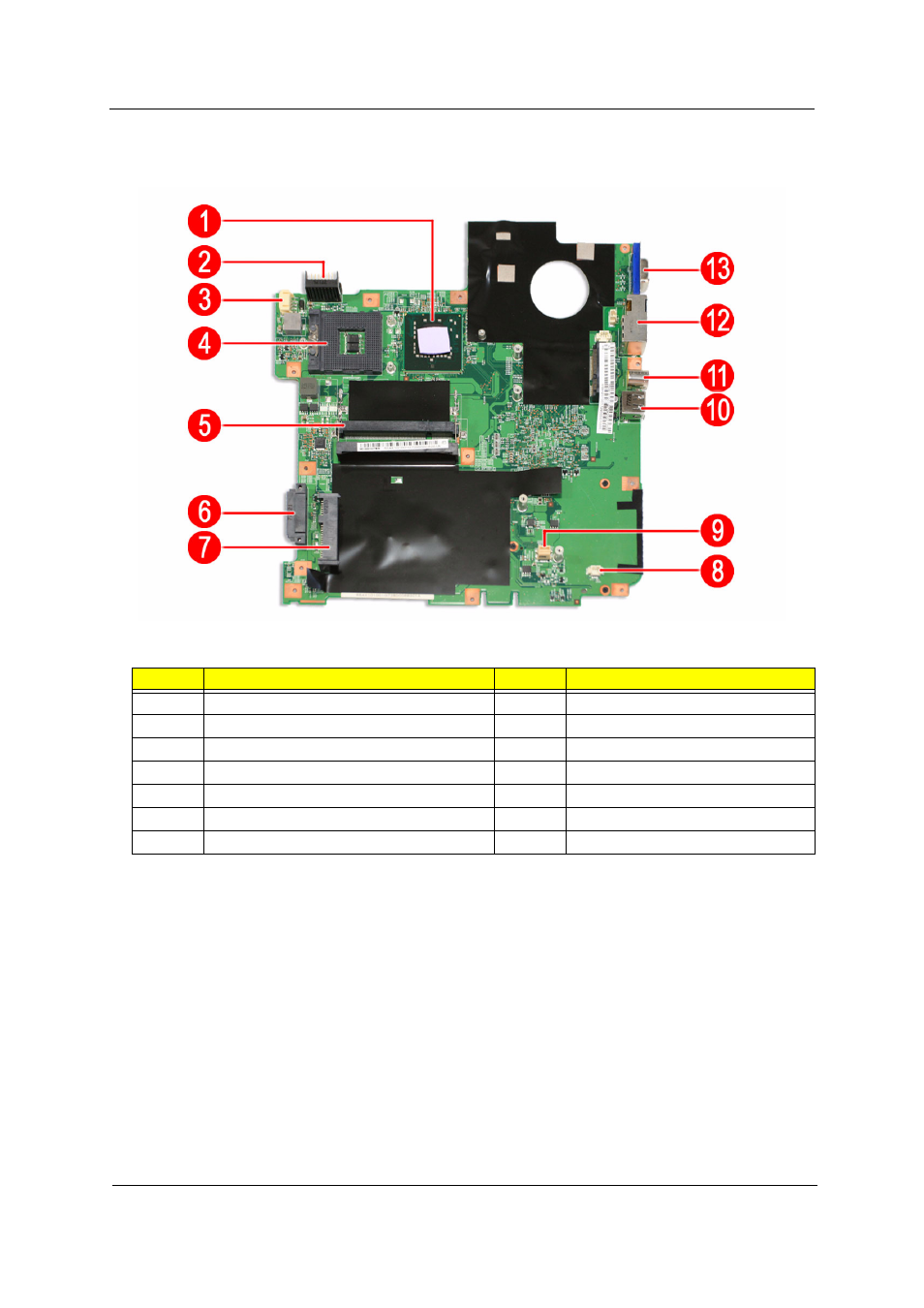

Bottom View

#

Item

#

Item

1

Intel GL960 Express chipset (north bridge)

8

RTC battery cable connector

2

Battery cable connector

9

Modem board connector

3

AC-in jack

10

USB port

4

CPU socket

11

S-video port

5

DIMM socket

12

RJ11+RJ45 port

6

ODD connector

13

CRT port

7

HDD connector
