Removing the LCD Bezel
1. See “Removing the Battery Pack” on page 49.
2. See “Removing the Lower Cover” on page 50.
3. See “Removing the DIMM” on page 51.
4. See “Removing the WLAN Board Module” on page 52.
5. See “Removing the Hard Disk Drive Module” on page 53.
6. See “Removing the Optical Drive Module” on page 54.
7. See “Removing the CPU Heatsink Module” on page 57.
8. See “Removing the CPU” on page 58.
9. See “Removing the Keyboard” on page 59.
10. See “Removing the Middle Cover” on page 60.
11. See “Removing the LCD Module” on page 61.

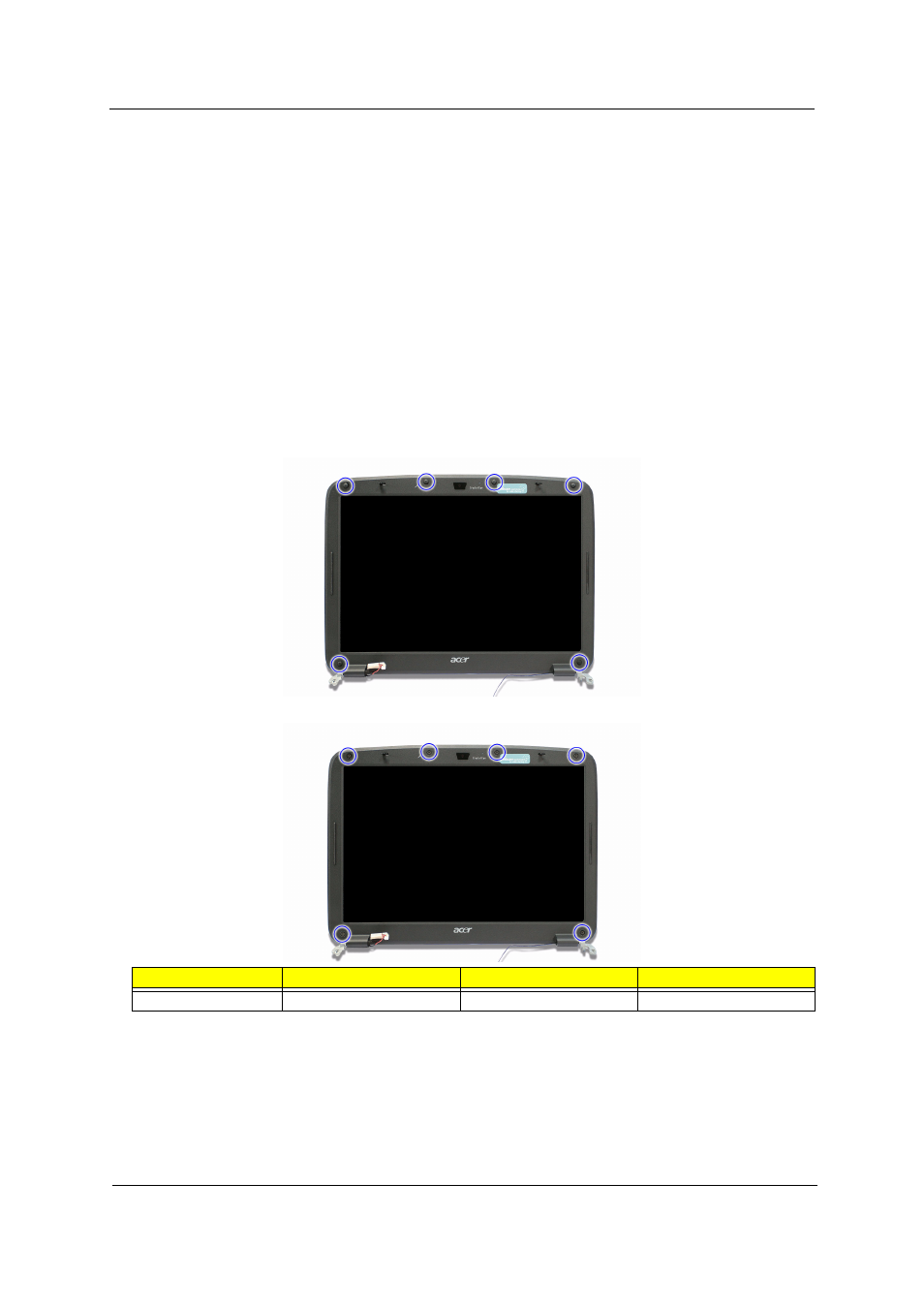

12. Remove the six rounded screw caps as shown.
13. Remove the six screws (G) on the LCD module.
Step Size (Quantity) Color Torque
1~4 M2.5 x L6 (6) Black 3.0 kgf-cm
