4 Chapter 1

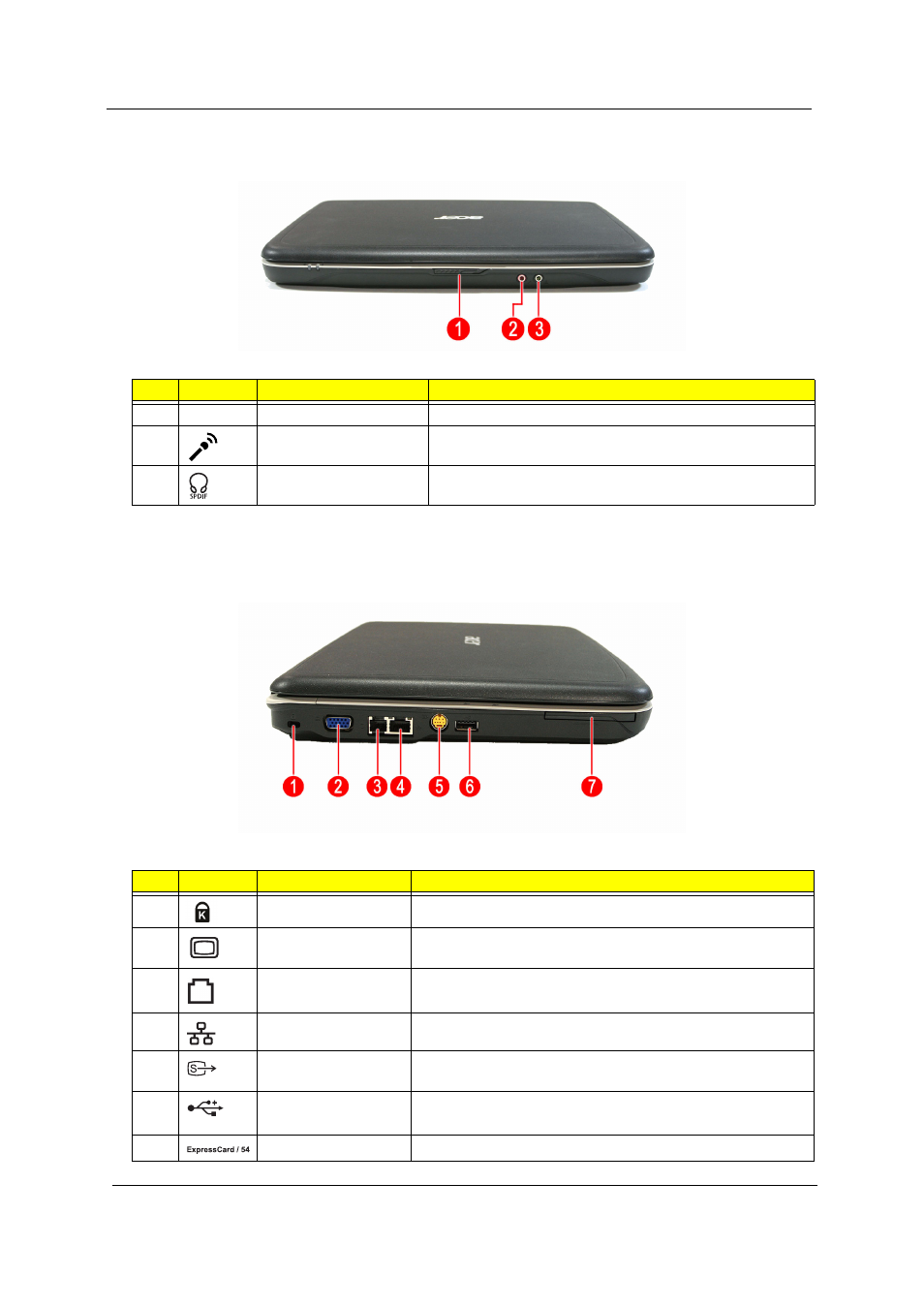

Closed Front View
Left View
# Icon Item Description
1 Latch Locks and releases the lid.
2 Microphone jack Accepts inputs from external microphones.
3 Headphones/speaker/
line-out jack Connects to audio line-out devices (e.g., speakers,
headphones)
# Icon Item Description
1 Kensington lock slot Connects to a Kensington-compatible computer security lock.
2 External display
(VGA) port Connects to a display device
(e.g., external monitor, LCD projector).
3 Modem (RJ-11) port Connects to a phone line.
4 Ethernet (RJ-45) port Connects to an Ethernet 10/100/1000-based network.
5 S-video/TV-out
(NTSC/PAL) port Connects to a television or display device with S-video input.
6 USB 2.0 port Connect to USB 2.0 devices (e.g., USB mouse, USB camera).
7 ExpressCard/54 slot Accepts one ExpressCard/54 module.
