Chapter 3 61
Removing the LCD Module
1. See “Removing the Battery Pack” on page 49.
2. See “Removing the Lower Cover” on page 50.
3. See “Removing the WLAN Board Module” on page 52.
4. See “Removing the Keyboard” on page 59.
5. See “Removing the Middle Cover” on page 60.

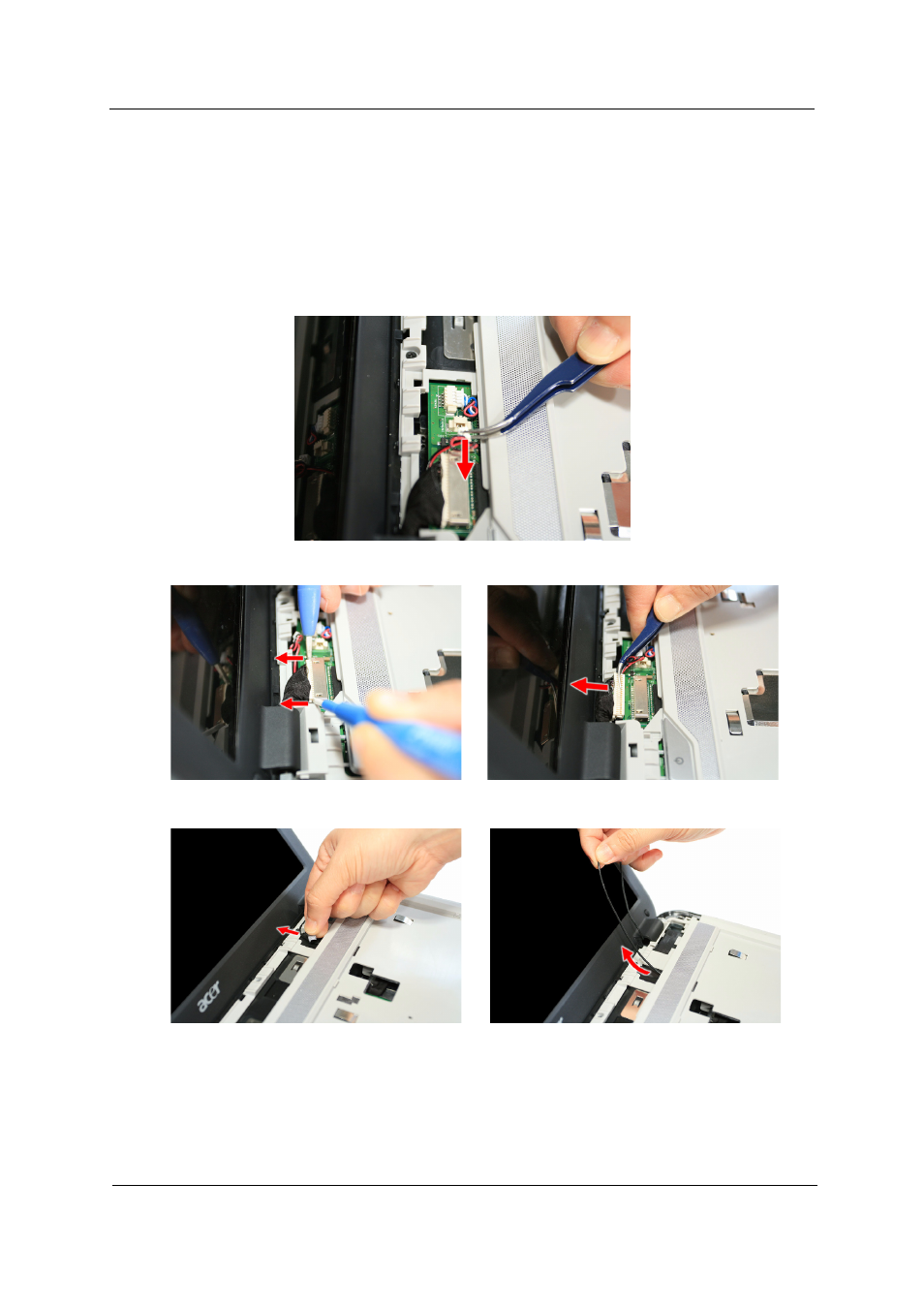

6. Disconnect the microphone cable from the mainboard.
7. Disconnect the LCD coaxial cable from the mainboard.
8. Detach the mylar tape from the antenna cable and pull out the cable as shown.
