Chapter 3 53

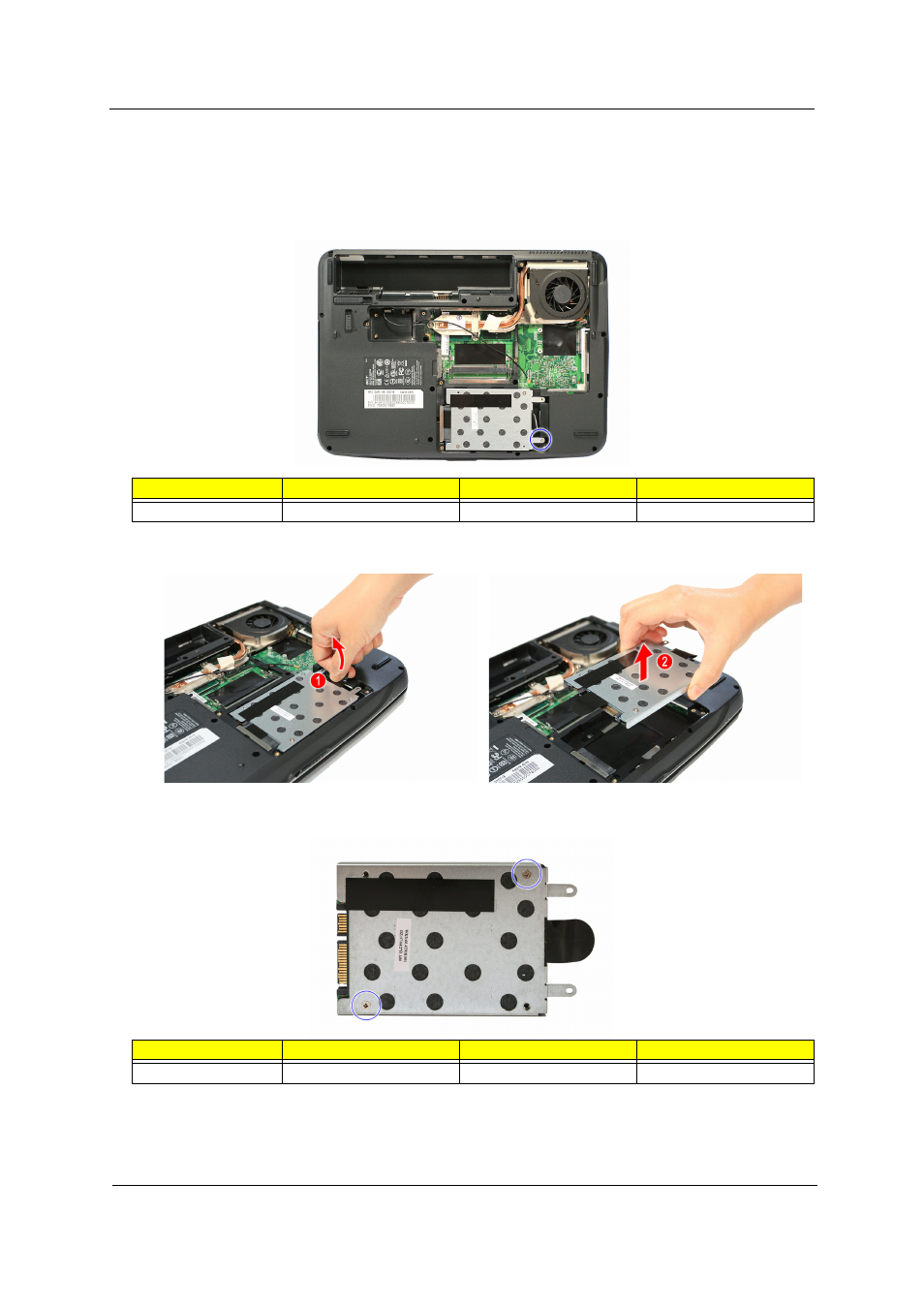

Removing the Hard Disk Drive Module
1. See “Removing the Battery Pack” on page 49.
2. See “Removing the Lower Cover” on page 50.
3. Remove the screw (A) securing the HDD assembly to the unit.
4. Pull the HDD module out by pulling on the mylar attached to it (1), gently slide-out the HDD module from
its bay (2).
NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.
5. Remove the two screws (B) on the HDD bracket.
Step Size (Quantity) Color Torque
1 M2 x L4 (1) Silver 1.6 kgf-cm
Step Size (Quantity) Color Torque
1~2 M3 x L4 (2) Silver 3.0 kgf-cm
