Appendix A. Installation Scenarios
Master
RF450
Slave 12
Slave 11
PC Running
LoggerNet
/PC400
Repeater
1
Slave/
Repeater
Slave 22
Slave 21

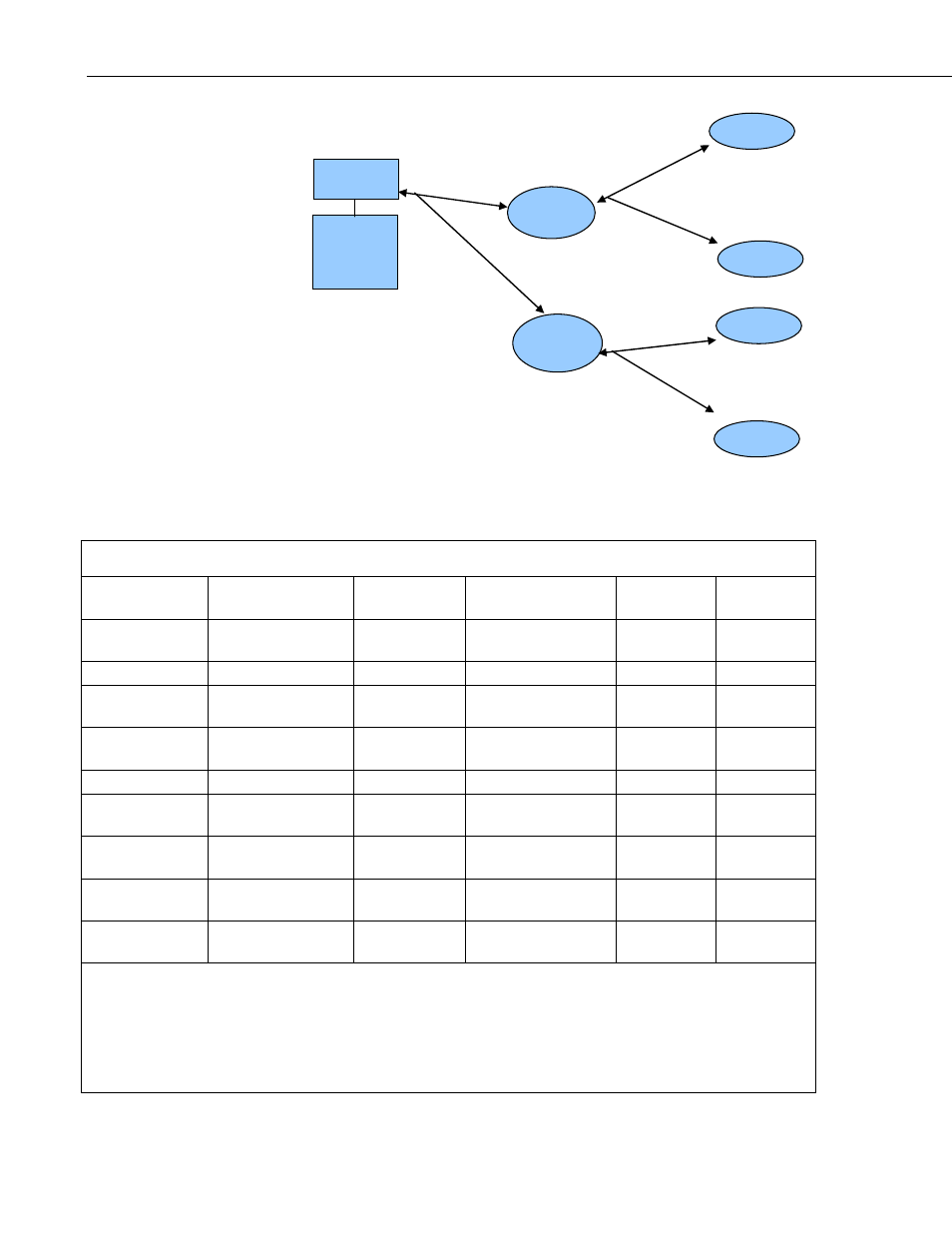

FIGURE A.3-1. Schematic of PC-to-RF Network with Parallel
Repeaters (using the SubNet ID)
TABLE A.3-1. RF450 Settings for Example 3
Master
Repeater
Slave/Repeater Slave
11, 12 etc. Slave
21, 22 etc.
Hardware(d) PC running
LoggerNet, RF450 RF450 CR1000, RF450 CR1000,
RF450 CR1000,
RF450
Baud Rate 115.2K 115.2K 115.2K 115.2K 115.2K
Radio Operation
Mode Multi-Point Master Multi-Point
Repeater Multi-Point
Slave/Repeater Multi-Point
Slave Multi-Point
Slave
Repeaters Used Yes; check box Yes; check
box Yes; check box Yes; check
box Yes; check
box
Network ID (a) 1726 1726 1726 1726 1726
Frequency Key
(a) 1 1 1 1 1
Receive SubNet
ID NA 0 0 1 2
Transmit SubNet
ID 15 (default) 1 2 0 0
Radio ID 4094(b) 2 3 (c) 11, 12 etc.
(c) 21, 22, etc
(c)
Notes:
(a) your Network ID and Frequency Key may be different
(b) to match LoggerNet's PakBus Address
(c) to match CR1000's PakBus Address
(d) not inclusive; other typical hardware items may include power supply, antenna, enclosure, etc.
NA = not applicable
A-6
