Campbell Scientific CS500-L Temperature and Relative Humidity Probe User Manual
Page 9
CS500 Temperature and Relative Humidity Probe
5

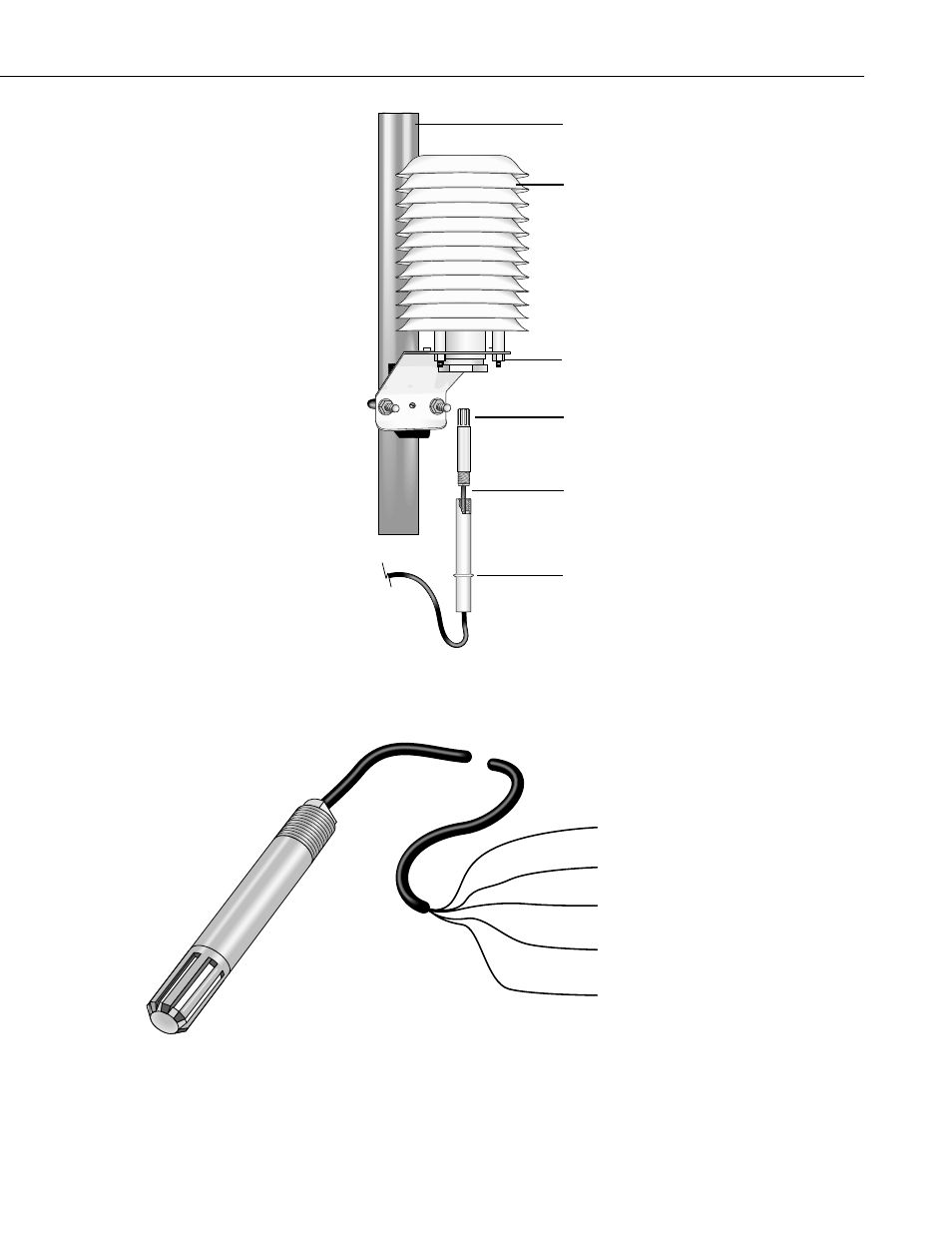

FIGURE 4. Radiation Shield, CS500, and 41381 Adapter
FIGURE 5. CS500 Wiring
41003 10-Plate Radiation Shield
Lock nut tightens against adapter
CS500
41381 Adapter
Black
Temperature Signal
Brown
Relative Humidity Signal
Green
Signal & Power Reference
Red
Power
Clear
Shield
Tripod Mast
Internal threads secure the CS500 to adapter
