CS500 Temperature and Relative Humidity Probe
2

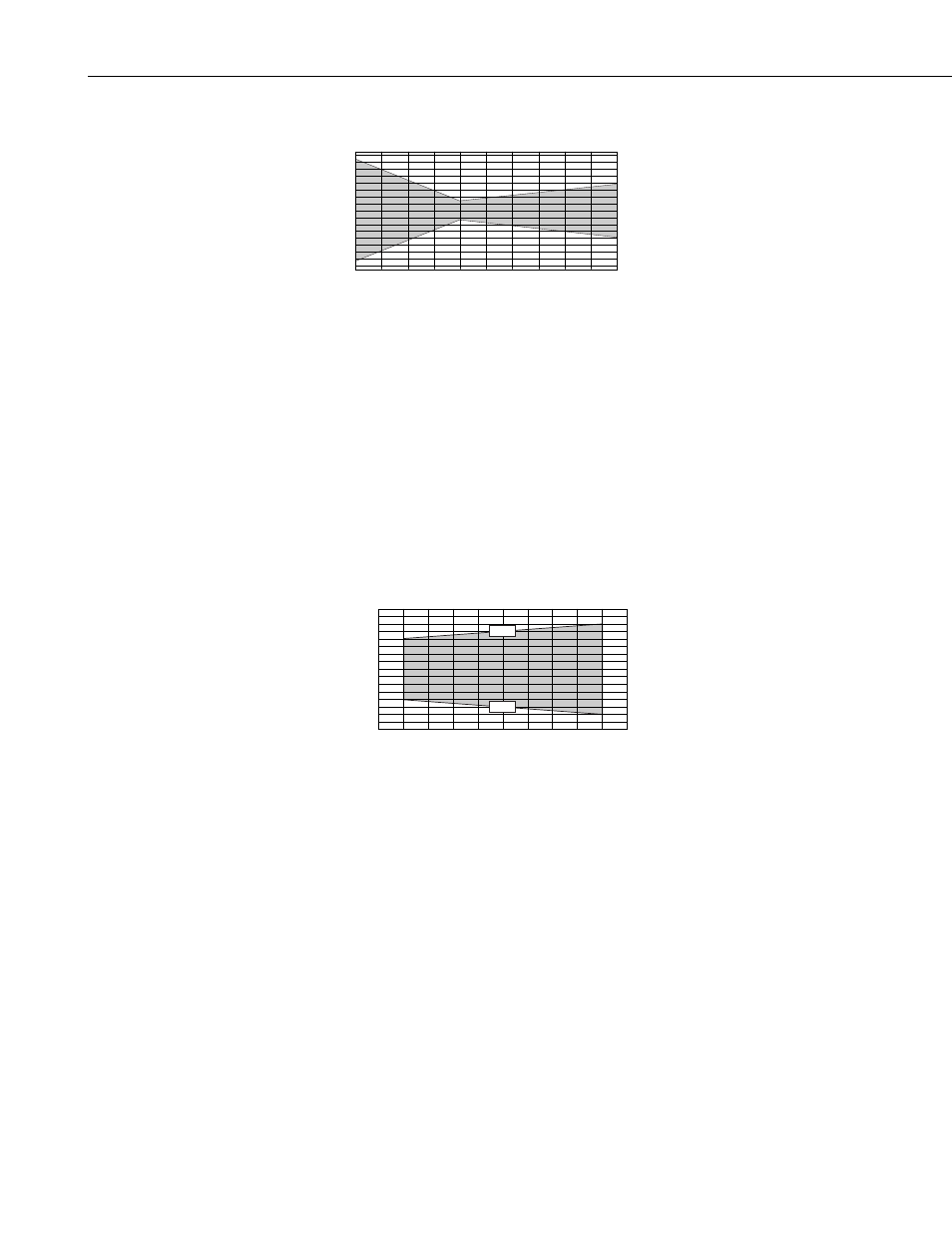

Temperature Accuracy:
0
0.4
0.8
1.2
1.6
-0.4
-0.8
-1.2
-1.6
-20 -40 0
Temperature ( C) o
( C)
Error
o
20 40 60
2.2 Relative Humidity Sensor
Sensor: INTERCAP ®
Relative Humidity Measurement Range: 0 to 100% non-condensing
RH Output Signal Range: 0 to 1.0 VDC
Accuracy at 20
°C
unspecified (0 to 10% Relative Humidity)
±3% RH (10 to 90% Relative Humidity)
±6% RH (90 to 100% Relative Humidity)
Temperature Dependence of Relative Humidity Measurement:
0
0.5
1.0
1.5
-0.5
-1.0
-1.5
10 20 30 40 50 60 70 80 90 100
RH (%)
( %RH/ )
Temper
ature Dependence
60 C o
-40 C o
C o
Typical Long Term Stability: Better than 1% RH per year
Response Time (at 20
°C, 90% response to a steep change in humidity):
15 seconds with membrane filter
3. Installation
The CS500 must be housed inside a solar radiation shield when used in the
field. The 41303 6-Plate Radiation Shield (Figure 1) mounts to a CM6/CM10
tripod or UT10 tower. The CS500 is held within the 41301 by a mounting
clamp (Figure 2).
The 41003 10-Plate Radiation Shield (Figure 3) mounts to a CM6/CM10
tripod. The UT12VA 12-Plate Radiation Shield mounts to a UT10 or UT30
tower with the UT018 horizontal mounting arm.
