CS105/CS105MD Barometric Pressure Sensor

VAISALA

EXT. TRIG

AGND

GND

SUPPLY

VOUT

PRESSURE TRANSMITTER

MODEL

SERIAL NO

RANGE

OUTPUT

SUPPLY

PTB101B

P4450003

600-1060 hPa

0-2.5 VDC

10-30 VDC

MADE IN FINLAND

6H Green - Pressure (VOUT)

6L White - Signal Ground (AGND)

12 V Switch Red - 12 VDC (SUPPLY)

GND Black - Power Ground (GND)

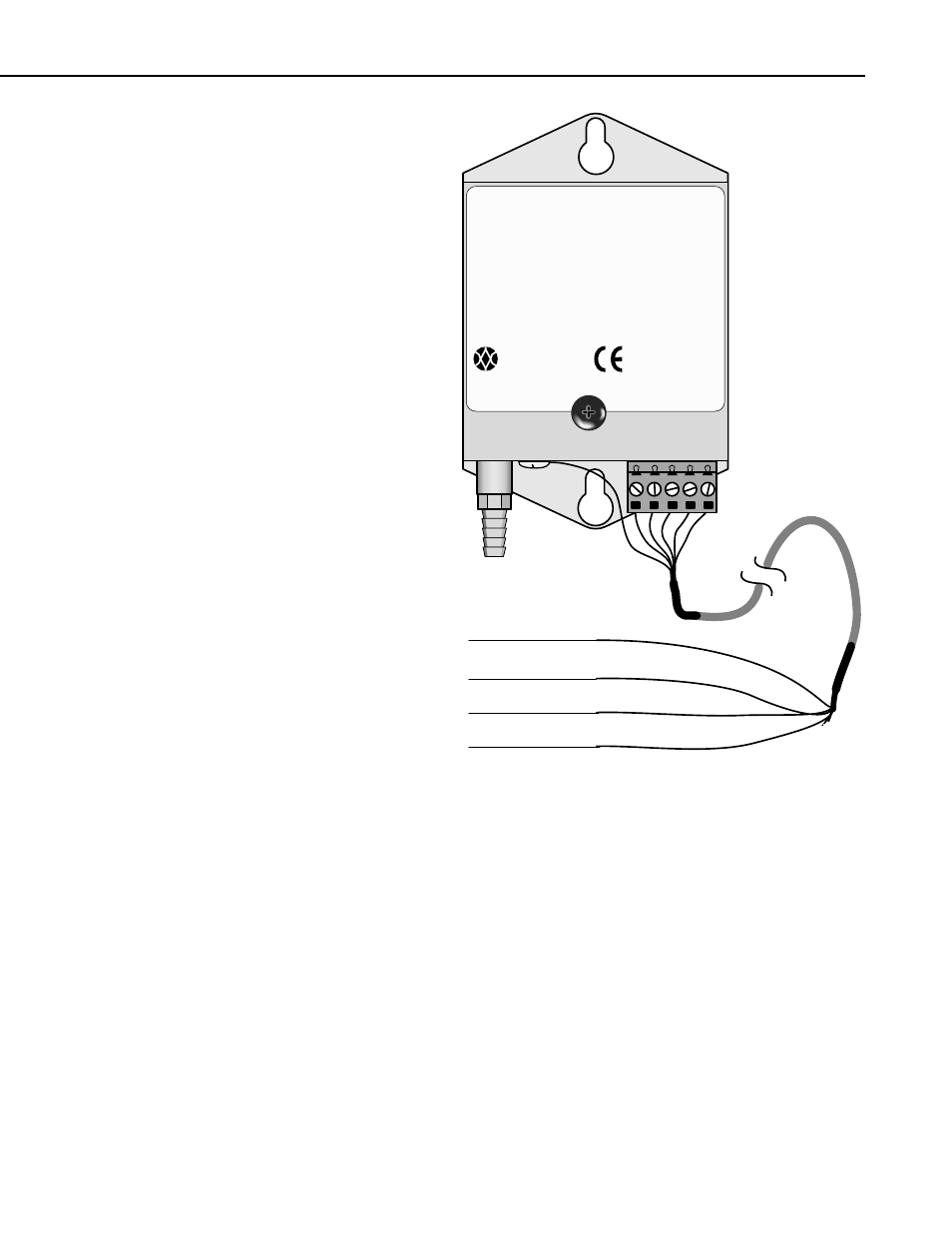

FIGURE 4. CS105MD Wiring Diagram

5
