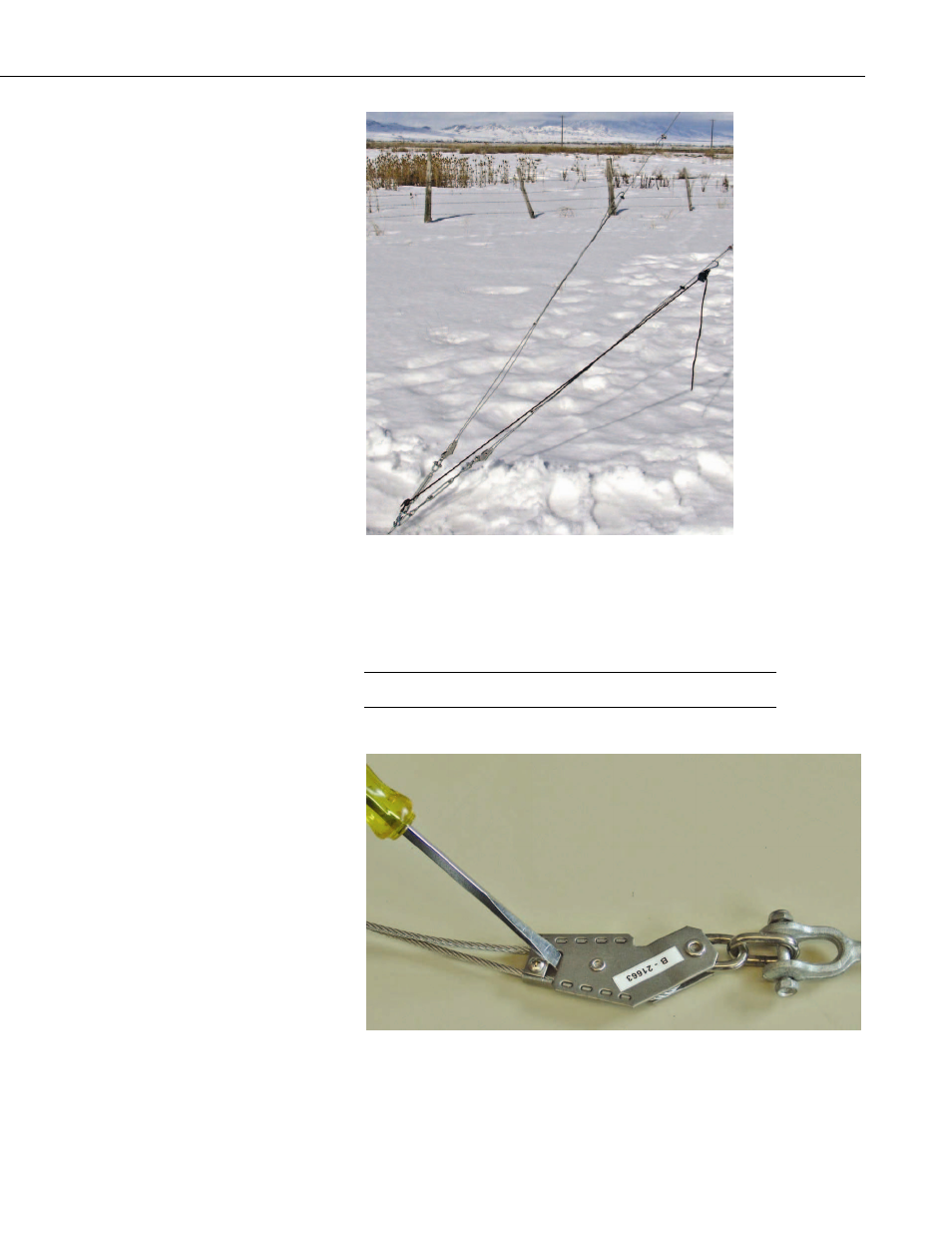

FIGURE 3-27. Rope ratchet assists assembly

Step 8: Course adjustments to cable length are made by loosening screw
clamp and then releasing wedge with a blade screwdriver (see FIGURE 3-28).
This allows the cable to be adjusted through the wedge clamp.

Retighten screw when adjustment is complete.

NOTE

FIGURE 3-28. Adjusting cable through wedge clamp
