CM375 Portable 10-Meter Mast

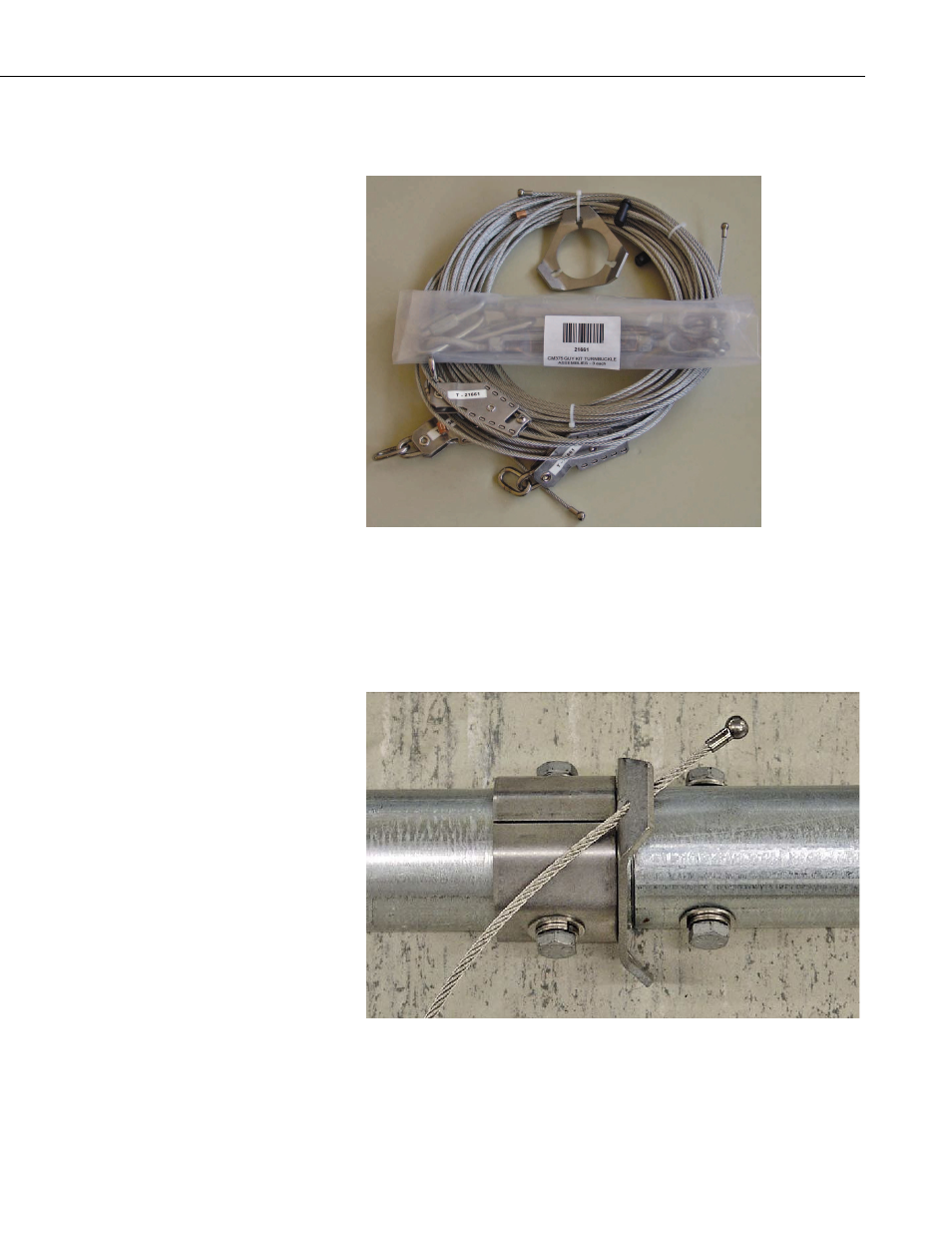

Step 13: Remove the guy collar from the 21661 guy kit (FIGURE 3-15).

FIGURE 3-15. 21661 guy kit

Step 14: Place the guy cable ball ends into the guy ring, and then slide the guy
ring onto the bottom end of Section 5 oriented as shown in FIGURE 3-16.
Align the holes in Section 4 and Section 5, and reassemble the collars.

FIGURE 3-16. Mast Section 5 and guy ring/collar assembly
