22. anchor driven into ground at 45° angle – Campbell Scientific CM375 Portable 10-Meter Mast User Manual
Page 20
CM375 Portable 10-Meter Mast
Always maintain a safe distance between the mast and
any overhead power lines. Contact local utilities prior
to assembling the mast to locate any buried utility
lines in the area the mast is to be installed.
WARNING
Anchor
Rod
Anchor
Cable

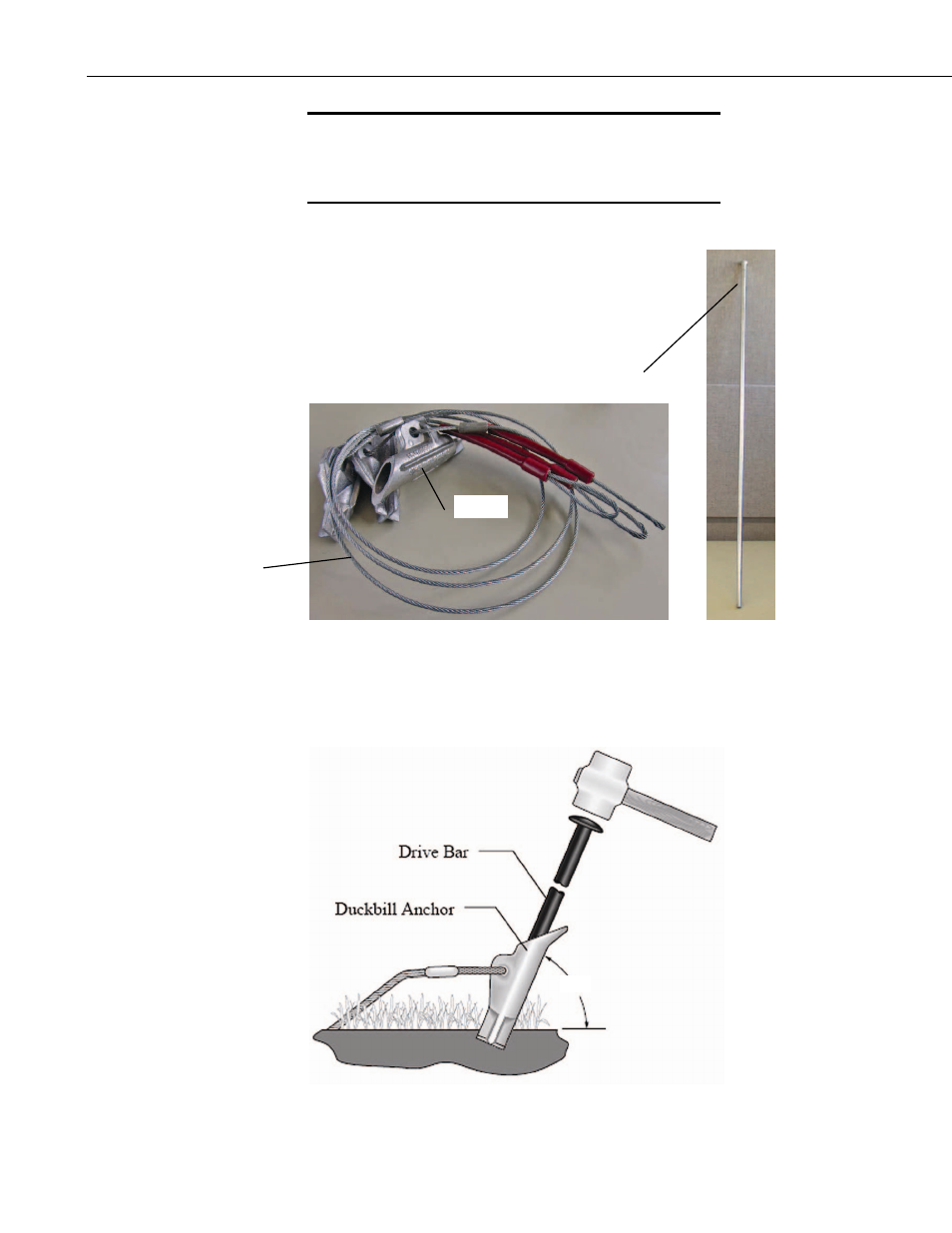

FIGURE 3-21. 19282 duckbill anchor and cable assembly (left). The
25699 has a threaded rod instead of the cable. The drive rod (right)
is used for both the 19282 and 25699.
45°
FIGURE 3-22. Anchor driven into ground at 45° angle
