CM375 Portable 10-Meter Mast
Step 9: Place ball end of each guy cable into its slot in the guy ring and place
guy ring onto coupler of Section 3 (see FIGURE 3-11).

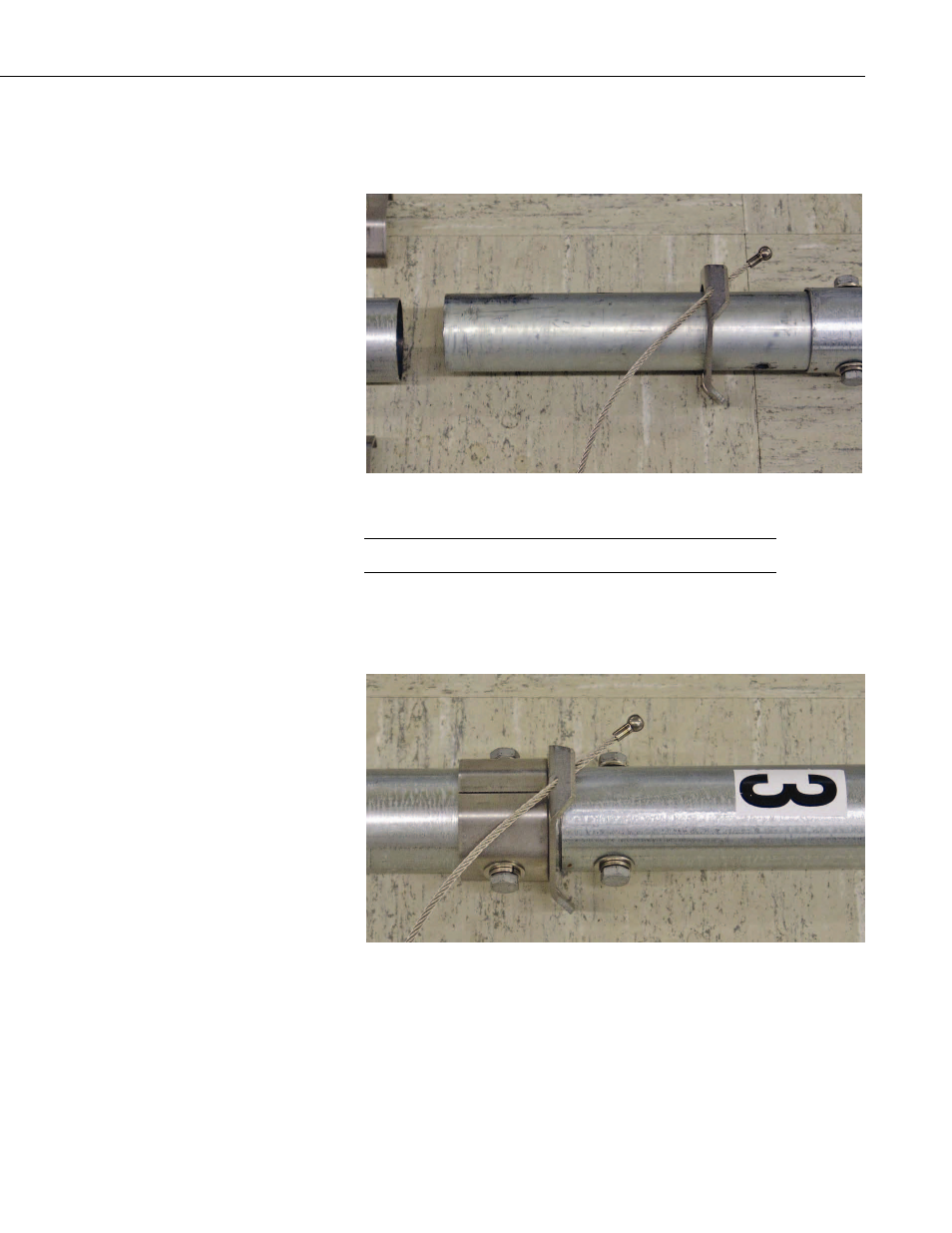

FIGURE 3-11. Guy cable inserted into guy ring
Only one of the three cable ends is shown. NOTE
Step 10: Slide coupler into Section 2 mast and assemble collars, as shown in
FIGURE 3-12.
FIGURE 3-12. Mast Section 3 and guy ring/collar assembly
