Figure 3-3. connecting signal cable leads – Campbell Scientific 380, 385, 380M, 385M Met One Rain Gages User Manual
Page 10
Met One Rain Gage Models 380 and 385
P/N 2196 (2) Plcs.
8”
6”
Cut Shield Off Flush to Jacket
3/8”
3/8”
WHITE
WHITE
SHIELD
BLACK
BLACK
Clear Heat Shrink
Heat Shrink (2) Plcs.
P/N 9661

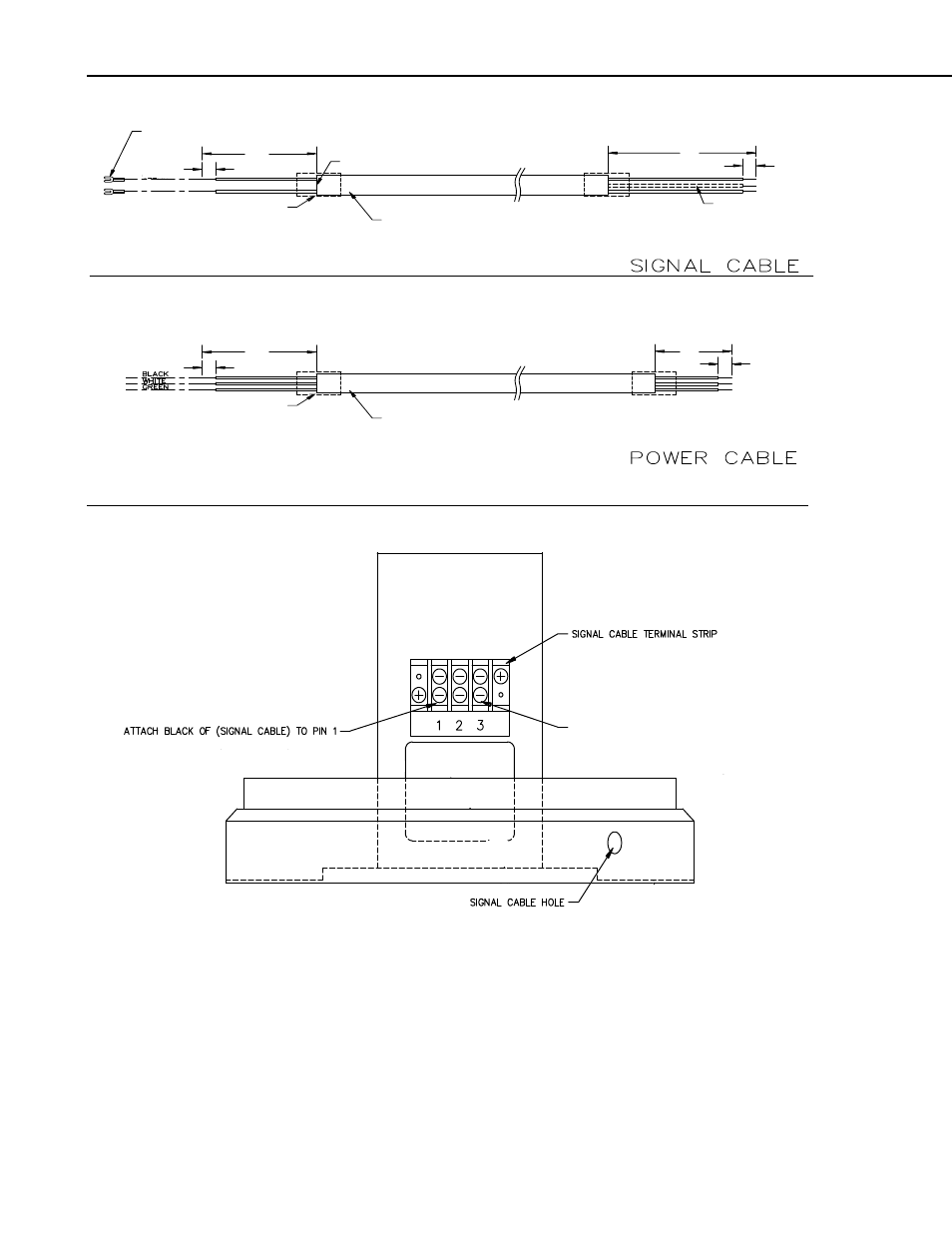

FIGURE 3-3. Connecting Signal Cable Leads
ATTACH WHITE OF (SIGNAL CABLE) TO PIN 3
Heat Shrink (2) Plcs.
P/N 7805 Beldon #1934B
8”
2”
3/8”
3/8”
BLACK
WHITE
GREEN
6
