223 Delmhorst Cylindrical Soil Moisture Block
4. Quickstart
Please review Section 7, Operation, for wiring, CRBasic programming, and
Edlog programming.
4.1 Installation
1. Soak blocks in water for one hour then allow them to dry.
2. Repeat Step 1.
3. Make sensor access holes to the depth required.
4. Soak the blocks for two to three minutes.
5. Mix a slurry of soil and water to a creamy consistency and place one or
two tablespoons into the sensor access hole.
6. Place the blocks in the hole and force the slurry to envelope it. This will
insure uniform soil contact.
7. Back fill the hole, tamping lightly at frequent intervals.
4.2 Use SCWin to Program Datalogger and Generate Wiring
Diagram

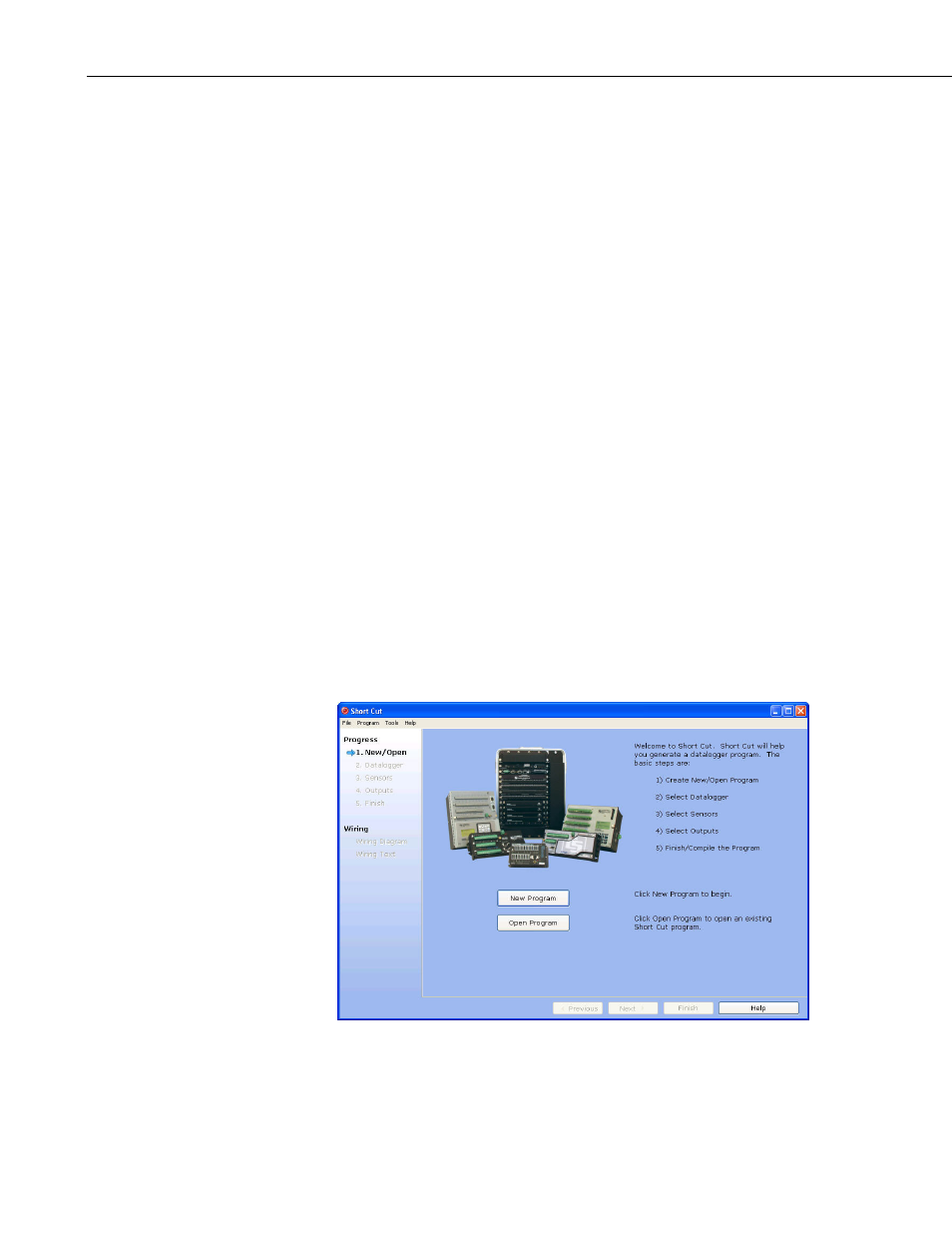

The simplest method for programming the datalogger to measure the 223 is to
use Campbell Scientific’s SCWin Short Cut Program Generator.
1. Open Short Cut and click on New Program.
