223 Delmhorst Cylindrical Soil Moisture Block
6. Choose
the
Outputs and then select Finish.
7. In
the
Save As window, enter an appropriate file name and select Save.
8. In
the
Confirm window, click Yes to download the program to the
datalogger.

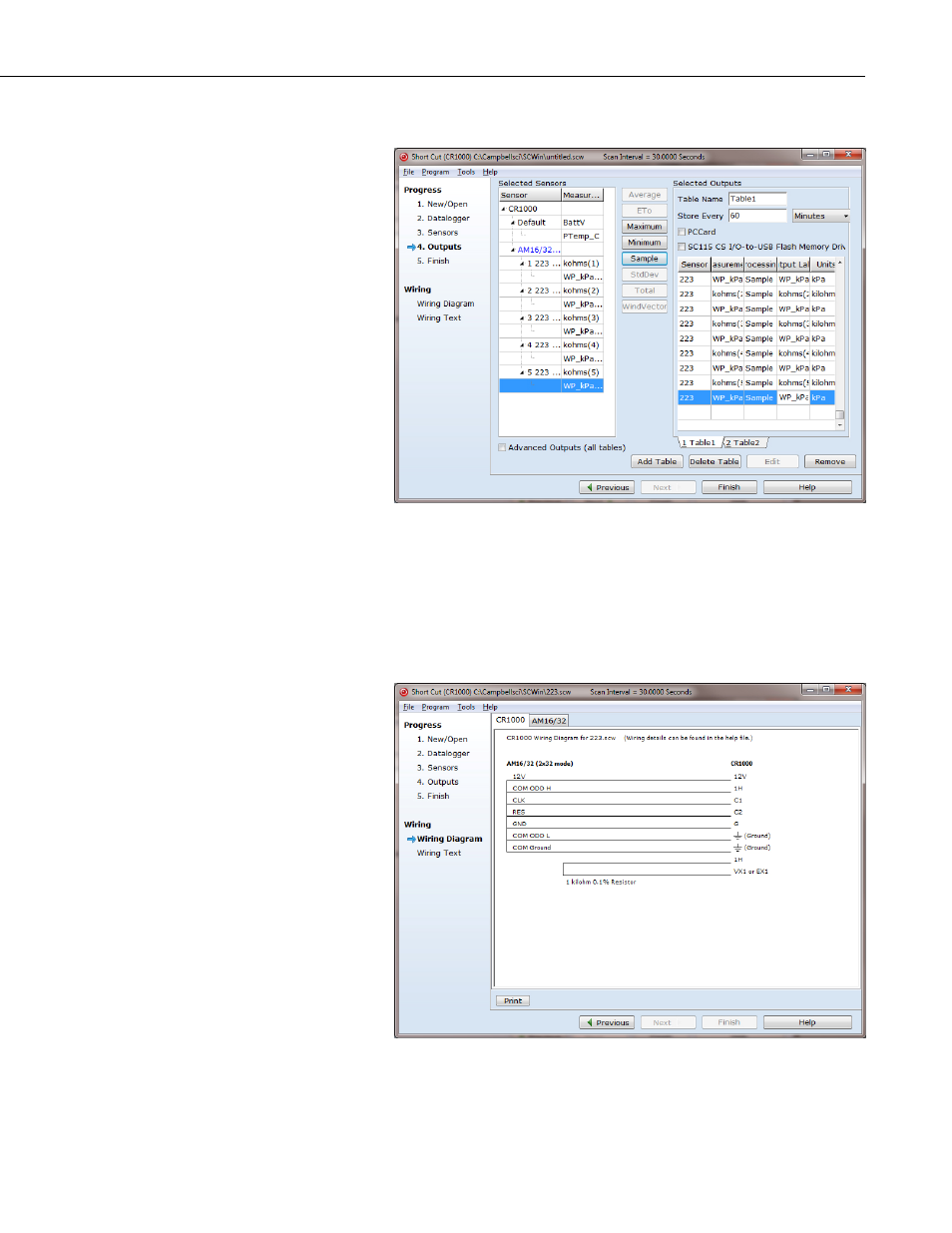

9. Click
on
Wiring Diagram and select the CR1000 tab. Wire the CR1000
to the AM16/32 according to the wiring diagram generated by SCWin
Short Cut.
5
