Chatsworth Products Z4-Series SeismicFrame® Cabinet System User Manual
Page 17

17
Installing
the
Front
Door:

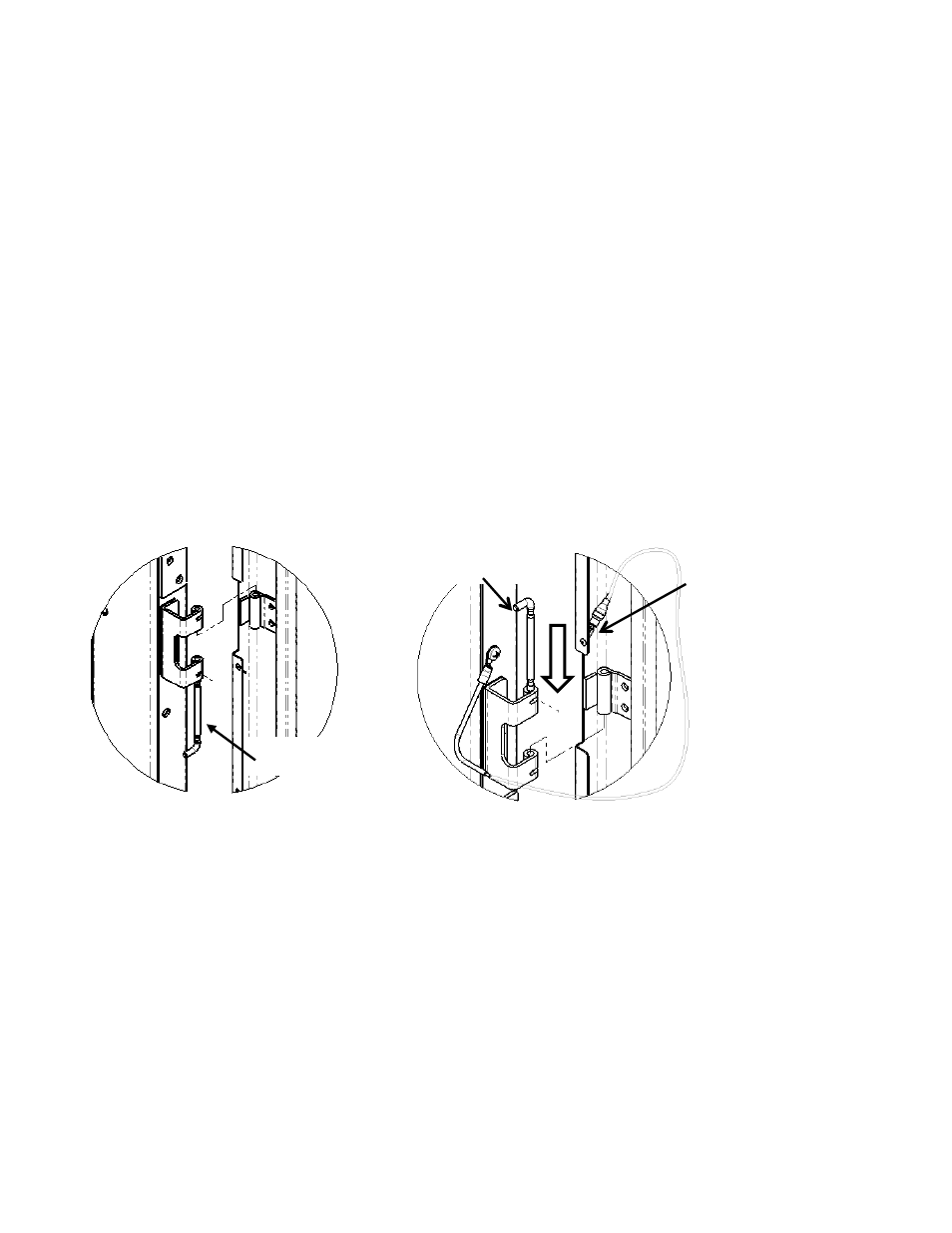

1. Hold the door so that it is perpendicular to the cabinet and align the hinge pins on the door with
the hinge barrels on the cabinet. The door is perpendicular to the cabinet when it is parallel with
the side of the cabinet.
2. Align the upper hinge pin with the upper hinge barrel. Insert the upper hinge pin into the upper
hinge barrel. Continue to support the door, keeping it vertical and perpendicular to the cabinet
frame. The door must be supported to prevent damage to the hinges.
3. While supporting the door, align the lower pin with the pin barrel and push pin down into place.
Check that both hinge pins are inserted into the hinge barrels before releasing the door.
4. Reconnect the ground wire.
5. Close the front door.
2. Push pin up
2. Connect wire
3. Push pin down
