Baying cabinets together
Z4-‐Series SeismicFrame Cabinets can be bayed (fastened) together with solid side panels in place or
with no side panels, depending on installation requirements. Cabinets must be the same height and
depth.
1. Remove the hole plugs on top of cabinet frame.

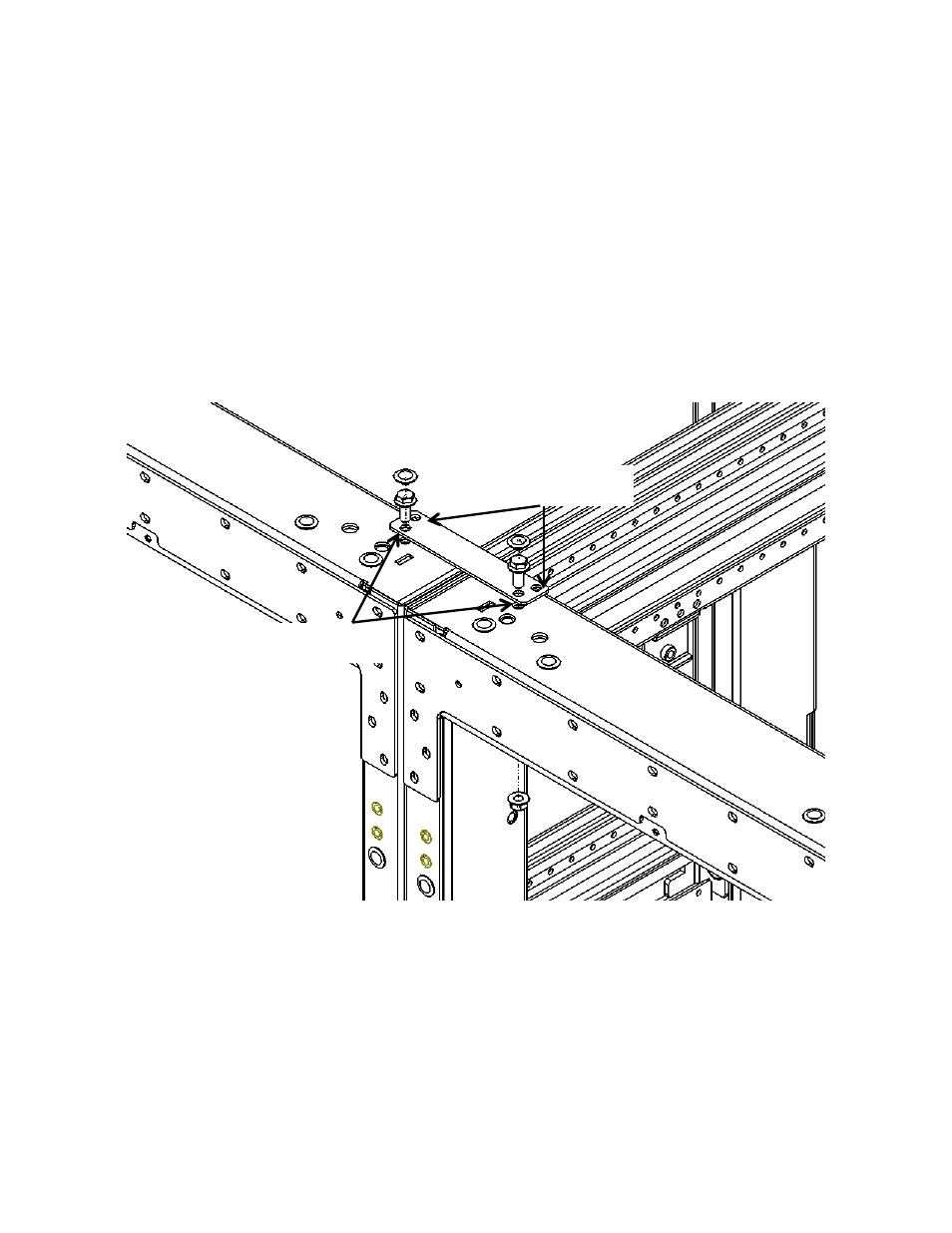

2. Use the supplied hardware and a 13mm Socket wrench to attach the baying bracket (included in
the hardware kit) to the first cabinet. Make sure to use the correct set of holes for the desired
cabinet spacing (24” or 600 mm). The 24” spacing will center two 600 mm wide cabinets over a 24”
access floor tile – spaces cabinets approximately 0.4” (10 mm) apart. The 600 mm spacing will bay
any two cabinets side-‐by-‐side.
3. Move the second cabinet so that the cabinets are aligned.
4. Use the supplied hardware to attach the baying bracket to the second cabinet.
5. Repeat steps 1-‐4 for the other end of the cabinet.
600mm Spacing
24” Spacing
