Configuring the cabinet
The Z4-‐Series SeismicFrame Cabinet can easily be configured for a variety of applications. Not only can
the standard cabinet components be adjusted or removed, but a broad range of accessories can be
installed to create a cabinet solution that meets all the needs of your installation requirements.
Removing and Installing the Front Door
CAUTION: To avoid personal injury and reduce the risk of damaging the door or the
cabinet, one person should support the door while another person retracts the hinge
pins and removes the door from the frame.
Removing the Front Door:
1. Open the front door to 90 degrees so that it is perpendicular to the cabinet. The door is
perpendicular to the cabinet when it is parallel with the side of the cabinet.
2. Disconnect the ground wire.
3. While supporting the door, retract the hinge pin from the lower hinge. Note: the door, hinge pin
and/or hinge may be damaged if the door is not properly supported while being removed. Hold the
door so that it does not lean.
4. Retract pin from upper hinge. Support the door while lifting and moving the door. Once the door is
free of the hinges, move the door away from the frame.

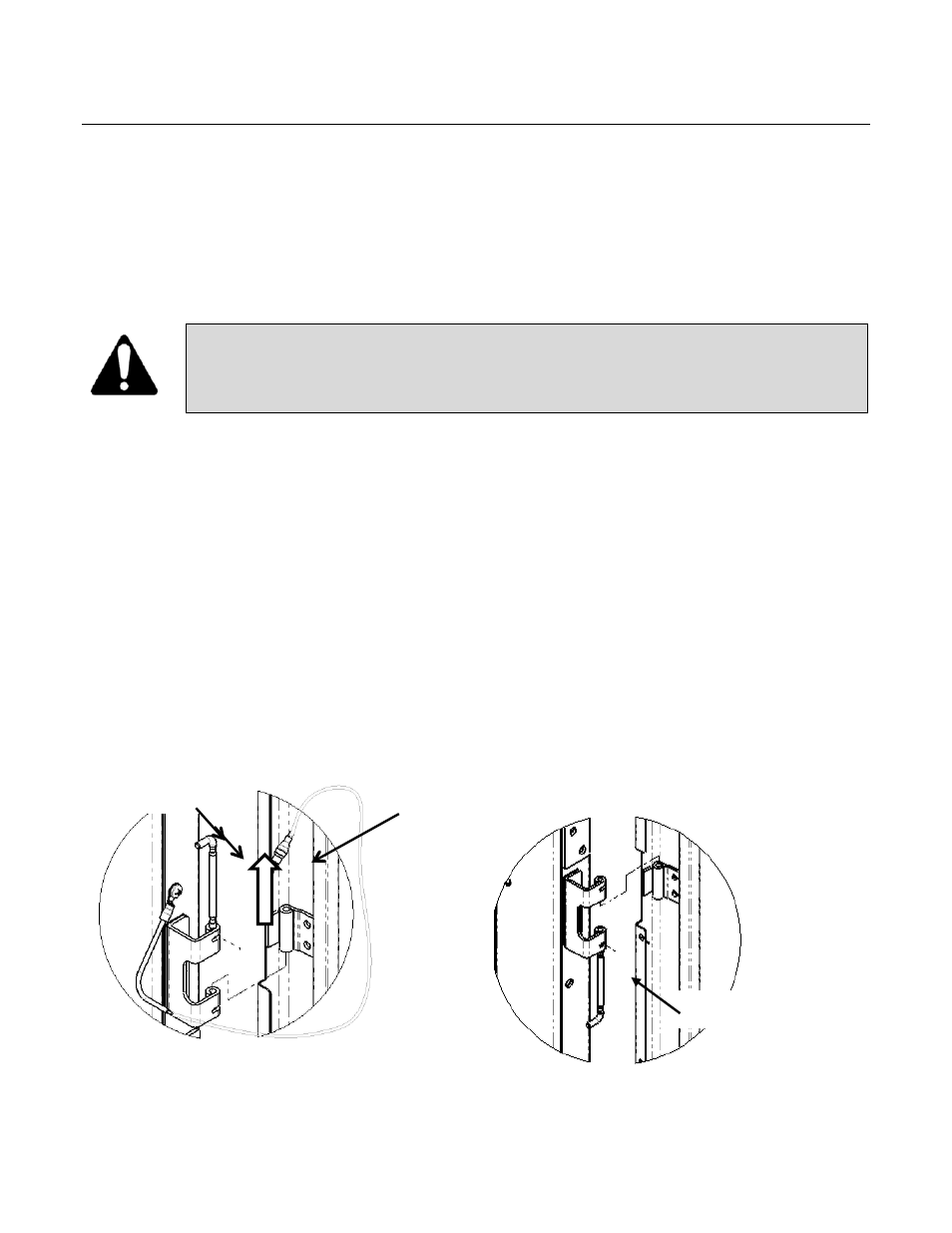

2. Disconnect wire
3. Retract pin
4. Retract pin
