Page%9%of%39% May-10
%

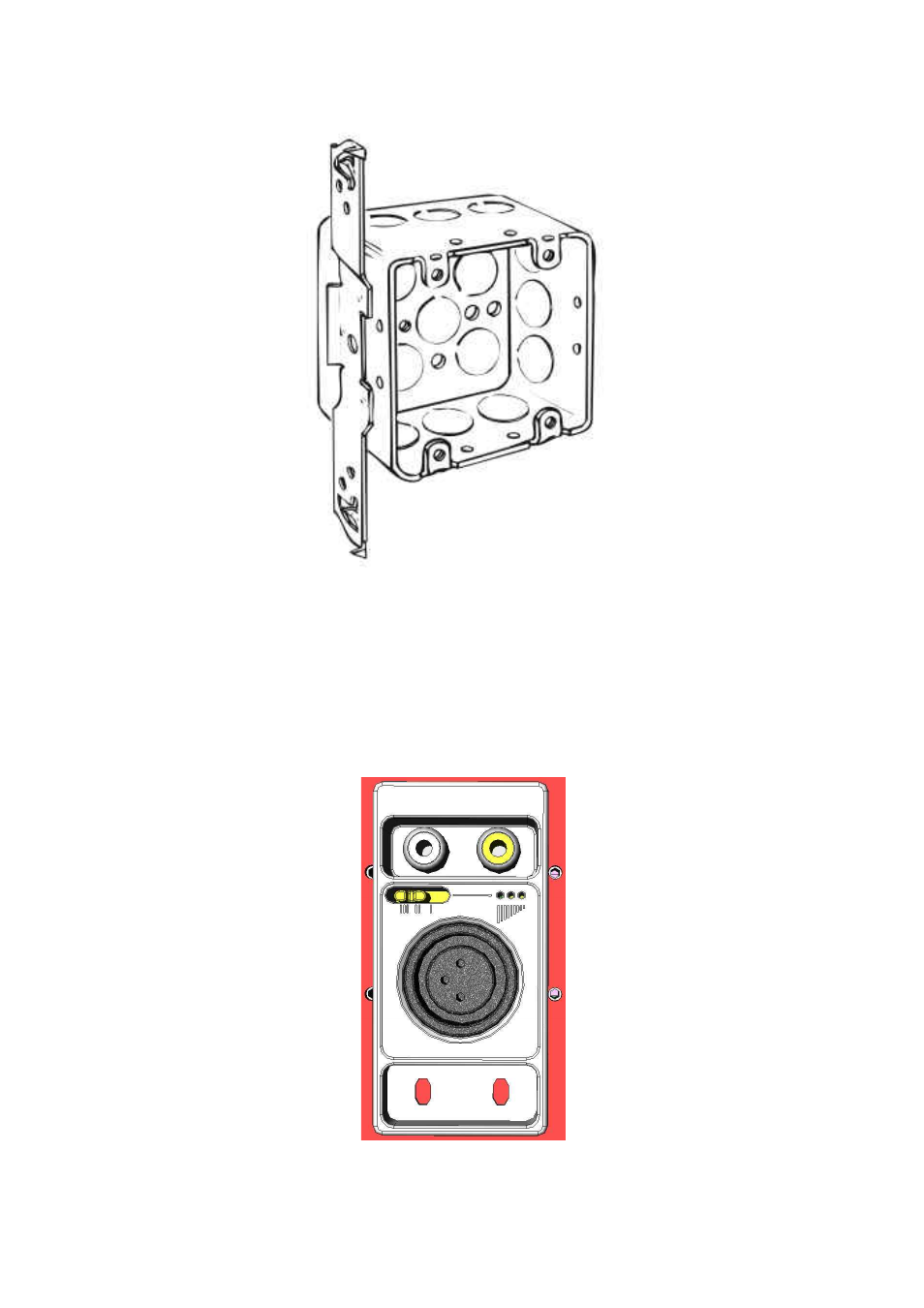

Figure 3-3: RACO™ 681 drywall back box.
3.1.3 USA&labelling&
!
There!is!a!recessed!slot!at!the!bottom!of!the!AMX0.2CN!interface,!suitable!for!a!1”!wide!x!
⅜
”!high!label!see!Figure 3-4.!The!recess!allows!for!labels!of!up!to!5/32”!deep,!which!are!
sufficient!even!for!“Traffolyte”!style!engraved!labels!(typically!⅛”!deep)!containing!an!
aggressive,!permanent!adhesive.!!
Figure 3-4: Graphic showing AMX0.2CN label recess (bottom of fascia plate) with label screw holes.
