4.3.2.4 Gated&Audio&
!
One!output!per!audio!input!channel.!This!is!a!gated!version!of!the!audio!input!channel.!
These!outputs!are!connected!to!the!mixer,!which!produces!the!signal(s)!sent!to!the!
sound!reinforcement!system.!!
!
4.3.2.5 Link&Output&
!
When!this!AMX0.2CN!is!NOT!serving!as!a!link!master!for!the!system,!this!output!
communicates!gate!priority!and!background!level!information!to!the!AMX0.2CN!link!
master!device.!This!output!must!be!connected!to!a!link!input!on!the!Link!master!device!
for!the!system.!!
!
4.3.2.6 Master&link&Output&&
!
When!this!AMX0.2CN!IS!serving!as!a!link!master!for!the!system,!this!signal!must!be!
fanned!out!to!the!mater!link!input!of!all!AMX0.2CN!devices!in!the!system.!
!
4.3.3 AutoMixer&Controls&
!

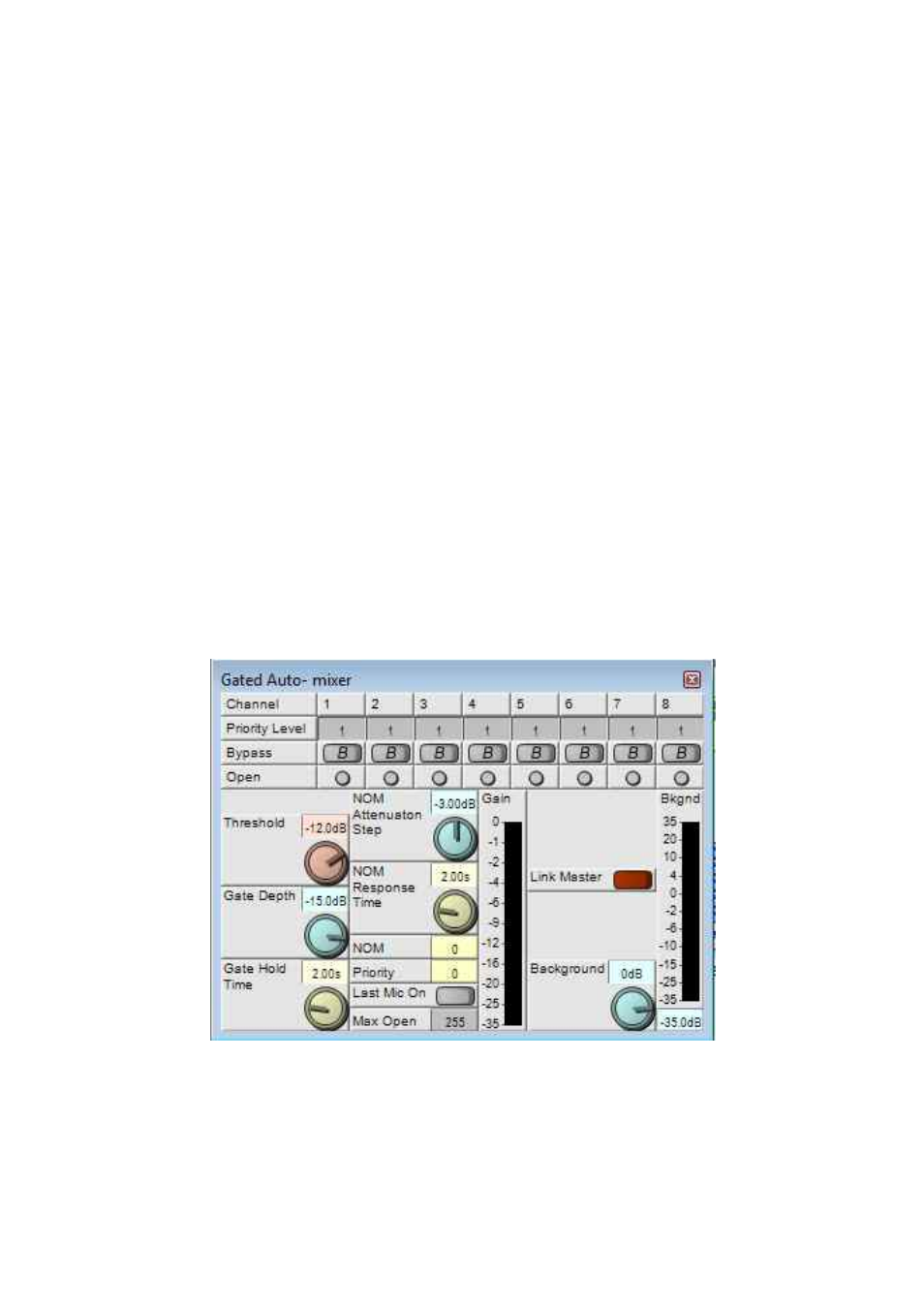

A!summary!of!the!Automixer!control!panel!is!shown!below!(Figure 4-3).!
!
!
Figure 4-3: AutoMixer Controls
!
The!controls!are…!
!
4.3.3.1 Bypass&
!
Type:!Toggle!
