Media Technology Systems AMX 0.2 - Manual (Page 25)

Page%25%of%39% May-10
%
!

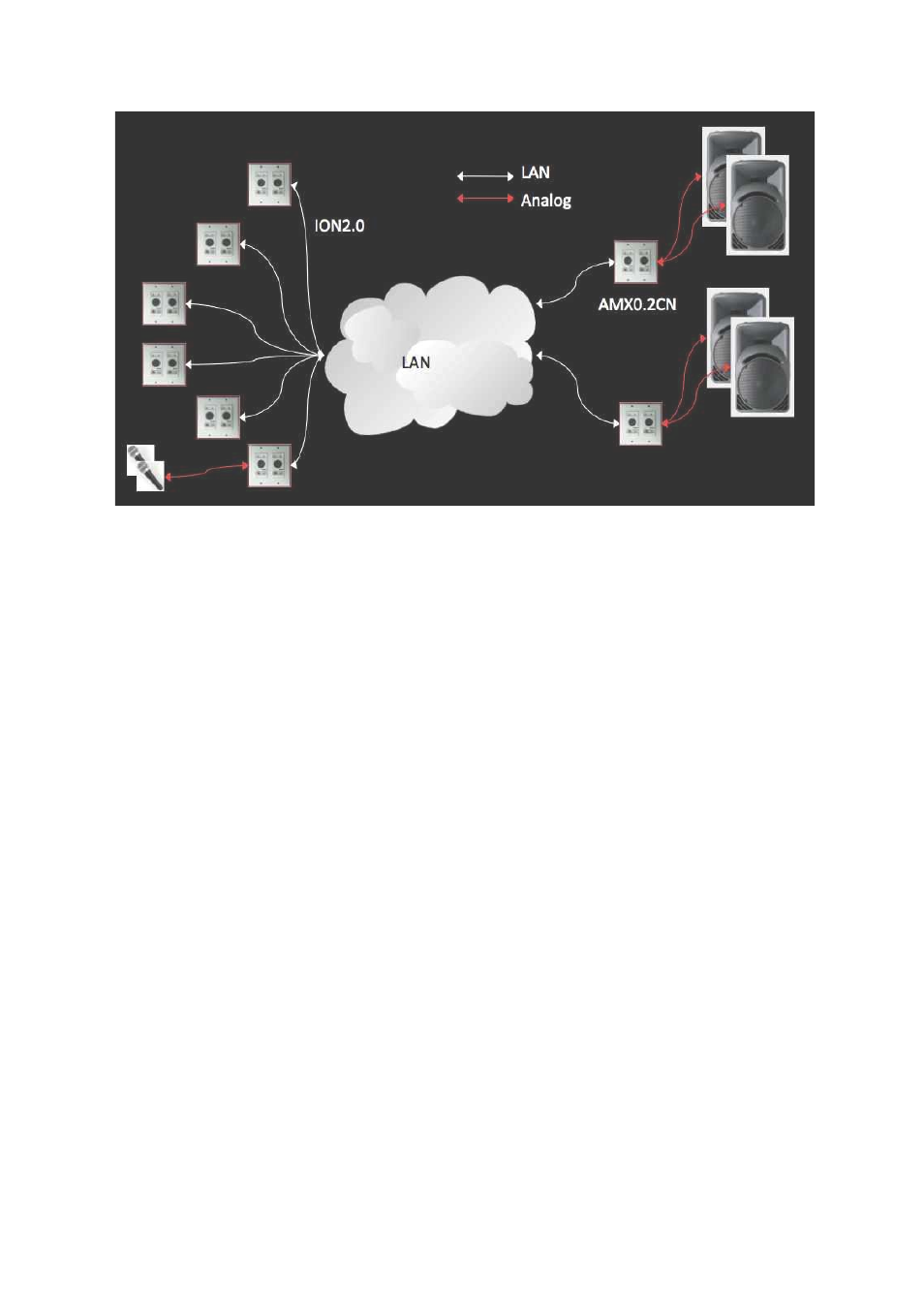

Figure 4-7: Application with six ION2.0 and two AMX0.2CN in linked mode !
The!linking!process!is!complex,!as!the!AMX02CN!is!a!simple!8x2!audio!device!and!
requires!the!configuration!of!multiple!masterLslave!links!and!‘mixLminus’!audio!routing.!
The!configuration!process!will!require!the!following,!depending!on!how!many!
AMX02CN!devices!are!connected…!
!
In!all!configurations…!
!
• There!shall!be!only!one!Master!AMX0.2CN!
• The!Master!(or!standalone)!AMX0.2CN!has!automixer!“Link!Master”!button!ON.!
All!slaves!have!“Link!Master”!button!OFF!
• The!Master!unit!will!take!in!all!link!control!signals!from!the!slave!units,!combine!
with!the!Master!unit!status!and!send!out!a!single!Master!link!control!signal!to!all!
Slaves.!
• Slaves!must!connect!the!incoming!Master!control!link!feed!to!the!first!Automixer!
link!input!ONLY!(ie!slaves!only!use!one!link!input!and!that!should!be!input!9!to!
the!automixer!and!should!be!connected!to!receiver!subchannel!40Lie,!Cobranet!
channel!8).!
• All!Slave!units!will!have!Cobranet!channel!8!in!NetRx!muted!and!Link1!switch!
unmuted.!Slave!unit!Link!2L3L4!switches!will!all!be!muted!to!avoid!accidently!
sending!audio!to!the!AutoMixer!link!inputs.!
• For!ALL!Slave!units,!output!4!of!the!8x8!Matrix!Mixer!provides!the!Cobranet!
Channel!2!audio!signal!feed!to!the!Master.!This!will!be!a!sum!of!the!first!six!
inputs,!as!inputs!7/8!are!used!for!linking,!where!channel!7!will!be!connected!to!
the!audio!input,!as!it!is!the!sum!mix!from!the!second!AMX0.2CN!and!channel!8!is!
linked!to!the!Automixer!channel!9!(the!first!control!link!input).!
• For!all!Slaves,!Receiver!4!(this!assumes!that!receivers!1,!2!&!3!are!connected!to!
ION2.0!for!audio!inputs)!will!be!configured!to!receive!the!unicast!signal!from!the!
Master!AMX0.2CN!device!and!set!the!subchannel!mapping!so!that!receiver!
Channel!1!is!mapped!to!subchannel!40!(ie,!Cobranet!input!channel!8Lthe!linker!
