compressor!with!peak!detector!on!each!of!the!two!analog!output!channels!(see!Figure
4-8
!below).!
!
In!addition,!there!is!an!optional!100mS!delay!that!has!a!separate!feed!from!the!matrix!
mixer!and!can!be!used!either!as!an!unprocessed!feed!to!other!AMX0.2CN’s!or!ION0.2’s!
(for!sequential!100mSL200mSL300mS,!etc!delays),!or!locally!as!a!monoLsum!delayed!
signal.!The!4:2!router!determines!if!the!conventional!or!delayed!feed!is!sent!to!either!
analog!output.!
!
!

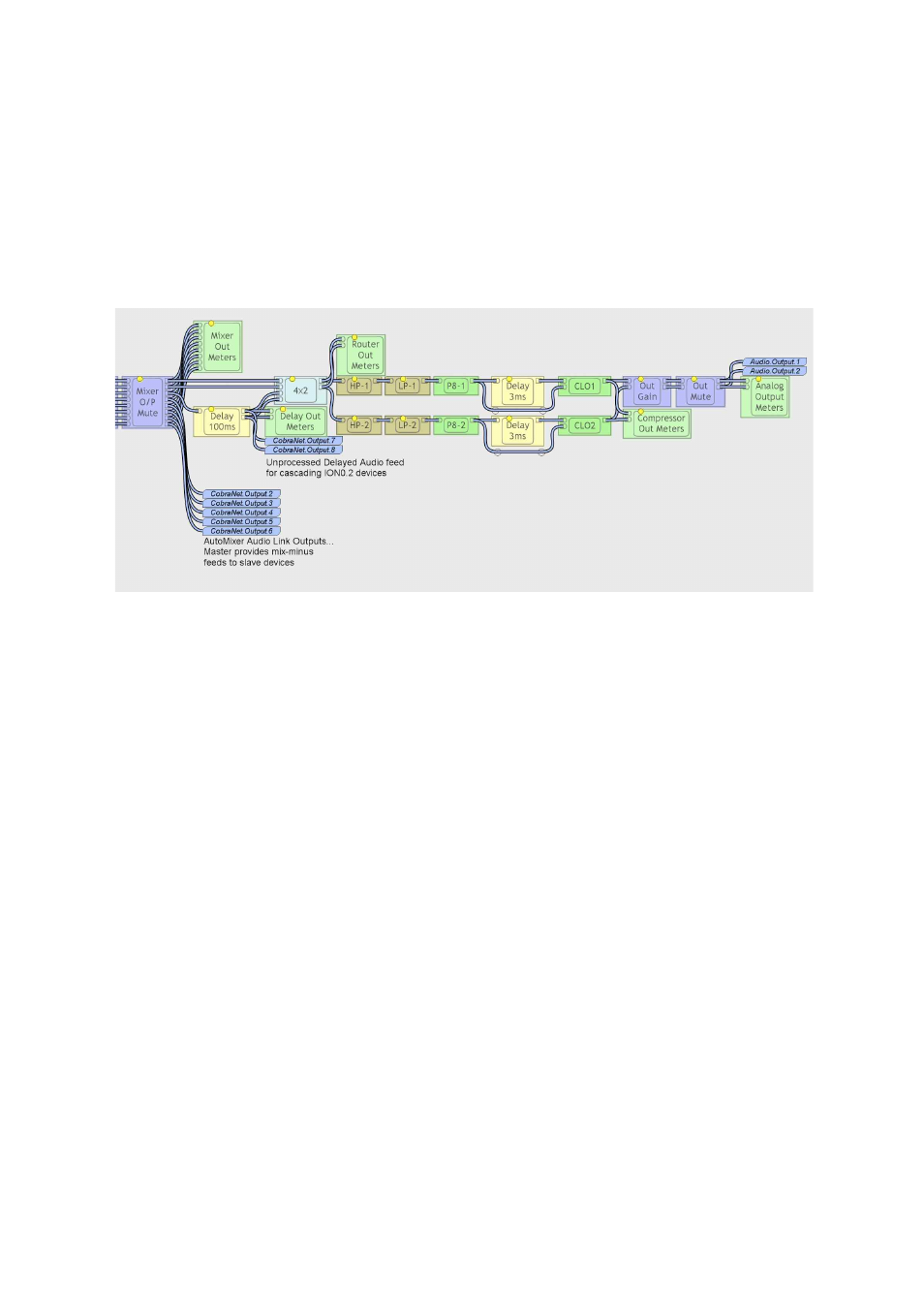

Figure 4-8: Output section DSP of the AMX0.2CN !
!
!
!
! !
!
