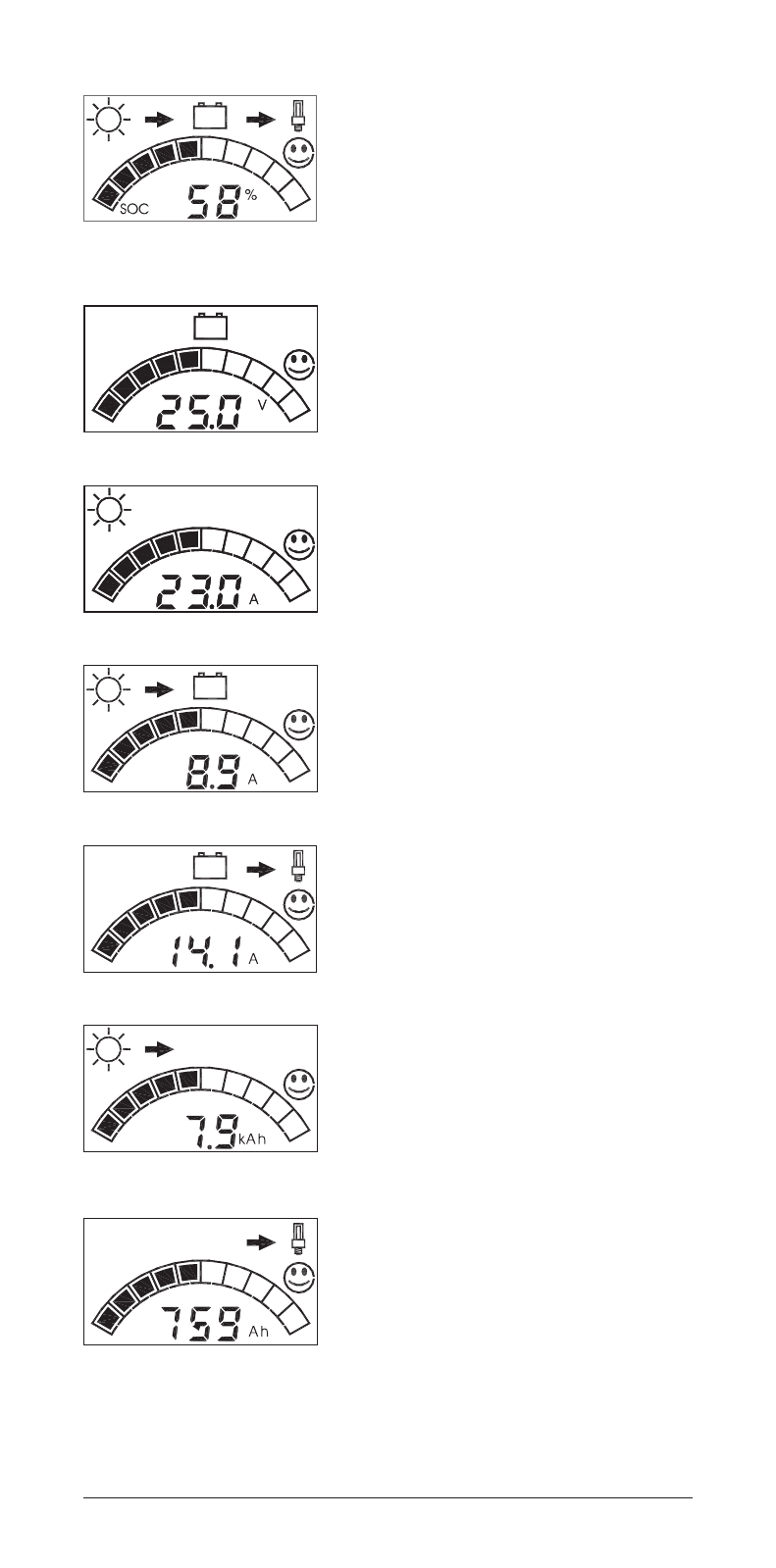

6.2.1 SOC window

Displays the charge state, day / night status

and load on / off status.

In the Voltage control operating mode, the

battery voltage is displayed instead of the

SOC value.

In the Voltage control with bar display oper-

ating mode, the battery voltage is displayed

both alphanumerically and as a bar display.

6.2.2 Voltage window

Displays the battery voltage measured by

the controller.

6.2.3 Module current

Displays the solar module output current.

6.2.4 Charging current

Displays the charging current into the

battery.

6.2.5 Load current

Displays the current being consumed from

the load output.

6.2.6 Ah – Battery charge meter

Displays the total Ah charged into the bat-

tery since initial installation or the last reset

of the meter. Pressing and holding both but-

tons for 3 seconds resets the meter to 0. The

value is retained when the battery is discon-

nected. After reaching a value of 99.9 kAh,

the meter jumps back to 0 Ah.

6.2.7 Ah – Battery discharge meter

Displays the total Ah discharged via the

load output since initial installation or the

last reset of the meter. Pressing and holding

both buttons for 3 seconds resets the meter

to 0. The value is retained when the battery

is disconnected. After reaching a value of

99.9 kAh, the meter jumps back to 0 Ah.
