6 Operation
The display shows numerous types of system data using symbols and num-
bers. All settings and display windows are controlled via the two buttons.

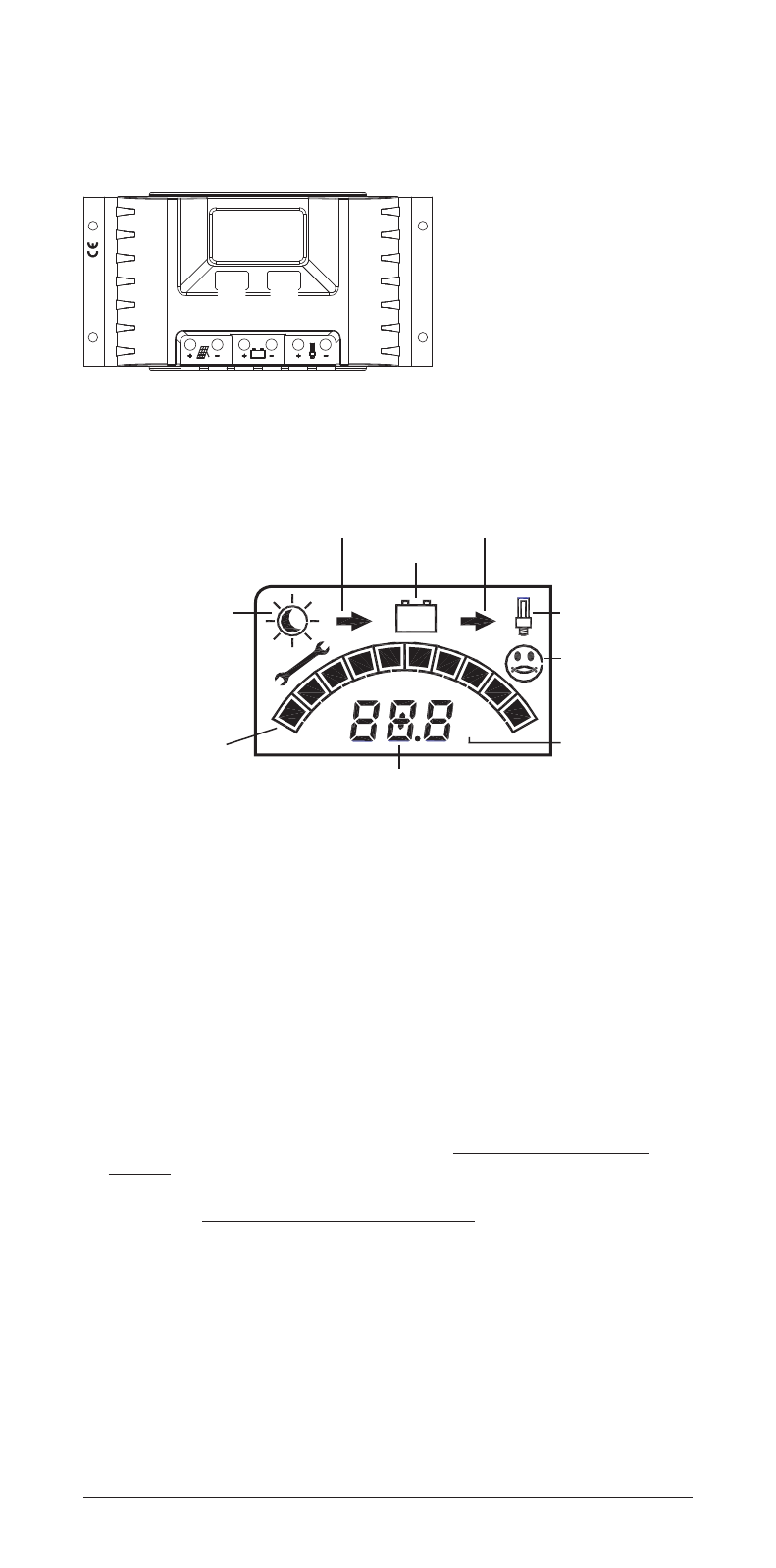

6.1 Display and control elements
187
MADE IN GERMANY
44
96
 Display window for
system information and
error messages

Button for switch-
ing between the display
windows or for accessing
settings

Manual load switch or
confirmation button when
performing settings

 
6.2 Display windows
SOC h kA
%V
Symbols for current direction
Battery symbol
Load symbol
Face symbol for
system status
Units display
Sun: Charge / Day
Moon: Night
Tool symbol for
error messages
SOC bar display
SOC = state of charge
7-segment display for
text and numerals
The display windows contain different types of system information. The left
button can be used to switch between the different display windows. After
the last window, the first window is displayed once more.
The following figures show examples of system information in the SOC con-
trol operating mode. The following differences exist in the Voltage control
and Voltage control with bar display operating modes:
• Voltage control: The windows do not contain any SOC bar display. The
SOC window shows the battery voltage instead of the SOC.
• Voltage control with bar display: The bar display shows the battery
voltage in all windows. The SOC window shows a numerical value for the
battery voltage instead of the SOC.
Notes:
• Changing the operating mode: see Section Accessing and changing
settings.
• Scaling of the bar display in the Voltage control with bar display mode:
see Section Technical data / Bar display scaling.
Note that the accuracy of the bar display cannot be compared with the
accuracy of a measuring device!
