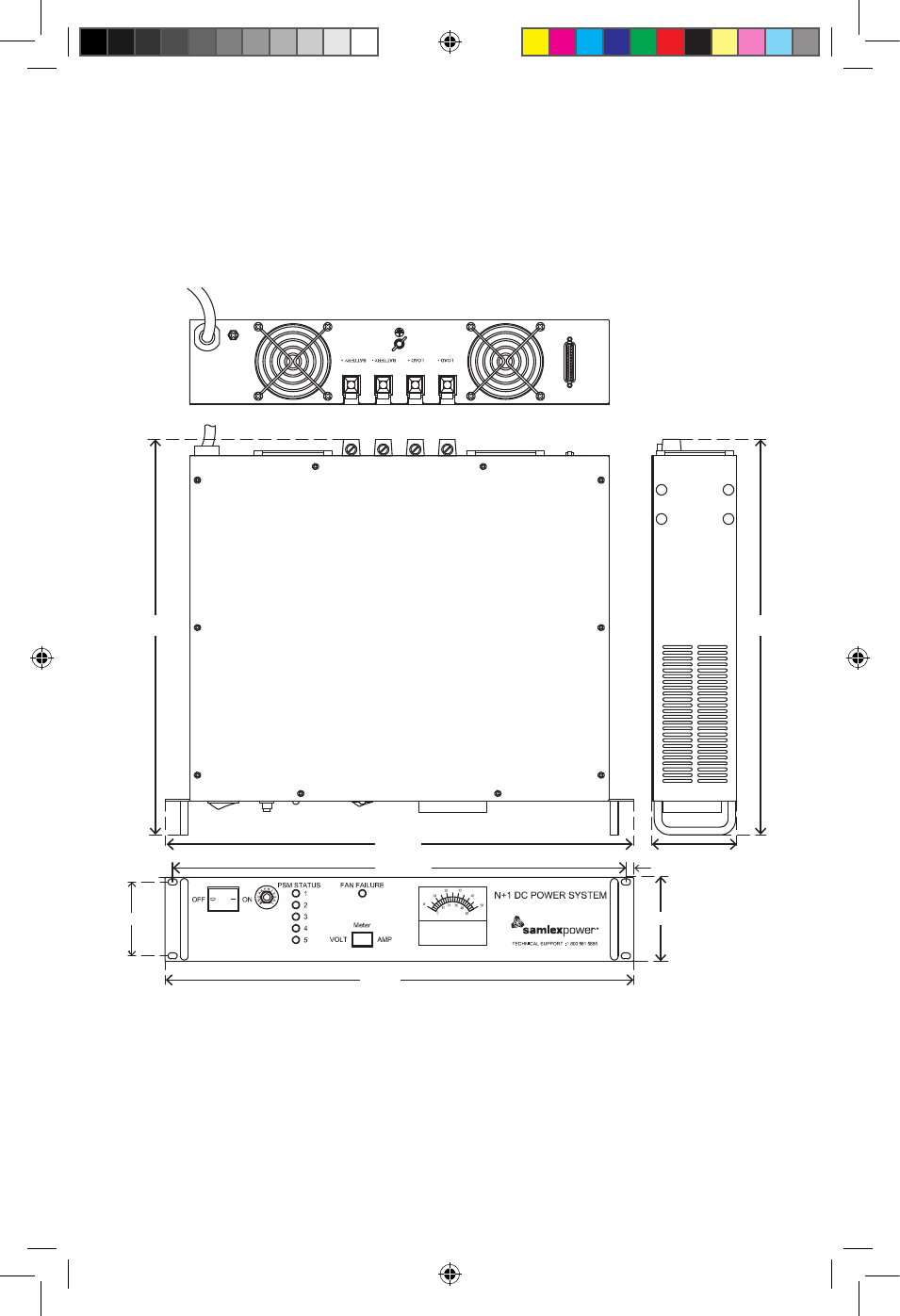

Fig. 2.2 DIMENSIONS
76.2
407.6
87.7
1. Dimensions Overall
(including protrusions)
Wide(W): 482.6 mm / 19.00”
Depth (D) : 407.6 mm / 16.05”
Height (H): 87.7 mm / 3.45”
2. Dimensions (Mounting Holes)
Width (W): 466.73 mm / 18.38”
Height (H): 76.2 mm / 3.00”
407.6
482.6
87.7
466.73
482.6
407.6 407.6
7.94
Section 2 | Layout, output connection
& Dimensions
Fig. 2.2 Dimensions
