Install the lamp – LBL Lighting Tubes 7 SP User Manual
Page 6
1
4
7
6
5
2
3

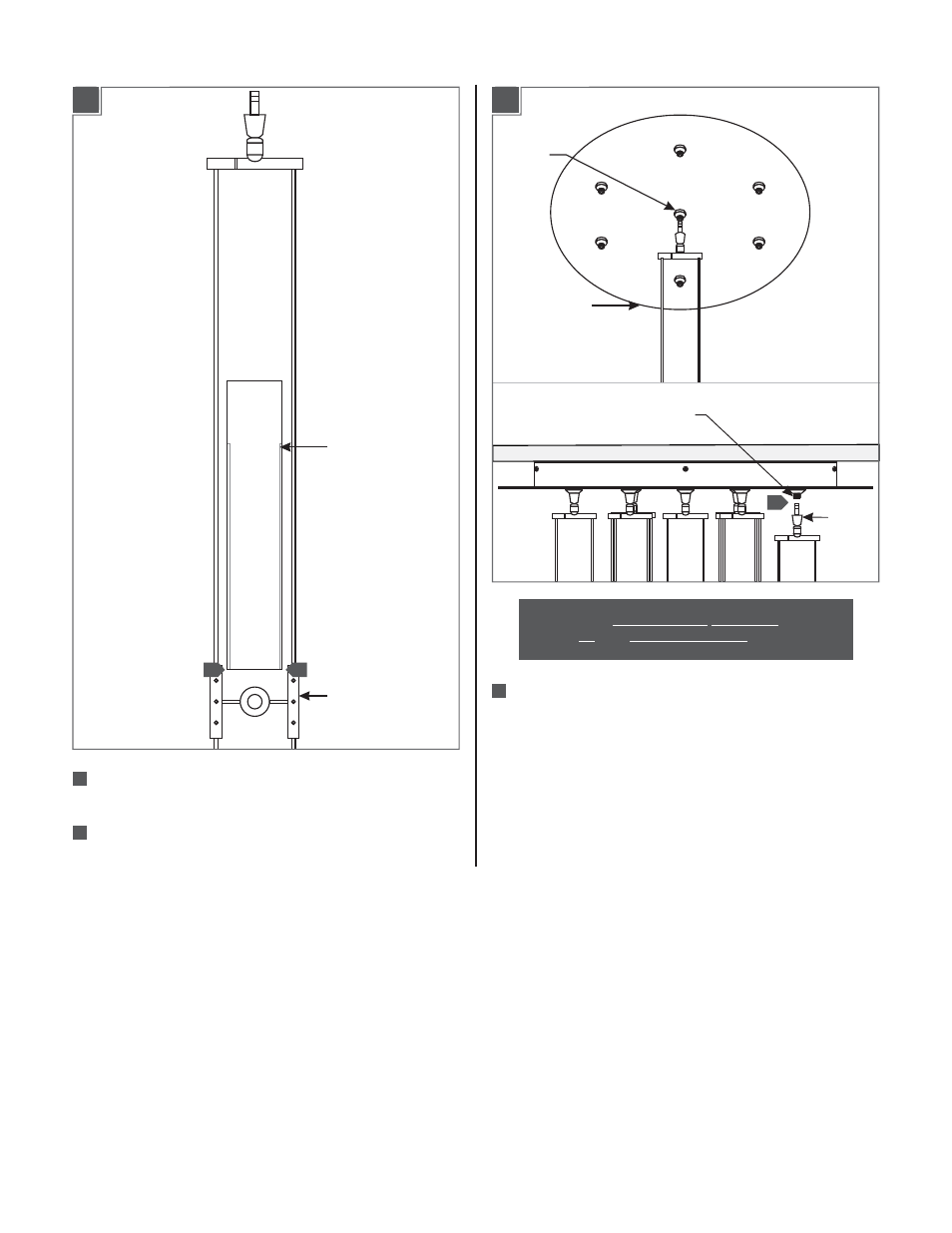

From between the fixture rods, carefully place a glass shade
onto each socket assembly.
Repeat steps 1 through 3 to install the lamp for the remaining
fixture arms.
SOCKET ASSEMBLY
GLASS SHADE SLOT
6
Install the Lamp
FUSION
JACK PORT
FIXTURE
FUSION
JACK
CAUTION:
load per
RISK OF FIRE. Maximum
port is
watt.
75
Do Not Overload!
Starting with the center fusion jack port labeled 1 in the
canopy insert fixture arm labeled 1 by pushing and then
screwing the fixture arm Fusion Jack completely into the
Fusion Jack port and repeat for the following fixture arms.
CANOPY
FUSION
JACK PORT
3C
3
4A
1
4
3
3
1
