1h 1f 1e 1g – LBL Lighting Tubes 7 SP User Manual
Page 2
1H
1F
1E
1G
8
2

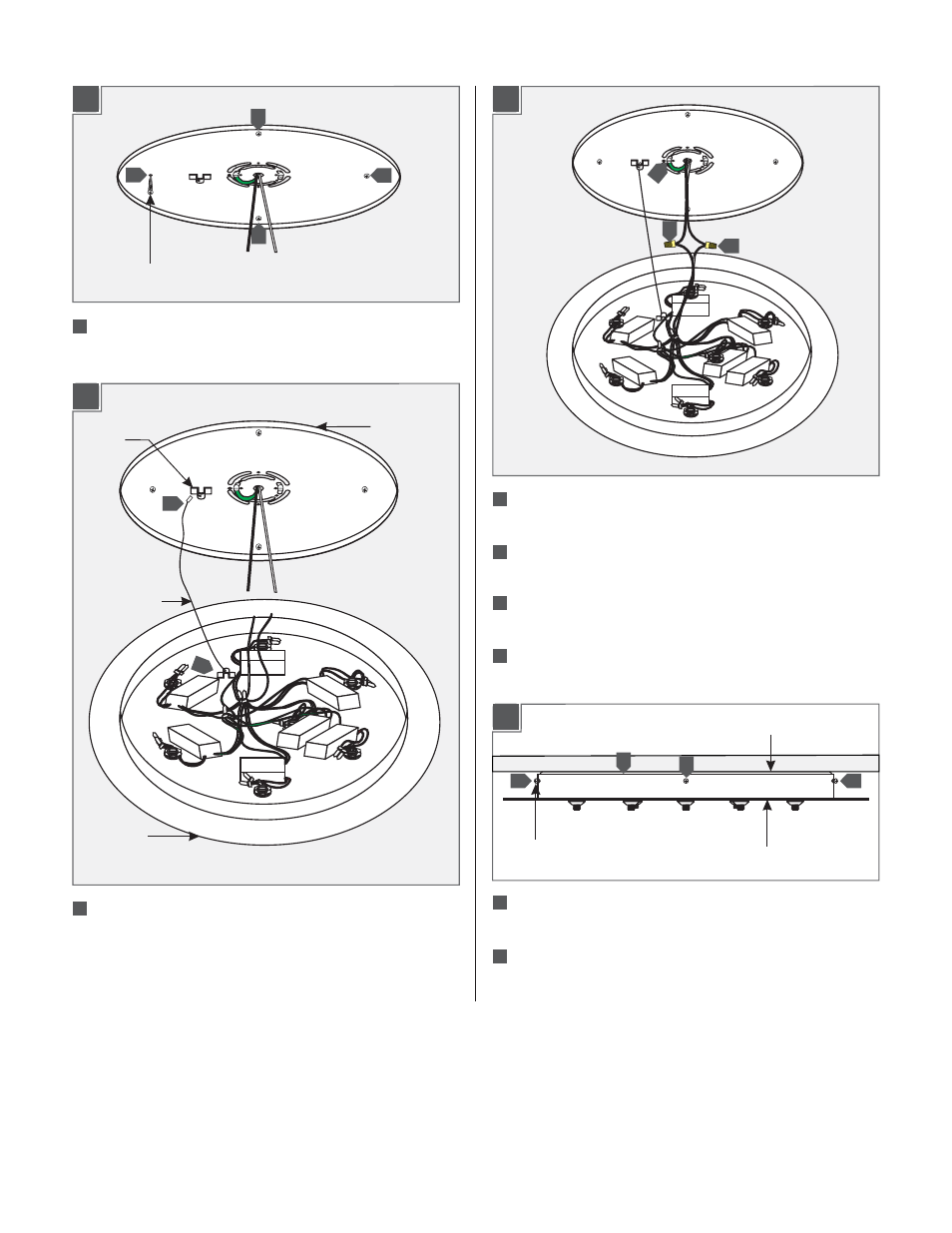

Secure the mounting plate to the anchors with the provided
#8 screws.
#8 SCREW
SAFETY CABLE
Insert one end of the safety cable into the mounting plate
safety bracket and insert the other end into the housing safety
bracket.
SAFETY
BRACKET
HOUSING
MOUNTING
PLATE
Make sure the mounting plate is grounded in accordance with
local electrical codes.
Connect the housing white wire to the neutral power line wire
with a wire nut.
Connect the housing black wire to the hot power line wire
with a wire nut.
Place all wires and wire nut connections properly inside
the housing.
#8-32 SCREW
MOUNTING PLATE
CANOPY HOUSING
Slide the housing onto the mounting plate and line up the
housing holes with the mounting plate holes.
Replace and tighten the three #8-32 screws to secure the
housing in place.
9
14
15
10
11
12
13
8
8
8
8
9
9
14
15
15
15
10
12
11
