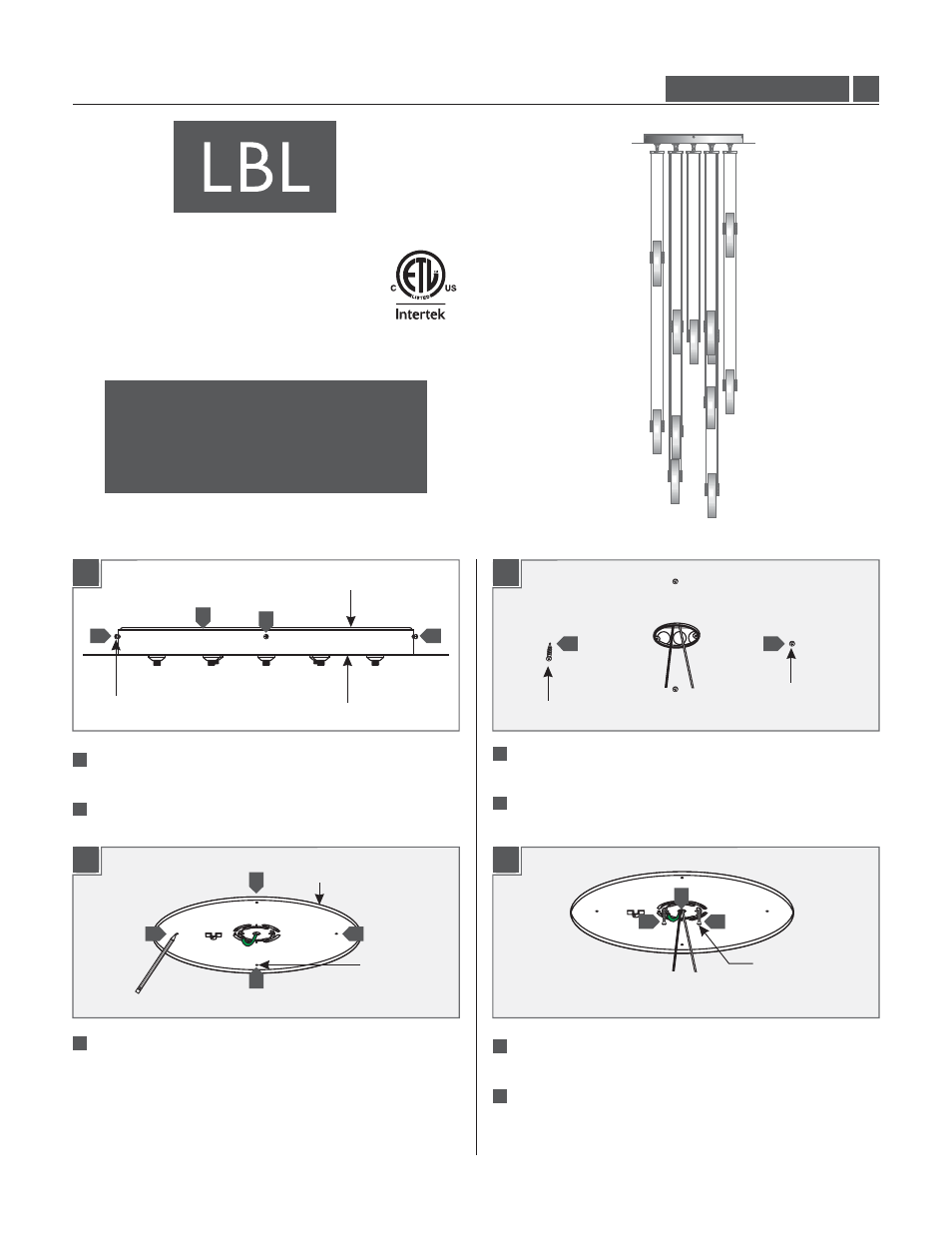

Installation Instructions for
Tubes Seven 1.0 HS72932/1FR_1B35
980TUBES7SP
G P I : ENERAL RODUCT NFORMATION
This product is suitable for indoor dry locations only.
This product can be dimmed with a standard incandescent dimmer.
1
Install the Canopy
#8-32 SCREW
MOUNTING PLATE
CANOPY HOUSING
Remove the three #8-32 screws on the sides of the canopy
housing.
Lift the mounting plate out from the canopy housing.
MOUNTING PLATE
With a hammer tap the anchors at the marked points into the
ceiling up to the threaded portion.
Screw the anchors in the rest of the way with a Phillips
screwdriver.
ANCHOR
ANCHOR
Feed the power line wires through the mounting plate
center hole.
Line up the two mounting plate slots with the electrical box
holes and use the two provided #8-32 screws to mount it to
the electrical box.
#8-32 SCREW
Align the mounting plate holes with the electrical box holes
and mark four points onto the ceiling through the mounting
holes.
7
7
MOUNTING
PLATE HOLE
1A
1 1
2
3
4
5
6
7
Suspension
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
6
4
2
1
1
1
3 3
3
3
7 7
5
