Page 3

(H)

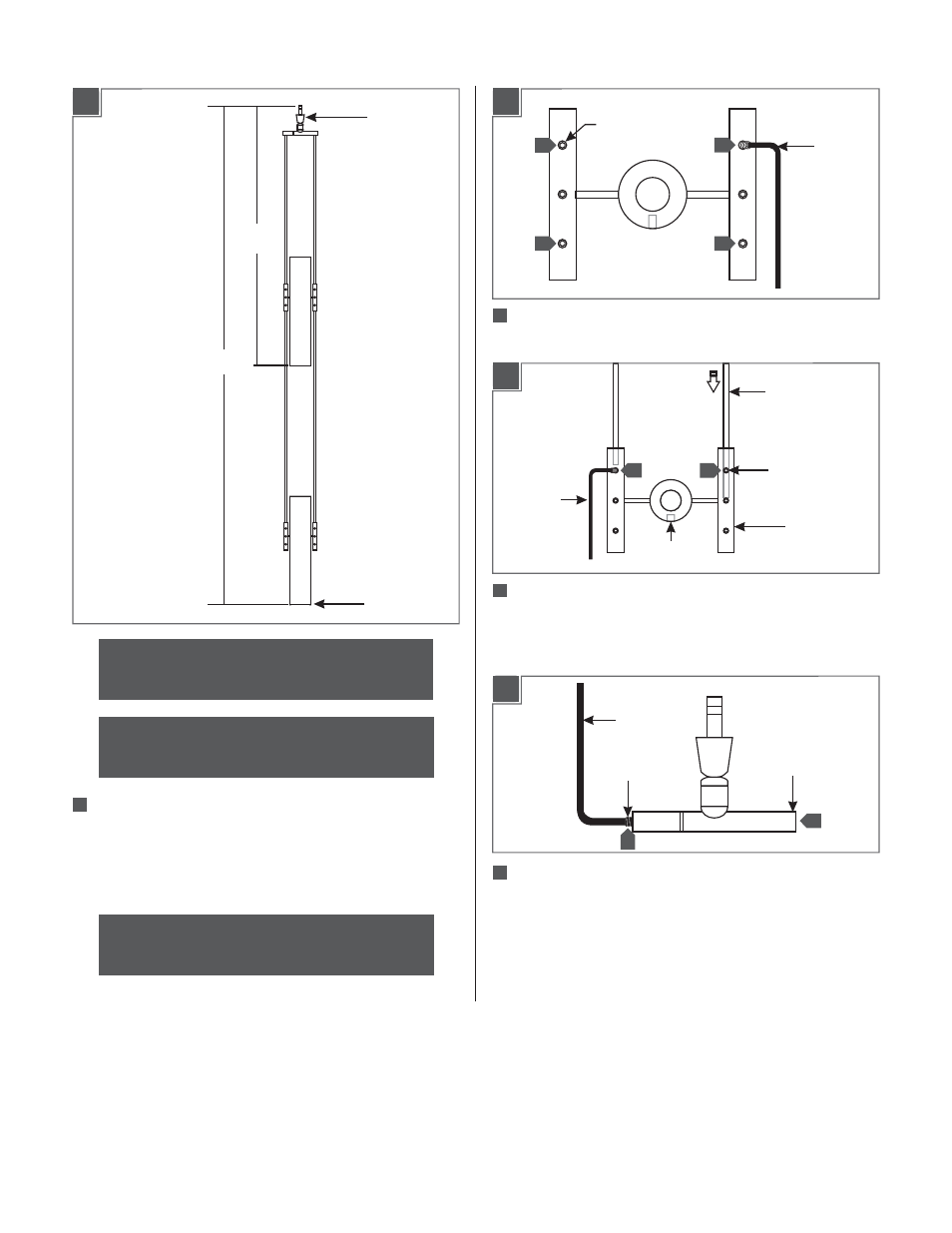

Assembling the Fixture Arms

The overall fixture height (H) is measured from bottom of the

bottom glass shade to the end of the fixture Fusion Jack.

Determine the overall desired fixture height.The height (H1) is

from the bottom of the top shade to the end of the fixture

Fusion Jack.

GLASS SHADE

FIXTURE
FUSION
JACK

(H1)

M3 SET
SCREW

1.5 MM
ALLEN
WRENCH

Loosen

the four M3 set screws on the

(Do Not Remove)

socket assembly rods.

Loosen

the two M3 set screws on the

(Do Not Remove)

sides of the Fusion Jack assembly rod with the provided

1.5 MM Allen Wrench.

M3 SET SCREW

1.5 MM ALLEN

WRENCH

FUSION JACK
ASSEMBLY ROD

M3 SET
SCREW

FIXTURE ROD

Insert the two fixture rods on the opposite side of socket pin

holes, completely into the socket assembly rod and secure into

place by tightening the M3 set screws with the provided

1.5 MM Allen wrench.

1.5 MM ALLEN
WRENCH

SOCKET
ASSEMBLY
ROD

SOCKET
PINHOLE

NOTE: Save the number on the packaging to later
install to canopy for proper orientation.

NOTE: The fixture arms vary in lengths follow
steps 1-13 for a typical installation.

Optional: The Fixture Rods can be field cuttable to
a desired Height.
