1.5 Installing the Software
1.5.1 MOGD#
MOGD# is the latest updated version of MOGD and can be used to manage font and graphics downloads
as well as exercise all of the features of our graphical displays. MOGD# provides a new user friendly
interface as well as many feature enhancements.
To install MOGD# from the Matrix Orbital CD, follow the following steps:
1. Insert the Matrix Orbital Cd-ROM into the Cd drive
2. Locate the file MogdSharp.zip, which should be in the “CD-drive:\Download” directory
3. Unzip MogdSharp.zip to a temporary directory using a program such as Winzip, Pkzip, etc.
4. Double click on "setup.exe"
5. Follow the instructions on the screen to complete the installation
6. MOGD# requires the .NET framework 2.0 and will download and install it automatically
After the installation is complete there will be a Matrix Orbital entry under “Start->Programs->Matrix Or-
bital” in the start menu. Click on the ’Mogd Sharp’ entry to run the program.
Be sure to check the information selected in the configuration panel the first time MOGD# is run. Once
this information is entered correctly the program can be used to control all functions of the graphic display.
Port The serial port the display is plugged in to.
Speed The communication speed the display
module is set to. (Default 19,200)
Display Type The type of display. (GLC24064)
PCB Revision The revision of the display you are using.
(Found on the back of the PCB)

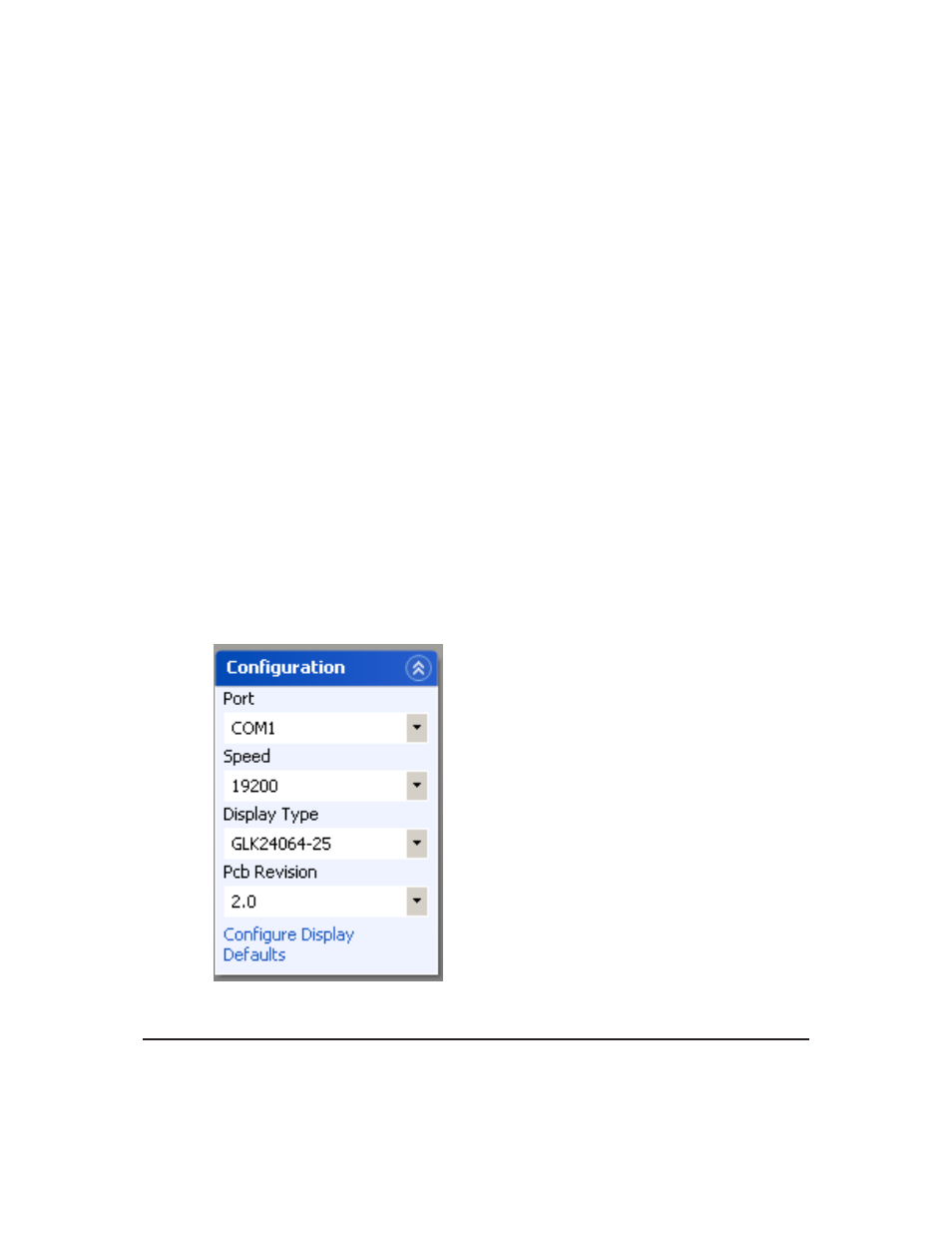

Figure 9: Mogd Sharp Settings
