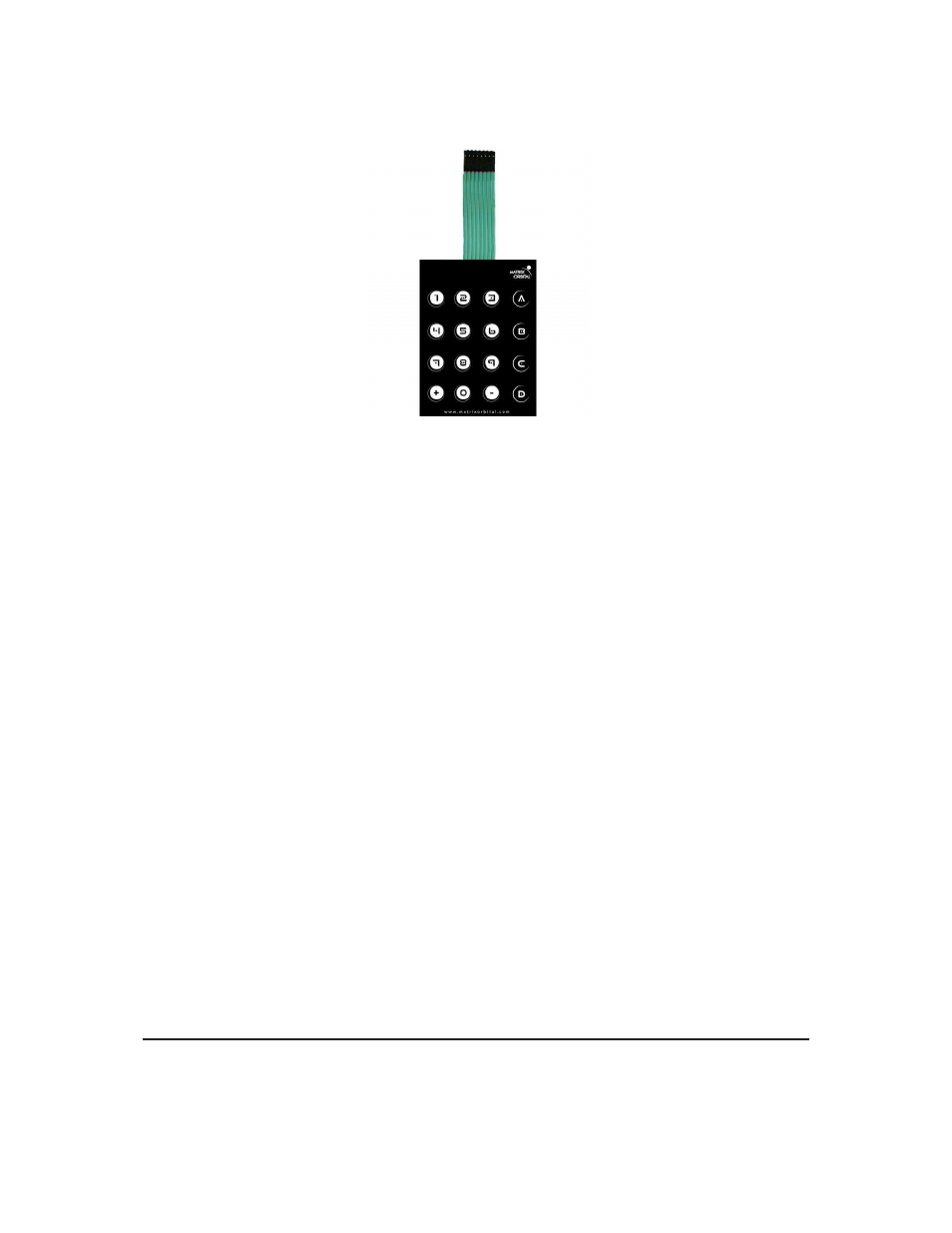

Figure 8: 4X4 Keypad

1.3

Features

• 240 x 128 pixel graphics display
• Selectable communication protocol, Serial at RS-232 or TTL levels or I

2

C

• 16 KB flash memory for fonts and bitmaps
• Lightning fast communication speeds, up to 115 kbps for RS-232 and 100 kbps for I

2

C

• Adjustable contrast and backlight brightness
• Extended temperature available for extreme environments of -20C to 70C
• Extended voltage and efficient power supply available
• Support for up to a twenty-five key matrix style keypad

1.4

Connecting to a PC

The GLK240128-25 connects seamlessly to a PC and it is an excellent means of testing the functionality

and uploading new fonts and bitmaps. You will require a standard RS-232 9-pin serial cable such as the one
pictured in

figure 6 on the previous page

, as well as a modified 5V power adapter such as the one pictured in

figure 3 on the preceding page

.

In order to connect your display to a personal computer follow these easy instructions:

1. Plug the serial cable into the com port you wish to use.
2. Connect the modified 5V power adapter to a power lead from your PC power supply (you will have to

open your computer case).

3. Connect the serial cable to the DB-9 connector on the back of the display.
4. Connect the 5V power adapter to the 4-pin connector on the back of the display.

Matrix Orbital

GLK240128-25

3
