WARNING

Do not apply voltage through pin 9 of the DB-9 connector

AND through the Power/Data Connector at the same time.

2.2

Power/Data Connector

The Power/Data Connector provides a standard connector for powering the display module. The GLK240128-

25 requires five volts for the standard display module, between nine to fifteen for the wide voltage (V) and
between nine to thirty-five volts for the wide voltage with efficient power supply module (VPT). The volt-
age is applied through pins one and four of the four pin Power/Data connector. Pins two and three are
reserved for serial transmission, using either the RS-232/TTL or the I

2

C protocol, depending on what has

been selected by the Protocol Select Jumpers. Pins two and three may be reversed by changing the Legacy
Connector Jumpers
in order to be compatible with previous PCB revisions.

Pin

1

PWR

(See table ?? on page ??)

Pin

2

Rx \ SCL (I

2

C clock)

Pin

3

Tx \ SDA (I

2

C data)

Pin

4

GND

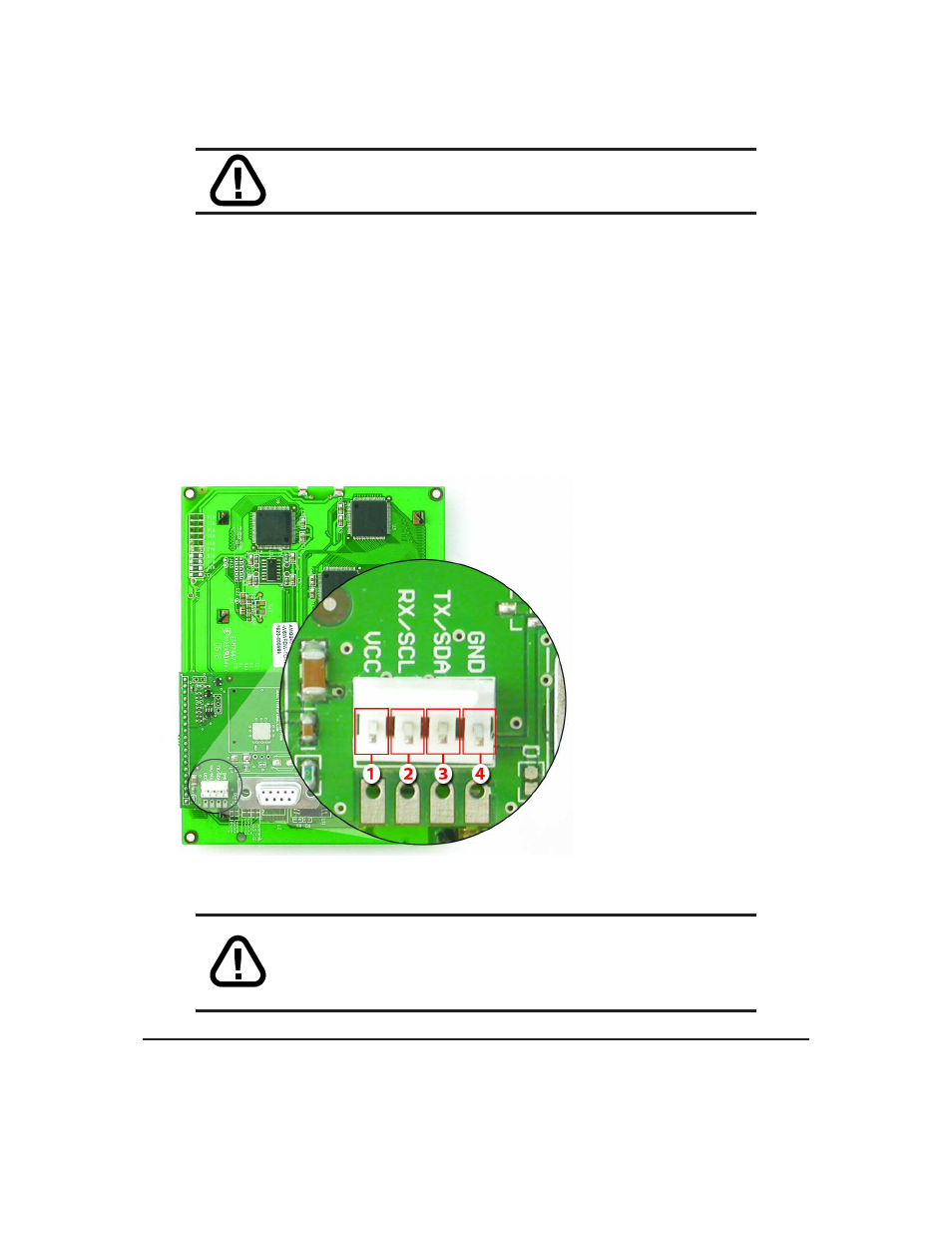

Figure 14: Power Connector and Pin-out

WARNINGS

• Do not apply any power with reversed polarization.
• Do not apply any voltage other than the specified voltage.

Matrix Orbital

GLK240128-25

8
