Page 10

Port
The serial port the display is plugged in to.
Speed
The communication speed the display
module is set to. (Default 19,200)
Display Type
The type of display. (GLK240128-25)
PCB Revision
The revision of the display you are using.
(Found on the back of the PCB)

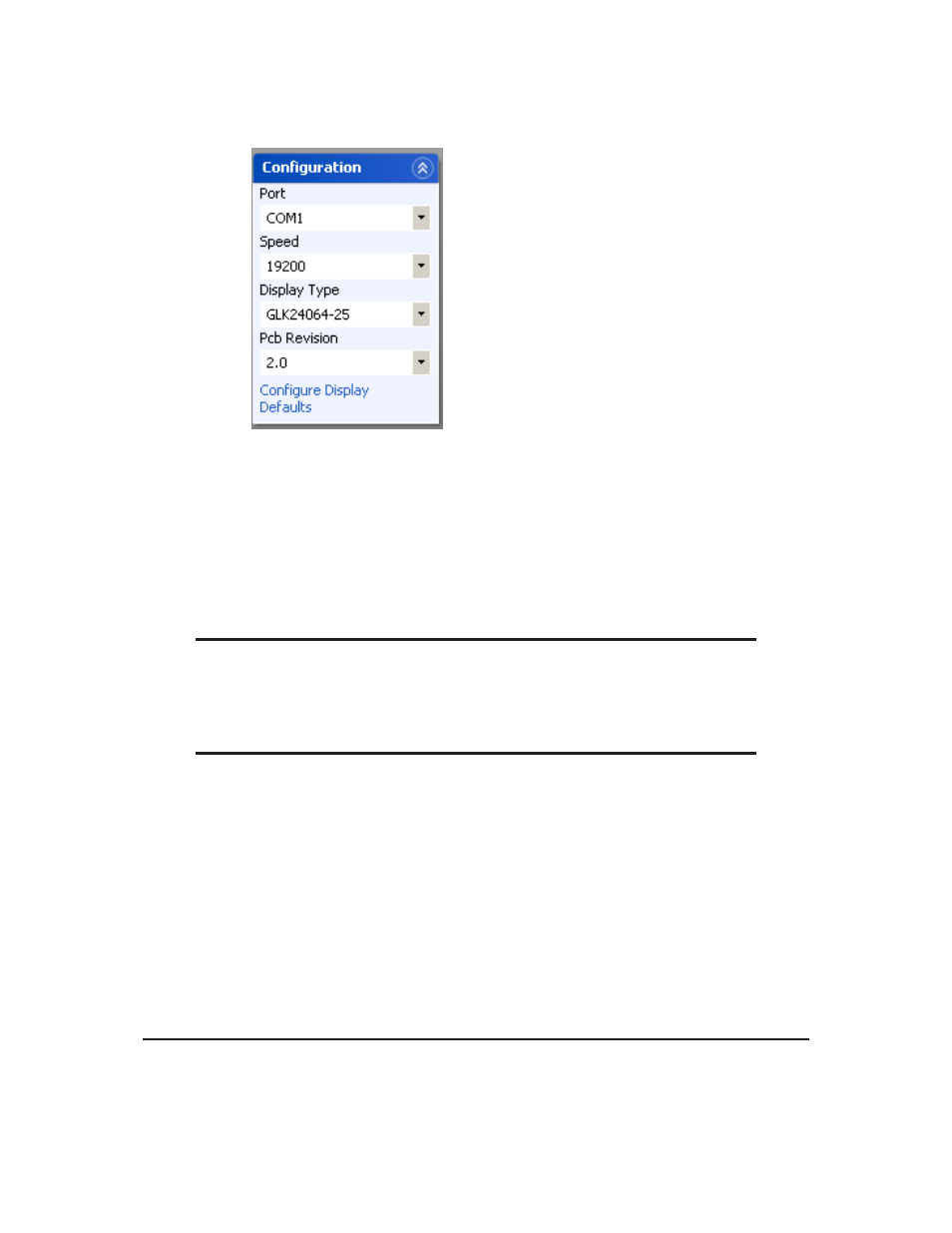

Figure 10: Mogd Sharp Settings
NOTES
• MOGD# may also be downloaded from Matrix Orbital’s support site at
http://www.matrixorbital.ca/software/software_graphic/MogdSharp
• Winzip is available as a free download from http://www.winzip.com
2
Hardware Information
Refer to the following diagram for this chapter:
Matrix Orbital
GLK240128-25
5
