1 Getting Started

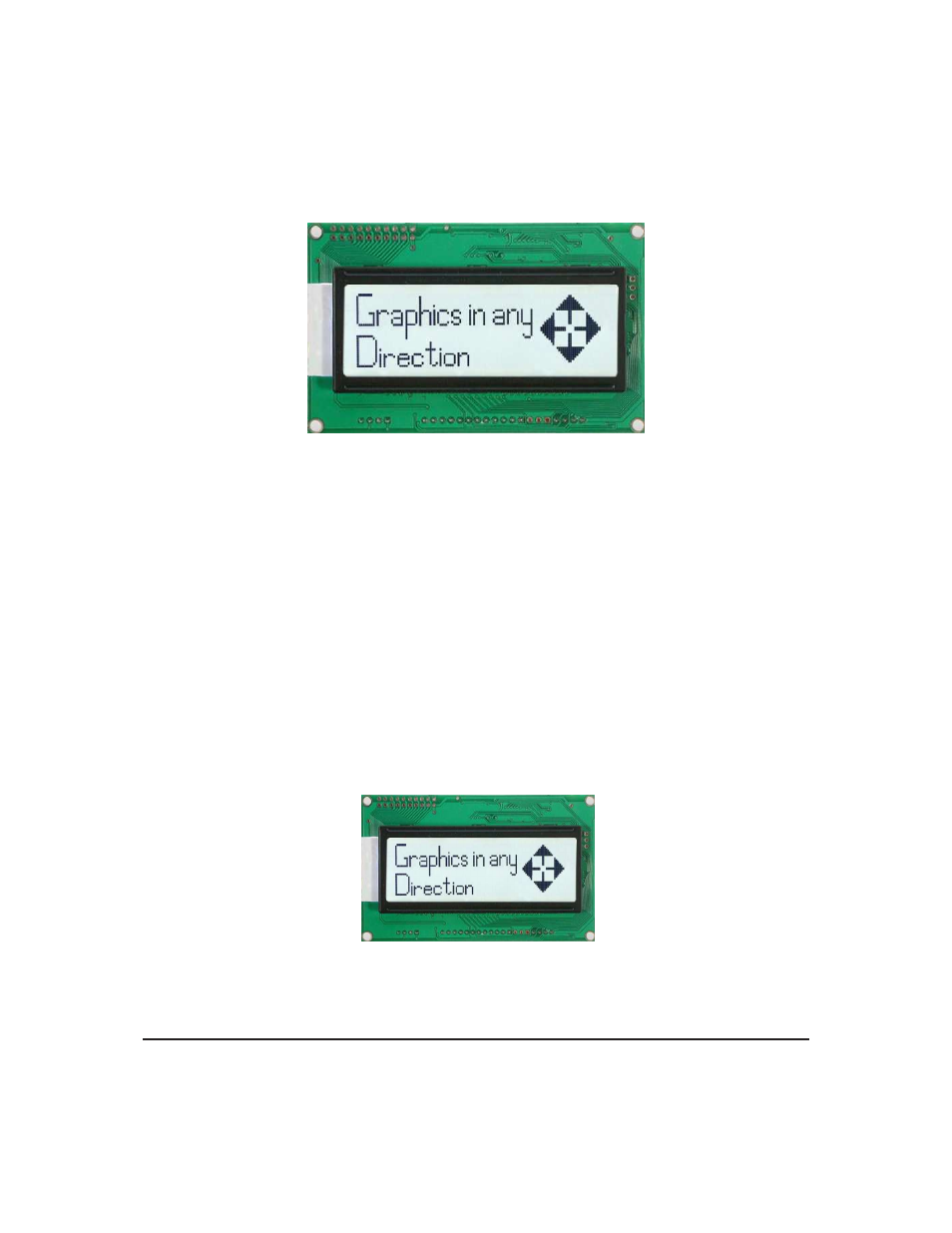

Figure 1: GLK12232-25
The GLK12232-25 is an intelligent graphic LCD display designed to decrease development time by
providing an instant solution to any project. With the ability to communicate via serial RS-232/TTL and I 2 C
protocols, the versatile GLK12232-25 can be used with virtually any controller. The ease of use is further
enhanced by an intuitive command structure to allow display settings such as backlight brightness, contrast
and baud rate to be software controlled. Additionally, text and fonts may be uploaded to the display and
stored in the on board memory.
1.1 Display Options Available
The GLK12232-25 comes in a variety of color and temperature options to allow you to select the display
which will best fit your project needs.
Figure 2: GLK12232-25 Options
Matrix Orbital GLK12232-25 1
