WARNING DO NOT use the standard floppy drive power connector,
as this will not provide you with the correct voltage and will damage the
display module. Also note that the V/VPT module is an add-on. Please
contact a Sales-Representative for additional information.

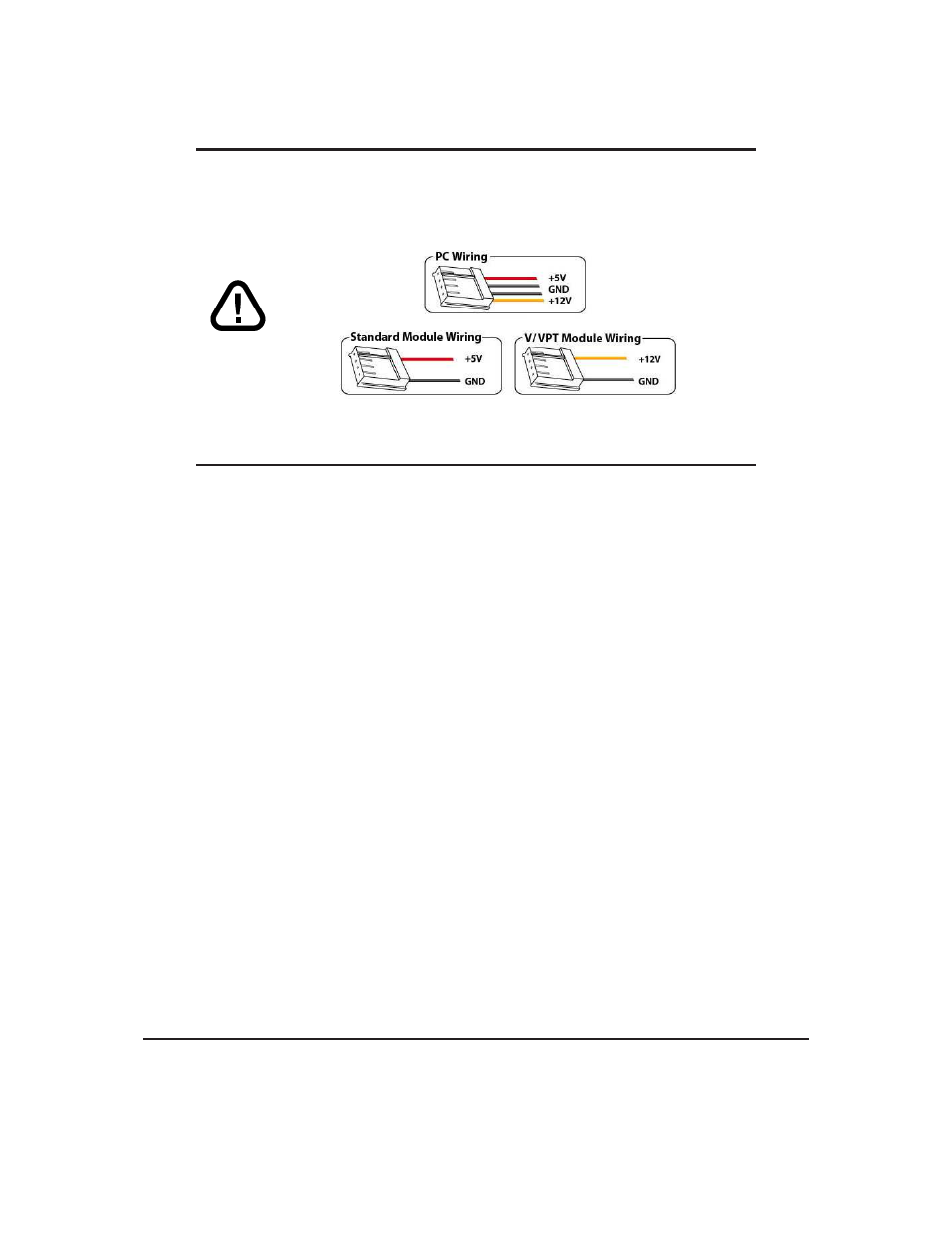

Figure 9: PC vs Matrix Orbital Display Module Wiring
1.5 Installing the Software
1.5.1 MOGD#
MOGD# is the latest updated version of MOGD and can be used to manage font and graphics downloads
as well as exercise all of the features of our graphical displays. MOGD# provides a new user friendly
interface as well as many feature enhancements.
To install MOGD# from the Matrix Orbital CD, follow the following steps:
1. Go to the website location: http://www.matrixorbital.ca/software/software_graphic/MOGDsharp/
2. Click on "Download Here"
3. Locate the file MogdSharp.zip on your desktop
4. Unzip MogdSharp.zip to a temporary directory using a program such as Winzip, Pkzip, etc.
5. Double click on "setup.exe"
6. Follow the instructions on the screen to complete the installation
7. MOGD# requires the .NET framework 2.0 and will download and install it automatically
After the installation is complete there will be a Matrix Orbital entry under “Start->Programs->Matrix Or-
bital” in the start menu. Click on the ’Mogd Sharp’ entry to run the program.
Be sure to check the information selected in the configuration panel the first time MOGD# is run. Once
this information is entered correctly the program can be used to control all functions of the graphic display.
Matrix Orbital GLK12232-25 5
