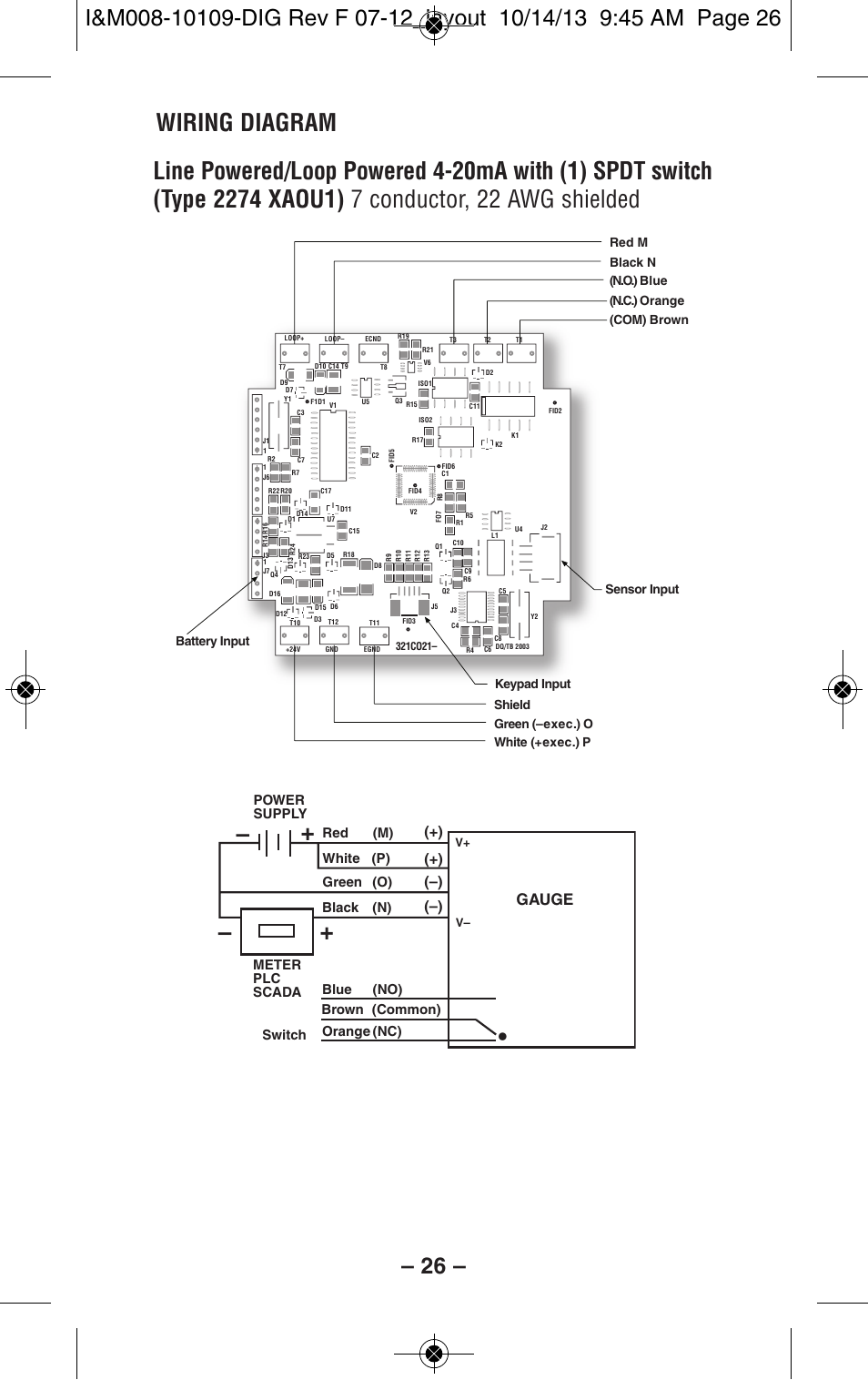

Wiring diagram, Gauge, Power supply – Ashcroft 2274 Digital Industrial Gauge User Manual
Page 26: Meter plc scada, White (p), Red (m) green (o) black (n), Switch blue (no) orange (nc) brown (common)
