Page 39
35
NOTE: Aalborg
7 reserves the right to change designs and dimensions at its sole discretion at any
time without notice. For certified dimensions please contact Aalborg
7.
8.54
(217 mm)
4.00
(101.6 mm)
4.00 (101.6 mm)
3/4-14 NPT
(both sides)
10.47 (266 mm)
7.30 (185.4 mm)
3.00
(76.2 mm)
6.80 (172.7 mm)
1/4-20
UNC-2B 0.35
control
valve
CE
50.00

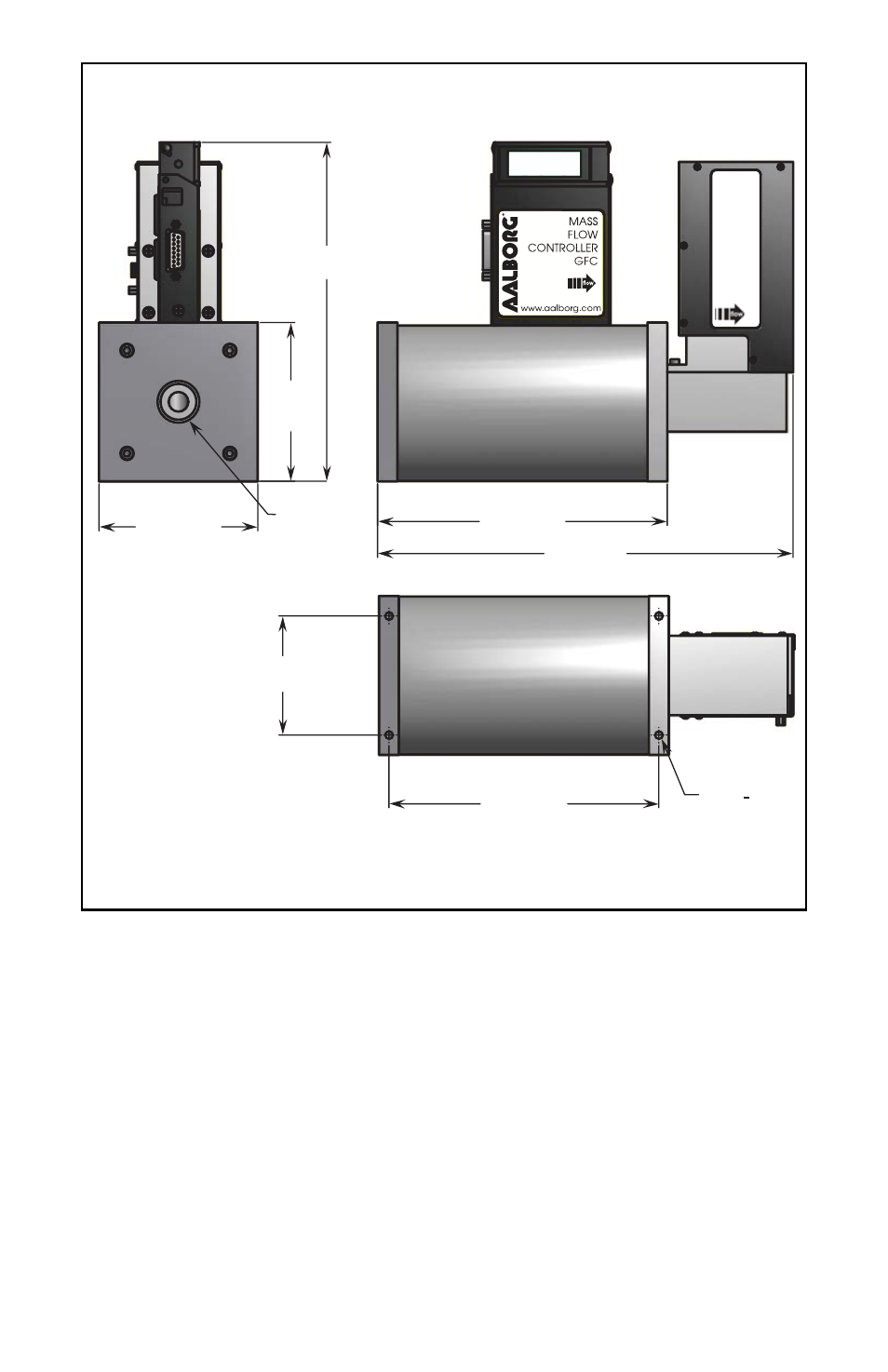

GFC77 MASS FLOW CONTROLLER
